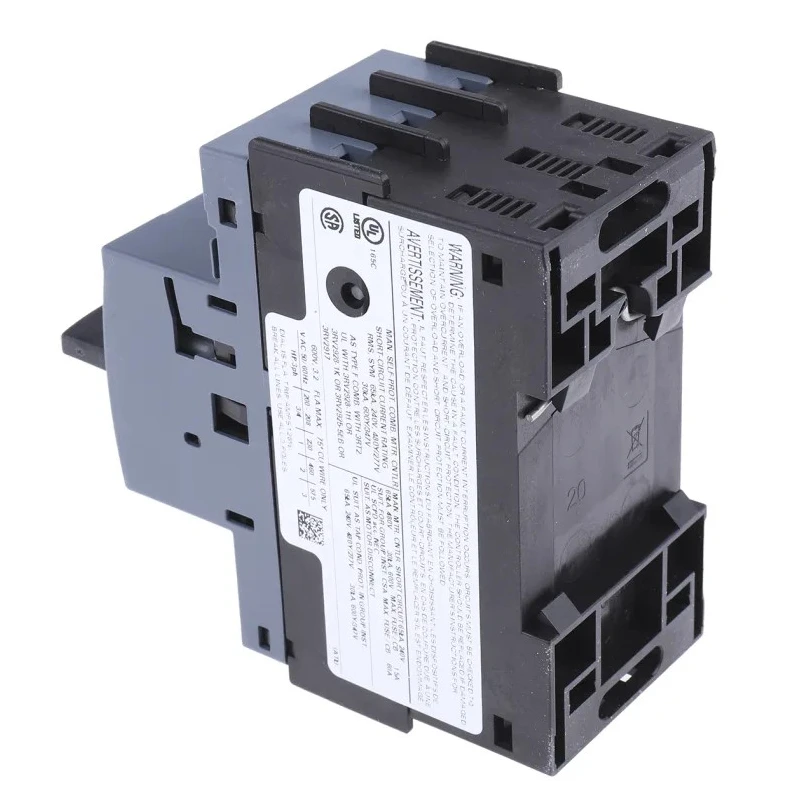

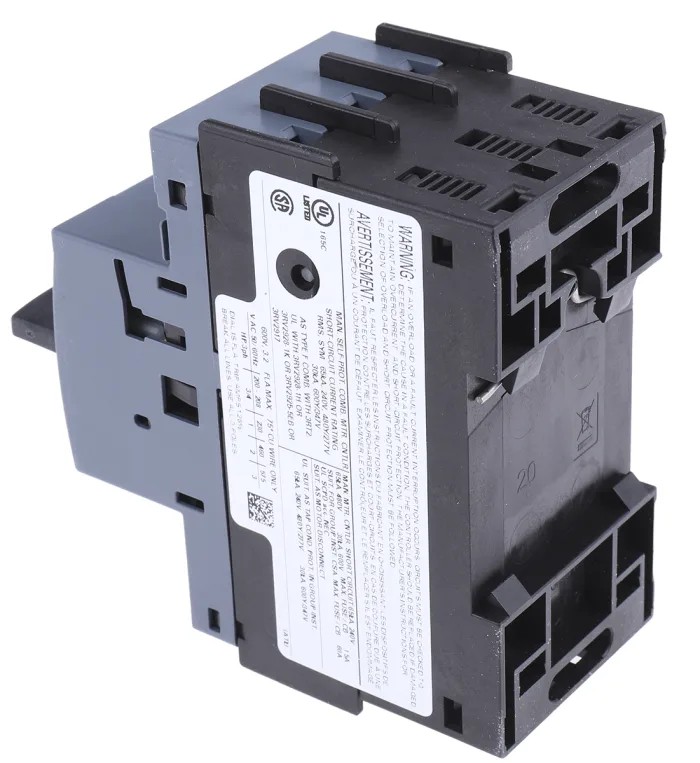

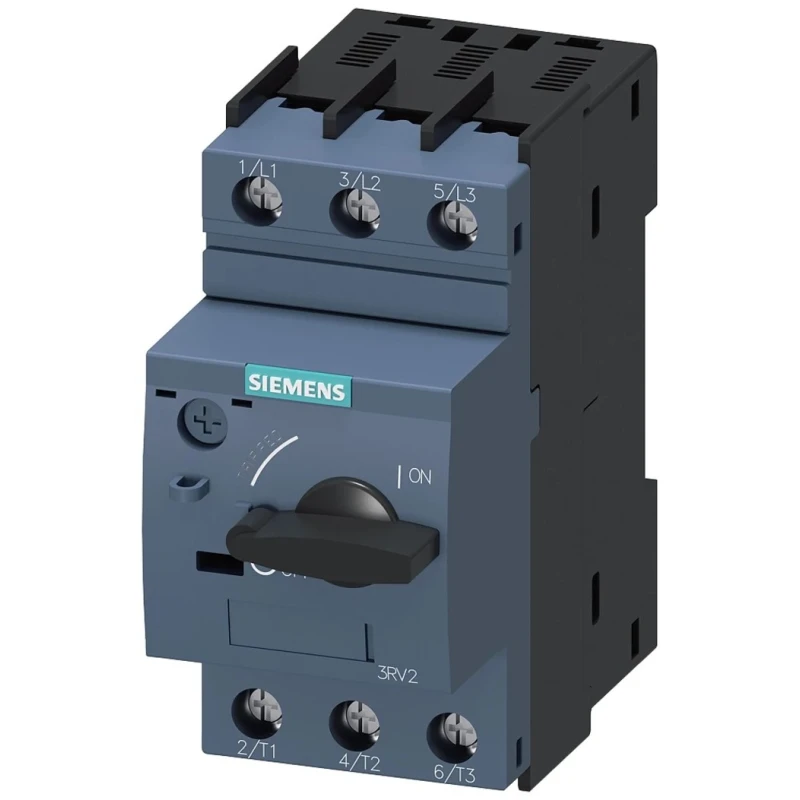

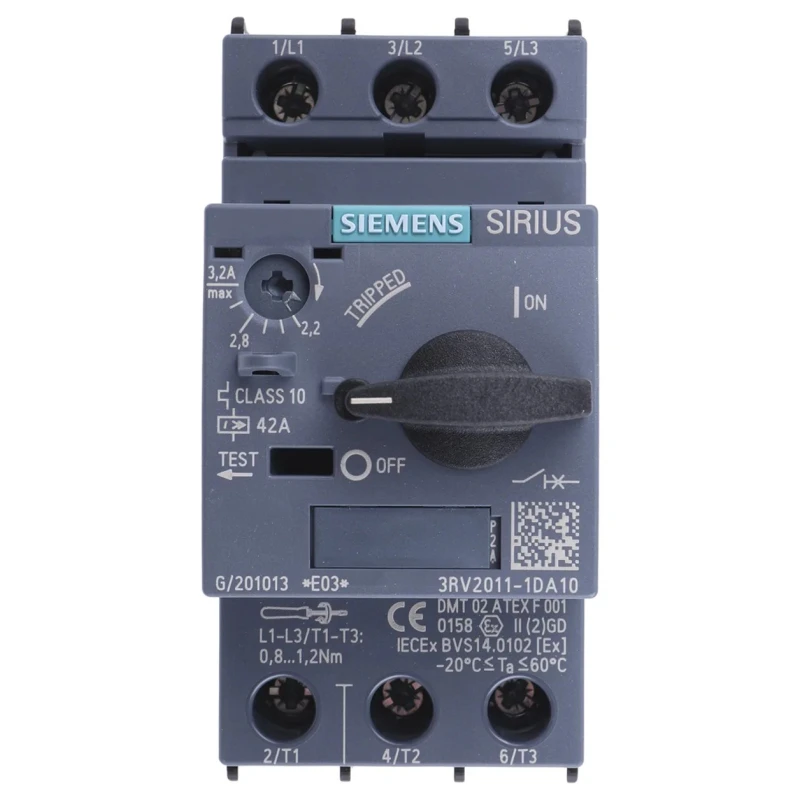

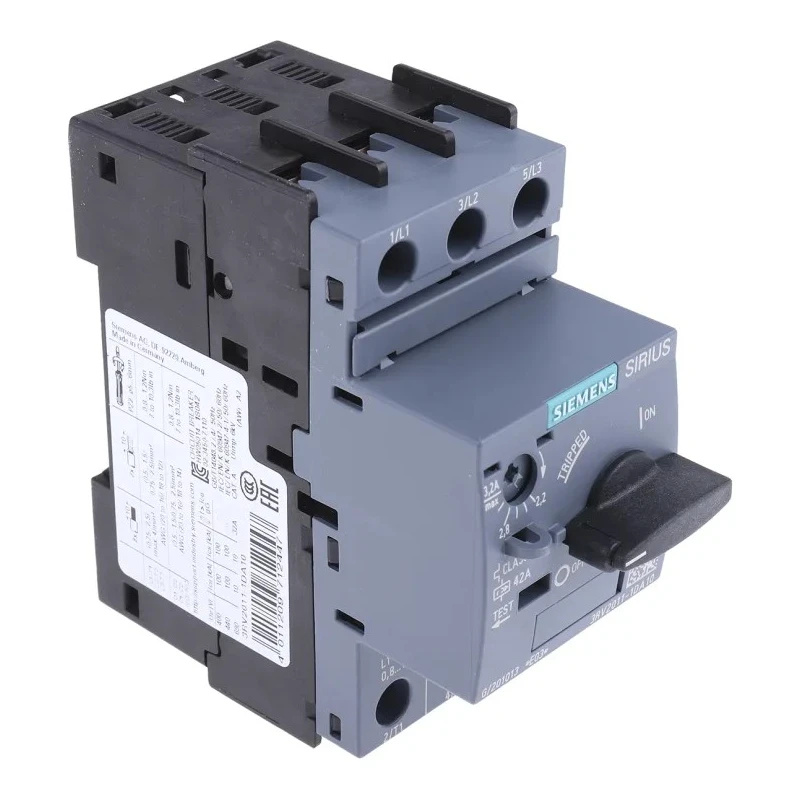

Siemens 3RV2 Series 3 Pole Motor Protection Circuit Breaker, 2.2 & 3.2 A Current Rating, 690V, IP20, -20°C to 3RV2011-1DA10

Siemens 3RV2011-1DA10 is a high-quality Motor Protection Circuit Breaker designed to protect electrical motors from overloads, faults, and phase failures. This 3-pole circuit breaker supports current ratings of 2.2 and 3.2 amps and operates with a supply voltage of 690V, making it suitable for diverse industrial applications such as compressors, mills, and manufacturing equipment.

Featuring a magnetic sensing type and an IP20 ingress protection rating, this circuit breaker is finger-safe and protected against intrusion by objects larger than 12mm, ensuring safe operational conditions. It is capable of functioning reliably in harsh environments with a wide operating temperature range from -20°C to 60°C, allowing versatile deployment in both cold and hot industrial settings.

The compact dimensions of 97 mm height, 45 mm width, and 91 mm depth allow the device to fit into limited installation spaces without compromising performance. It includes top and bottom electrical connectors for flexible mains power connections. The circuit breaker boasts a robust mechanical lifespan of 100,000 operations, ensuring long-term reliability and reduced maintenance needs.

Installation is straightforward with DIN rail mounting options using screws or snap-on technology, enabling secure and tool-efficient setup. Siemens' 3RV2 series guarantees compliance with international standards, including VDE, UL, UKCA, RoHS, CE, CCC, ATEX, ABS, CSA, EAC, and LRS, affirming safety, quality, and global acceptance.

Equipped with magnetic sensing type for reliable operation. Compact design with dimensions 97mm (H) x 45mm (W) x 91mm (D) for space-saving installation. Wide operating temperature range from -20°C to 60°C for industrial environments.

IP20 rated for finger safety and protection against objects larger than 12mm. Supports 3 poles for effective three-phase motor protection. Complies with multiple standards including VDE, UL, UKCA, RoHS, CE, CCC, ATEX, ABS, CSA, EAC, and LRS.

Mechanical lifespan of up to 100,000 operations ensuring durability. Suitable for mounting on DIN rail using screws or snap-on technology for easy installation.

This Motor Protection Circuit Breaker is ideal for industrial, manufacturing, electrical, and automation sectors requiring secure motor protection. Designed and manufactured in Germany, it represents Siemens' commitment to quality and engineering excellence.
