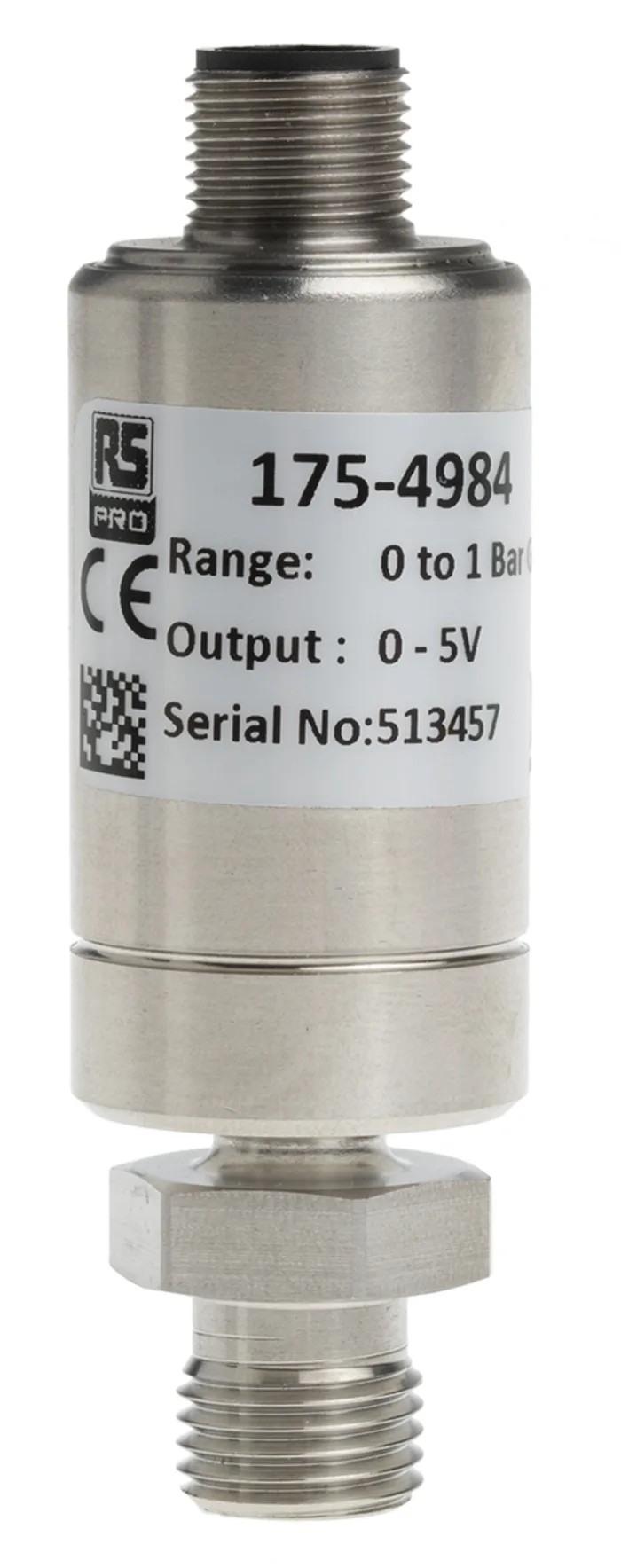

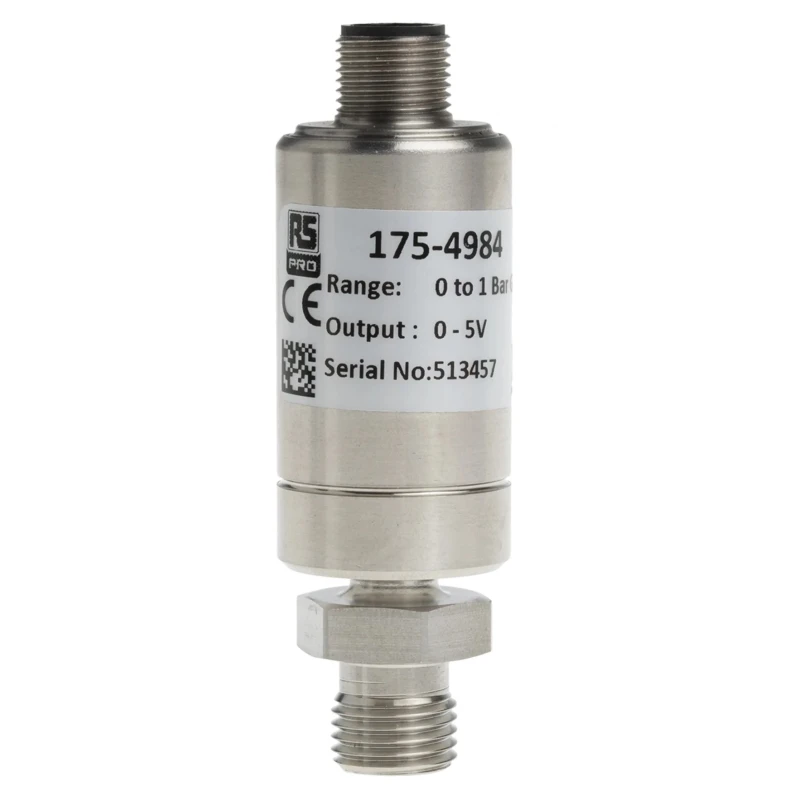

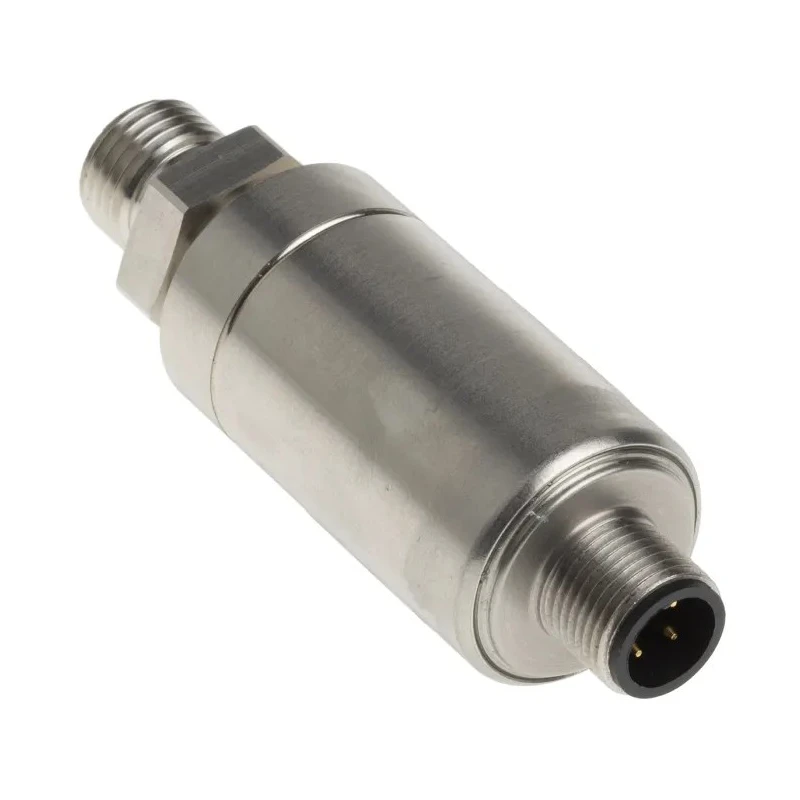

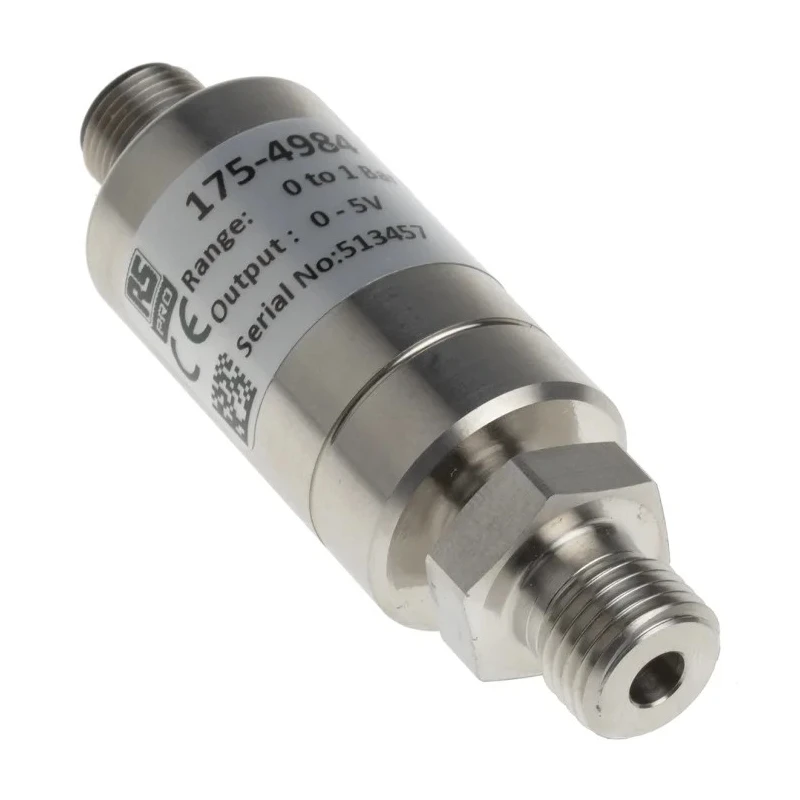

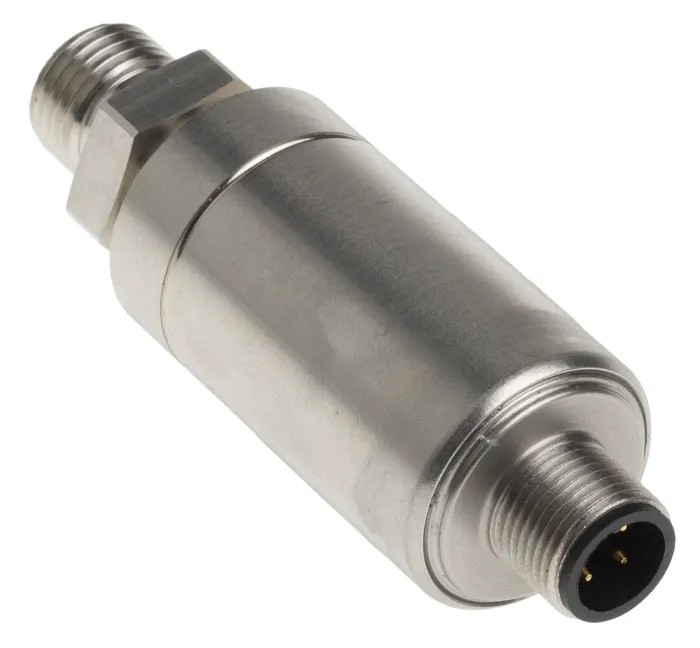

RS PRO Industrial Threaded Pressure Sensor 0-1 bar Relative Reading 0.5 V or 4 to 20 mA Output 9-32V DC IP67 175-4984

The RS PRO 175-4984 pressure sensor is a high-quality industrial-grade device designed for accurate relative pressure measurements within the 0 to 1 bar range. Its stainless steel 316L housing combined with Viton O-ring seals ensures durability and suitability for harsh environments. The sensor utilizes a piezo-resistive thick film ceramic sensing element offering excellent media compatibility, including stainless steel and ceramic media.

This sensor delivers analog output signals of 0.5 V or 4 to 20 mA and operates reliably over a wide voltage supply range of 9 V to 32 V DC. Its compact, rugged design meets IP67 ingress protection standards, providing resistance to dust and water, which is critical in industrial settings. With a high accuracy of ±0.25% full scale BFSL, it ensures precision suitable for automation, process control, temperature testing, and industrial measurement applications.

The threaded BSP 1/4 mounting simplifies installation, making it a preferred choice for demanding pneumatic and hydraulic pressure sensing tasks. The sensor includes 4-pin connector and terminal types for straightforward signal wiring and quick integration into existing control systems.

Ideal applications for the RS PRO 175-4984 pressure sensor include industrial automation, process monitoring, HVAC systems, and water treatment plants where reliable and stable pressure measurement is essential. Its low susceptibility to electrical noise and resistance in signal wires improves performance in long-distance transmission environments.

The electronics incorporate a microprocessor-based amplifier requiring no adjustments and offering thermal compensation for stable readings over the entire operating temperature range of -20°C to 80°C. Additionally, the product is CE certified, ensuring compliance with relevant European safety standards.

Industrial-grade IP67 rated stainless steel housing ensures robust protection. Accurate pressure sensing with ±0.25% full scale BFSL accuracy. Wide operating temperature range from -20°C to 80°C suits diverse environments.

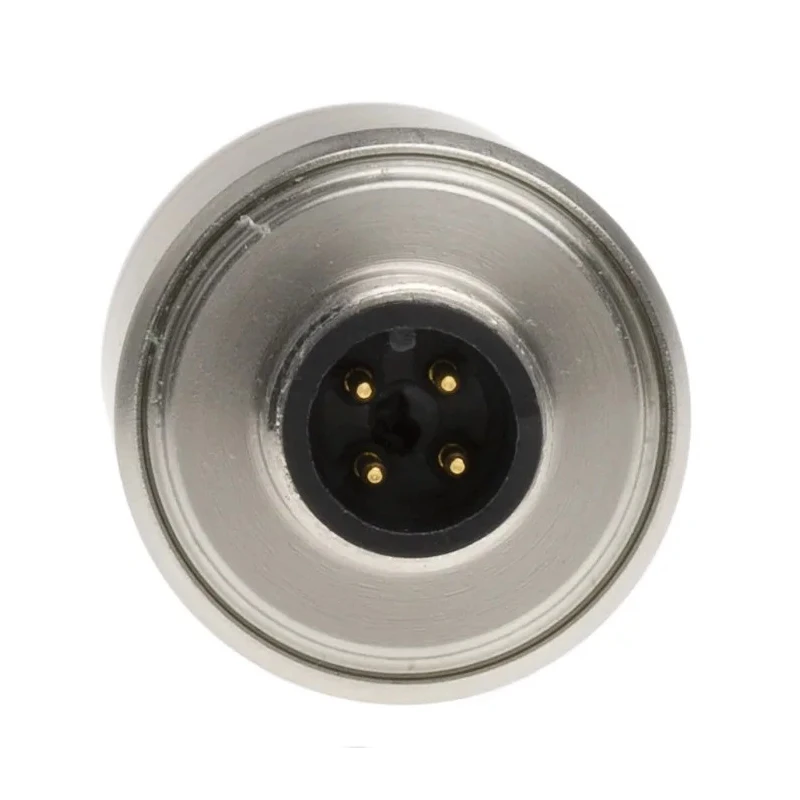

Equipped with 4-pin connector for easy integration and BSP 1/4 threaded mount. Voltage supply range from 9 V to 32 V DC enables flexible power options. Designed with piezo-resistive thick film ceramic sensor for excellent media compatibility.

CE compliant and suitable for automation, process control, and industrial measurement. Compact form factor minimizes installation space requirements. Explore the RS PRO range of Pressure Sensors and industrial automation products at EnvMart for reliable performance in your projects.
