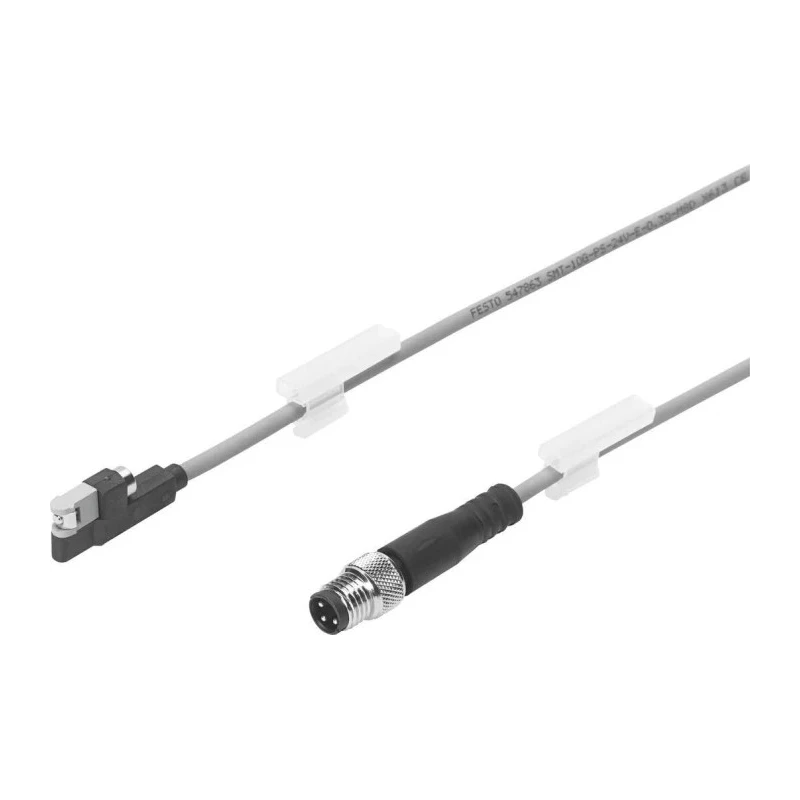

Festo Cable with Plug Pneumatic Position Detector, IP68, IP65 30V dc, SMT-10G-PS-24V-E-0,3Q-M8D

Festo SMT-10G-PS-24V-E-0,3Q-M8D Cable with Plug Pneumatic Position Detector offers reliable and accurate object position sensing for industrial automation systems. Designed to withstand challenging environments, this sensor features a reinforced polyamide housing coupled with stainless steel and brass components, delivering excellent durability and resistance to dirt, moisture, and corrosion. The device operates at 30V dc with a maximum switching capacity of 2.8W, suitable for controlling pneumatic equipment with precise switch activation.

The unit is IP68 and IP65 rated, ensuring protection against dust ingress and water jets, making it ideal for wet or contaminated industrial settings. Its short 0.3 m cable minimizes cable clutter, especially beneficial in automated or robotic energy chain configurations. The screw-type cable connection provides secure locking to prevent accidental disconnection during operation.

This pneumatic position detector employs a magnetoresistive measurement principle, enabling it to detect objects reliably even in polluted or vibrating environments. The incorporated LED indicator delivers at-a-glance status feedback for easier maintenance and troubleshooting. Featuring corrosion-resistant gold-plated contacts, the device guarantees consistent and clear signal transmission.

With an operating temperature range from -20°C to 70°C, this sensor is suitable for diverse manufacturing, food and beverage production, and robotics sector applications. Its rugged PU cable sheath resists UV, chemical, and abrasion damage, further extending its service life in demanding conditions.

Key features include a bipolar contact output with PNP and NPN switching actions and compatibility with energy chains and robotic systems. The compact and robust design ensures seamless integration and reliable operation within pneumatic cylinder sensor assemblies.

Equipped with IP68 and IP65 rated sealing for resistance against dust and water. Operates at 30V dc with a maximum switching capacity of 2.8W. Houses a rugged construction using polyamide, stainless steel, brass, and specialized elastomers.

Features a LED indicator for status monitoring. Includes a durable 0.3 m cable with screw connection to prevent loosening. Capable of bending over 300,000 times without loss of functionality. Supports bipolar contact output with PNP and NPN switching actions.

Suitable for applications with energy chains and robotics. Functions reliably from -20°C to 70°C operating temperature range. Employs a magnetoresistive proximity sensor principle for robust object detection in harsh environments.

Corrosion-resistant gold-plated contacts ensure clear signal transfer.

Festo products are widely used across industrial automation, manufacturing, and robotics sectors. This pneumatic position detector supports precision and reliability to optimize your fluid power tool setups and pneumatic cylinder sensing needs. Explore more Festo pneumatic sensors and position detection solutions at EnvMart.
