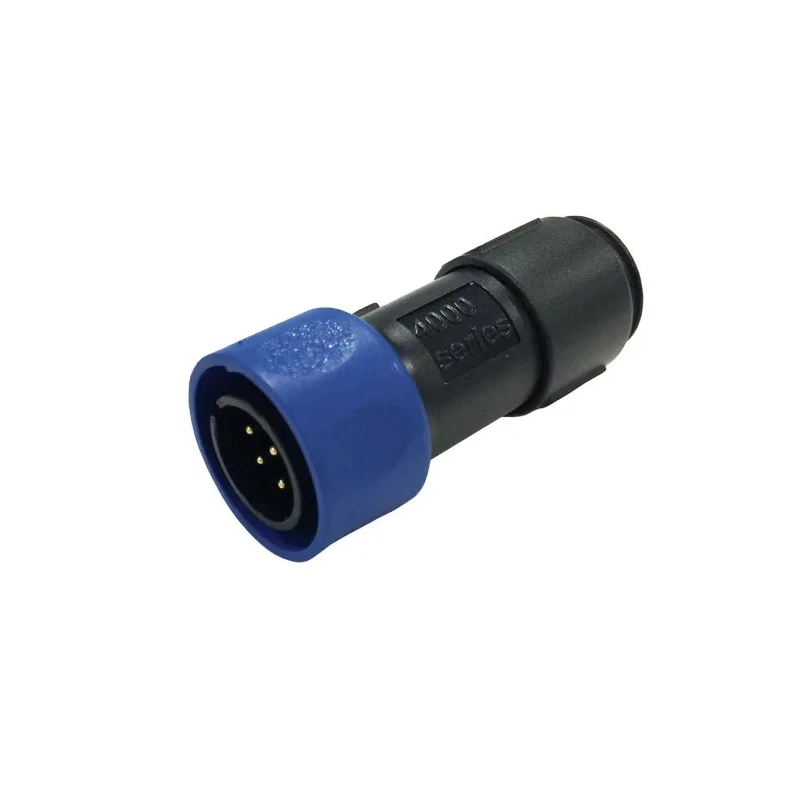

Bulgin Industrial Circular Connector Miniature Cable Plug, Female, 6 Contacts, IP68/IP66/IP69K Rated, 600V PXP4010/06S/5055

Bulgin PXP4010/06S/5055 is a robust industrial circular connector designed for power and data connections in harsh environments. This miniature cable plug features 6 female contacts, delivering power ratings up to 13A and supporting operation up to 600V. The connector is part of the Buccaneer 4000 series, renowned for its compact form factor combined with high performance and durability.

The housing is manufactured from flame-retardant polymer, providing excellent mechanical protection and environmental resistance. Its IP68, IP66, and IP69K ratings ensure high levels of ingress protection against dust, water, and high-pressure water jets, making it suitable for industrial, manufacturing, HVAC, and outdoor applications.

This connector supports a straight orientation with a ¼ turn locking ring for secure mating. It is designed to mate with flex in-line or panel mounting versions, enabling versatile installation. The gold-plated copper contacts guarantee superior conductivity and corrosion resistance, essential for reliable electrical connections.

The temperature operating range from -40°C to 120°C ensures dependable functionality in extreme conditions. Color-coded O-rings and washers facilitate easy identification and assembly. Suitable cable diameters range from 3 to 7mm over the coupling ring diameter of 19.7mm, offering flexibility for various wiring requirements.

Contacts are supplied separately except for specific PCB mounting versions, allowing customization to particular application needs. Sealing caps are available for added protection.

Bulgin connectors are widely used in industrial automation, manufacturing equipment, water treatment plants, transportation systems, and other industrial markets requiring rugged, reliable electrical interconnections.

Designed for power and data transfer in industrial environments. Features a miniature connector size with a 6 pole female contact configuration. Rated current up to 13A with maximum voltage of 600V to support demanding applications.

Housing made of polymer with gold-plated copper contacts for reliable conductivity. Supports quick connect mating type with straight orientation and ¼ turn locking ring. Operates reliably between -40°C and 120°C temperature range.

Complies with Buccaneer 4000 series standards, ideal for harsh industrial use. Flexible cable range compatibility from 3 to 7 mm diameter over the coupling ring. Provides excellent sealing with colour-coded O-rings and washers for easy identification.

Contacts are supplied separately except for PCB mounting versions. Explore more Industrial Circular Connectors and robust power connectors suitable for demanding technical applications on EnvMart.
