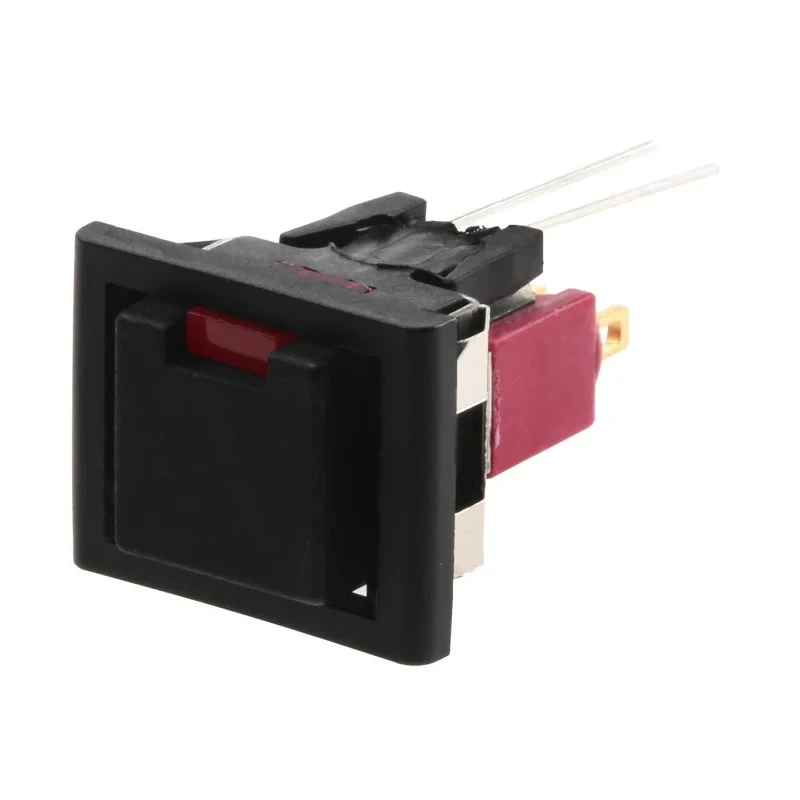

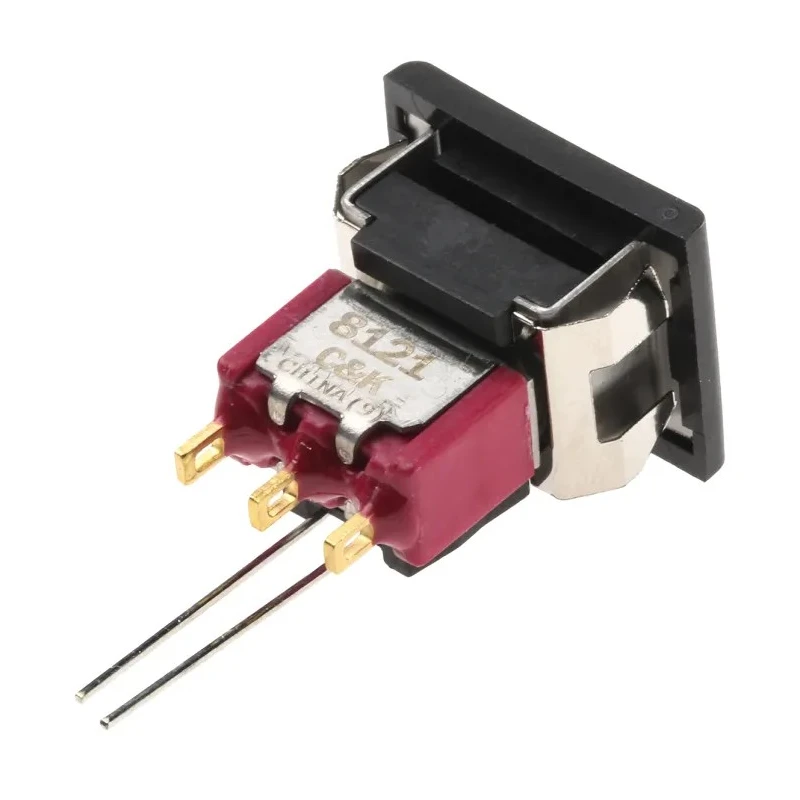

C & K 8020 Series Illuminated Push Button Switch Momentary Panel Mount SPDT 1A 28V dc Red LED 15.2x12.7mm 8121J85ZGE223

Name: C & K 8020 Series Illuminated Push Button Switch Momentary Panel Mount SPDT 1A 28V dc Red LED 15.2x12.7mm 8121J85ZGE223
Brand: C & K
SKU: 151667
Price: 21.73 USD
Availability: InStock



Category Push Button Switches & Components Brand C & K Condition New

Specifications

Country of Origin	India
Brand	C & K
Model	8121J85ZGE223
Mount Type	Panel
Series	8020
Maximum Operating Temperature	75°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	15.2 x 12.7 mm
Terminal type	Solder
Standards/Approvals	CSA, RoHS, UR
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	28V dc
Actuator Style	Square
Switch Contact Current	1A

Key Features

Features a black square actuator with positive tactile feel for reliable operation.
Designed for panel mounting with a 15.2 x 12.7 mm cutout dimension.
Switch contacts are gold-plated break-before-make type rated at 1 A and 28 V dc.
Illuminated with a red LED for clear visual status indication.
Operating temperature range from minus 30°C to 75°C for versatile environmental conditions.
Equipped with solder terminals for secure electrical connections.
The switch provides front mount snap-in installation for ease of assembly.
Compliance with UL, CSA, RoHS, and UR standards ensures safety and reliability.

Product Description

The C & K 8121J85ZGE223 is part of the 8020 Series Illuminated Push Button Switches designed for industrial and electrical applications requiring momentary switch function and visual indication.

This panel mount switch features a black square actuator with a positive tactile feel, providing reliable user feedback. The illuminated model includes a rectangular red LED that is clearly visible for status signalling.

The switch is rated for a contact current of 1 A at 28 V dc with gold-plated break-before-make contacts that ensure durable and stable operation. Its compact 15.2 x 12.7 mm panel cutout size accommodates standard industrial control setups.

Suitable for harsh environments, it operates reliably in temperatures ranging from -30°C to 75°C. The solder terminal connection facilitates secure wiring integration in various control panels.

Installation is simplified by the front mount snap-in design, making it an efficient choice for industrial machinery, electrical control panels, automation systems, and other laboratory or manufacturing equipment.

Features a black square actuator with positive tactile feel for reliable operation. Designed for panel mounting with a 15.2 x 12.7 mm cutout dimension. Switch contacts are gold-plated break-before-make type rated at 1 A and 28 V dc.

Illuminated with a red LED for clear visual status indication. Operating temperature range from minus 30°C to 75°C for versatile environmental conditions. Equipped with solder terminals for secure electrical connections.

The switch provides front mount snap-in installation for ease of assembly. Compliance with UL, CSA, RoHS, and UR standards ensures safety and reliability.

This push button switch is ideal for use in industrial control panels, electrical distribution boxes, automation devices, HVAC systems, laboratory equipment, and manufacturing machinery, offering durable, compliant performance with visual feedback.
