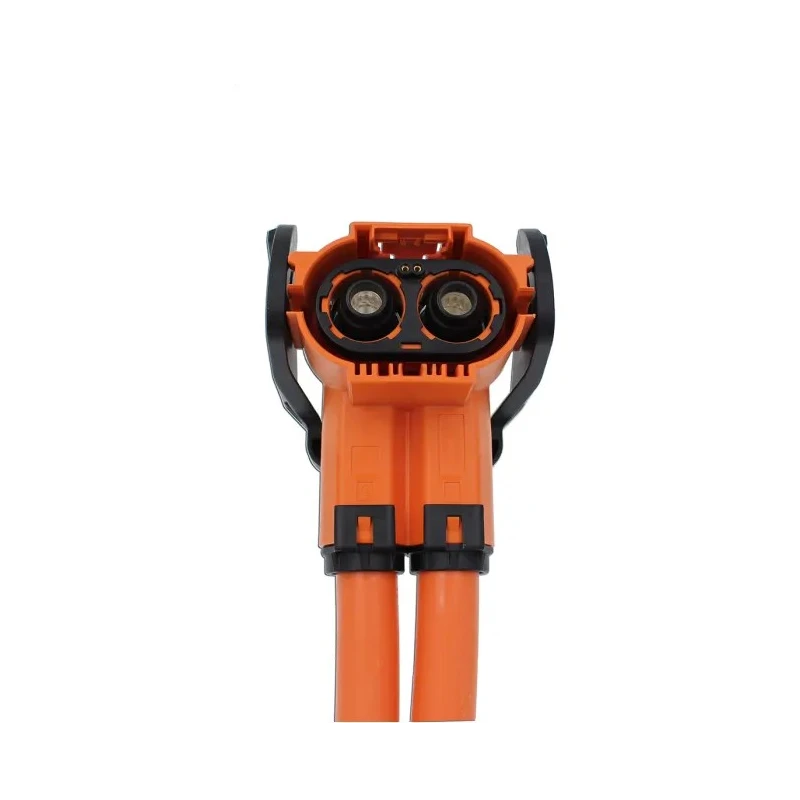

Amphenol Industrial HVSL800 Type EV Connector Female 180A 1000V Crimp Termination Right Angle HVSL800

Amphenol Industrial HVSL800 EV Connector Female HVSL800 is a high-performance electrical connector designed for electric vehicle (EV) applications, capable of handling currents up to 180A and operating at voltages up to 1000V. This Type EV Connector provides a robust and reliable interface for power and signal interconnections in advanced xEV systems.

Constructed with copper alloy contacts plated with silver, this connector ensures excellent electrical conductivity and corrosion resistance. The thermoplastic housing offers durability and protection against environmental factors, supported by IP69K and IP67 ingress protection ratings, making it suitable for use in demanding automotive and industrial environments.

The connector supports a wire size of 50mm² and features crimp termination for secure cable attachment. Its right angle design and Type A key system facilitate easy and precise installation, reducing the risk of misconnection. The integrated internal High Voltage Interlock Loop (HVIL) enhances safety, providing touch-proof features that require no tools to safely disengage the connector.

Designed specifically for applications such as batteries, inverters, junction boxes, and power distribution boxes within xEV devices, the HVSL800 series connector complies with EN 60664-1 standards ensuring reliable electrical insulation coordination. Its height of 94.6mm, depth of 59.7mm, and width of 80.9mm offer a compact form factor suitable for constrained spaces.

This renewable energy solution connector is coloured orange for easy identification in wiring harnesses, with a pin diameter of 8mm and cable mount type for versatile deployment in high power connector systems. The product is manufactured in China and is classified as new condition.

Supports high-current EV applications with up to 180A rating. Robust IP69K and IP67 rated thermoplastic housing for harsh environments. Copper alloy contacts with silver plating for superior conductivity. Crimp termination ensures durable and secure cable connections.

Right angle orientation and Type A key provides precise mating. Integrated HVIL and touch-proof design improve safety and ease of use. Operates reliably between -40°C and 125°C temperature range. Complies with EN 60664-1 standard for insulation coordination.

Compact dimensions suitable for electric vehicle power systems. Explore the Electronics & Electricals category on EnvMart for more high-quality connectors and EV components designed for industrial and commercial use.
