Celduc SC8 Series Solid State Relay Panel Mount 12 A Load 280 Vrms Load 240V AC Control SC841910

Free Delivery in India | Lowest Global Shipping Charges

Celduc SC8 Series Solid State Relay Panel Mount 12 A Load 280 Vrms Load 240V AC Control SC841910

Name: Celduc SC8 Series Solid State Relay Panel Mount 12 A Load 280 Vrms Load 240V AC Control SC841910
Brand: Celduc
SKU: 150962
Price: 91.36 USD
Availability: InStock



Category Solid State Relay Brand Celduc Condition New

Specifications

Country of Origin	France
Brand	Celduc
Height	27mm
Length	58.2mm
Model	SC841910
IP Rating	IP20
Width	44.5mm
Mount Type	Panel
Output type	Triac
Series	SC8
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Switching Function	Zero Cross Switching
Maximum Load Current	12A
Standards/Approvals	UR
Minimum Load Voltage	230V
Minimum Control Voltage	90V ac/dc
Maximum Control Voltage	240V ac
Off State Leakage Current	3mA

Key Features

Operates with zero cross switching for silent and efficient performance.
Supports maximum load current of 12 amperes at 280 Vrms load voltage.
Mount type is panel mount featuring screw terminals for secure installation.
Functions with minimum control voltage of 90V AC/DC and maximum control voltage of 240V AC.
Rated for operating temperatures from -40°C to 100°C, suitable for harsh environments.
Complies with UR standards for quality and reliability.
Output type is Triac, providing effective control of AC loads.
Featuring low off-state leakage current of 3mA to reduce power loss.

Product Description

Celduc SC8 Series Solid State Relay model SC841910 offers reliable and silent switching for industrial electrical control applications. It supports a maximum load current of 12 amperes and a maximum load voltage of 280 Vrms. The device is designed for panel mounting with screw-type terminals to ensure secure and convenient electrical connections.

This solid state relay incorporates zero cross switching technology, minimizing electrical noise and stress on the connected loads. Its Triac output type provides smooth control of AC circuits, making it suitable for heating elements, motor controls, solenoids, and other resistive or inductive loads.

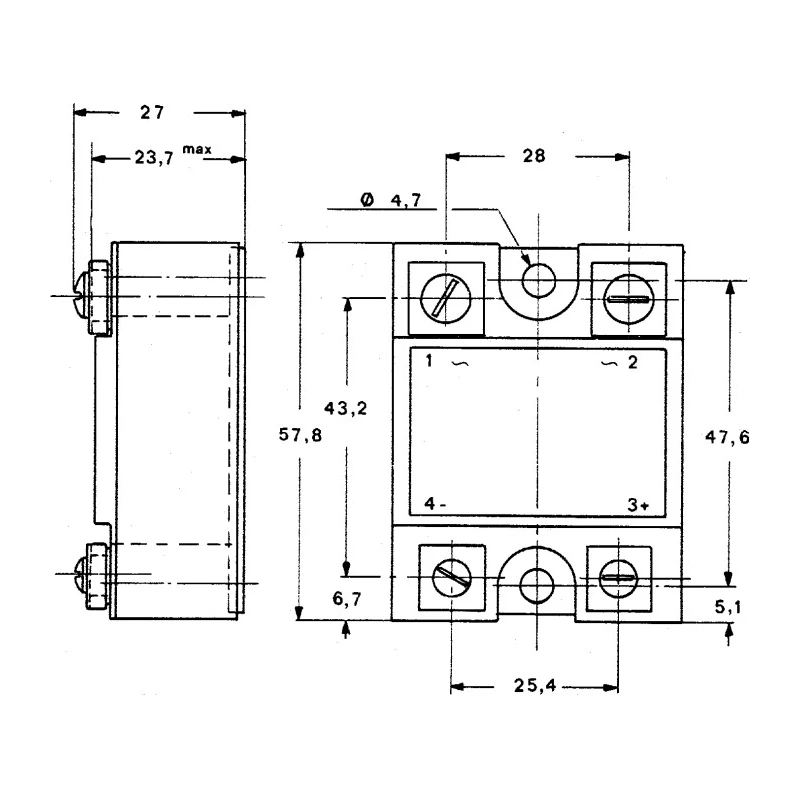

The relay operates across a broad temperature range from -40°C up to 100°C, enabling use in demanding industrial environments. The control voltage range accommodates 90V AC/DC minimum to 240V AC maximum, facilitating versatile control inputs. The compact dimensions of 58.2mm length, 44.5mm width, and 27mm height aid in space-efficient panel integration.

Operates with zero cross switching ensuring silent and reliable operation. Supports a load current capacity of 12 amperes at 280 Vrms load voltage. Panel mount installation with screw terminals for robust and secure wiring.

Wide operating temperature range of -40°C to 100°C suitable for harsh conditions. Triac output type provides effective AC load control. Complies with UR approval standards guaranteeing quality and safety. Low off-state leakage current of 3mA reduces standby power loss.

Compact dimensions for easy integration in control panels. Designed and manufactured in France with high-quality standards.

This solid state relay is ideal for industrial automation, HVAC systems, motor control, and heating applications requiring silent switching with high reliability. It is well suited for furnaces, presses, extruders, and home automation systems, providing efficient and long-lasting control performance.
