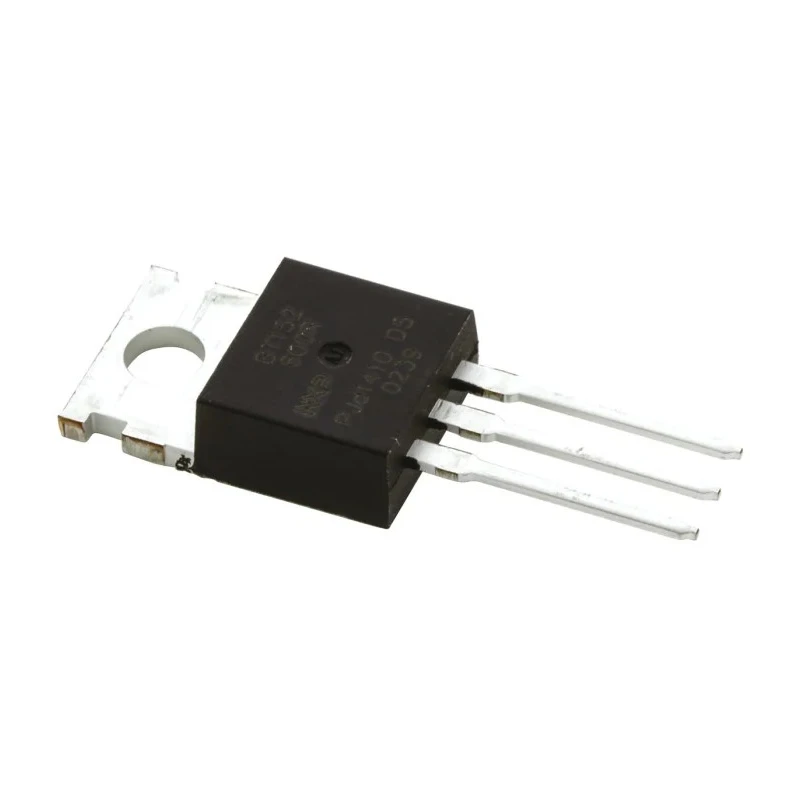

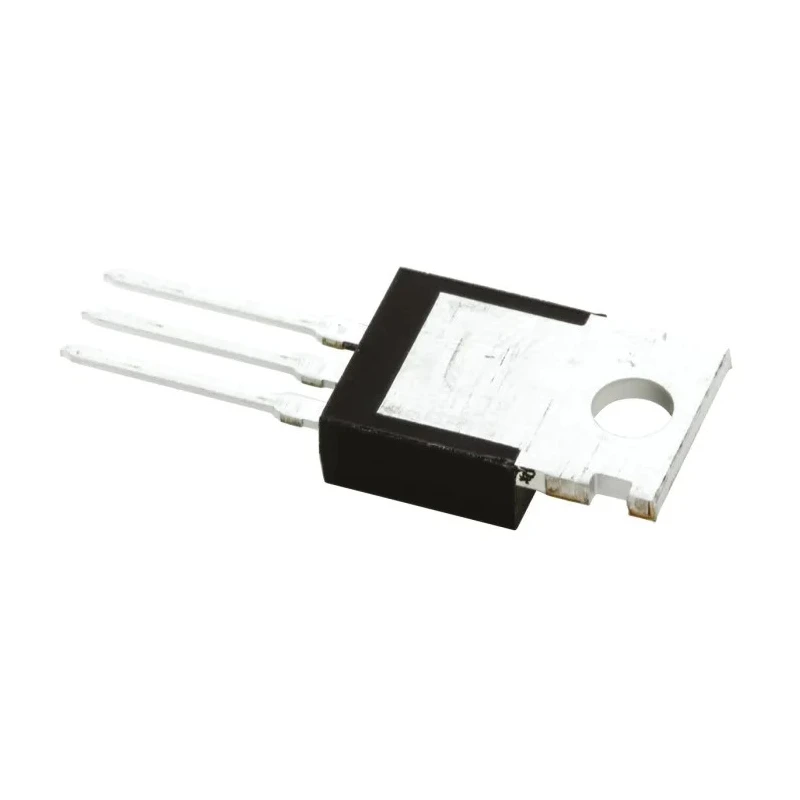

WeEn Semiconductors Co., Ltd Thyristor SCR 650 V 13 A TO-220 Package BT152-600R,127
Specifications
| Country of Origin | China |
|---|---|
| Brand | WeEn Semiconductors Co., Ltd |
| Model | BT152-600R,127 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 13A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 650V |
| Surge Current Rating | 220A |
| Maximum Gate Trigger Current Igt | 32mA |
| Maximum Holding Current Ih | 60mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 1.75V |
| Repetitive Peak Off-State Current | 1mA |
Key Features
- High bidirectional blocking voltage capability.
- Surge current rating of 220 A for transient peak loads.
- Maximum gate trigger current of 32 mA ensures reliable triggering.
- Compact TO-220 package allows easy mounting through hole.
- Operating temperature range from -40°C to 125°C suitable for industrial conditions.
- Low peak on-state voltage of 1.75 V reduces conduction losses.
- Designed for phase control applications with high thermal cycling performance.
- Three pins configuration with robust SCR type semiconductor design.
Product Description
WeEn Semiconductors Co., Ltd BT152-600R,127 is a silicon-controlled rectifier (SCR) thyristor designed for high-performance phase control applications in industrial and electronic systems. Featuring a TO-220 plastic package, this device offers reliable high bidirectional blocking voltage of 650 V and can sustain average on-state current of 13 A, with surge current capability up to 220 A for transient operations.
The SCR thyristor has a three-pin through-hole mount configuration, enabling straightforward installation in power electronics and switching circuits. It supports robust thermal cycling performance with operating temperatures ranging between -40°C to 125°C, ensuring durability in demanding environments.
This device exhibits a maximum gate trigger current of 32 mA and a gate trigger voltage of 1.5 V, facilitating precise triggering control. Its low peak on-state voltage of 1.75 V minimizes conduction losses and enhances efficiency. The holding current maximum of 60 mA provides stable bistable switching behavior.
Manufactured in China, the BT152-600R,127 thyristor is optimal for applications including power control, motor drives, and industrial automation where controlled rectification and phase control are critical.
High bidirectional blocking voltage capability. Surge current rating of 220 A for transient peak loads. Maximum gate trigger current of 32 mA ensures reliable triggering. Compact TO-220 package allows easy mounting through hole.
Operating temperature range from -40°C to 125°C suitable for industrial conditions. Low peak on-state voltage of 1.75 V reduces conduction losses. Designed for phase control applications with high thermal cycling performance.
Three pins configuration with robust SCR type semiconductor design. Repetitive peak reverse voltage of 650 V provides strong blocking capability. Maximum holding current of 60 mA ensures device bistability. Explore our Semiconductor and Thyristor selections at EnvMart for reliable industrial electronic components suitable for power control and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 125°C.
It has a surge current rating of 220 A for transient peak loads.
This thyristor comes in a TO-220 plastic package, allowing for easy through-hole mounting.
The rated average on-state current is 13 A.
The BT152-600R,127 has a bidirectional blocking voltage capability of 650 V.
The maximum gate trigger current is 32 mA, ensuring reliable triggering.
The maximum holding current is 60 mA, which provides stable bistable switching behavior.
The peak on-state voltage is 1.75 V, which helps reduce conduction losses.
The operating temperature range is from -40°C to 125°C, suitable for industrial conditions.
This model features a three-pin configuration.
It is a silicon-controlled rectifier (SCR) type thyristor.
This thyristor is designed for phase control applications, including power control and motor drives.
