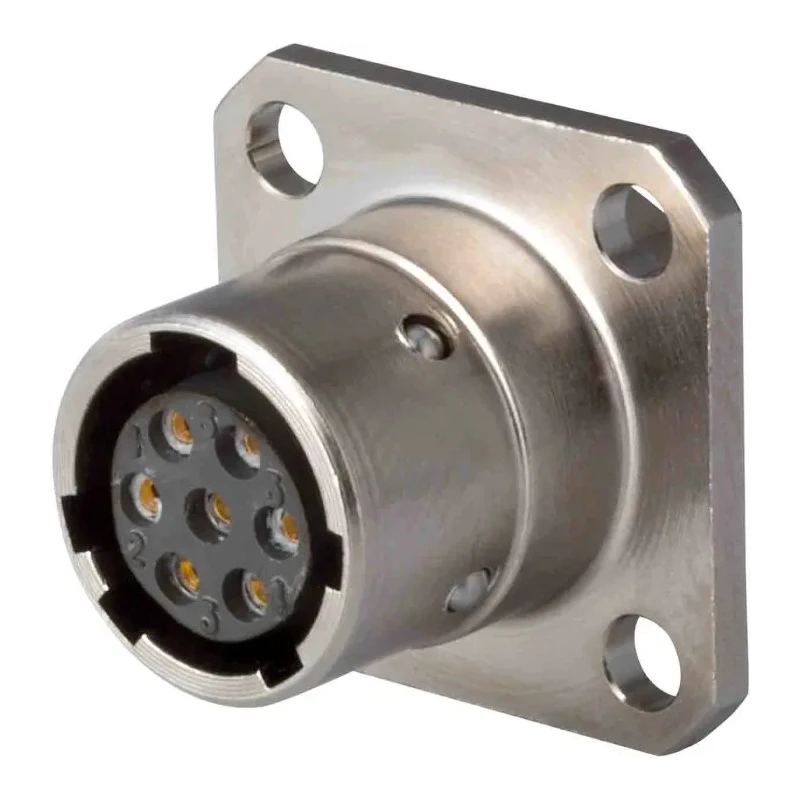

Jaeger Miniature Circular Connector, 7 Contacts, Panel Mount Socket, Male, IP65, 2500V, 5A, Crimp Termination 7611 070 06

Free Delivery in India | Lowest Global Shipping Charges

Jaeger Miniature Circular Connector, 7 Contacts, Panel Mount Socket, Male, IP65, 2500V, 5A, Crimp Termination 7611 070 06

Name: Jaeger Miniature Circular Connector, 7 Contacts, Panel Mount Socket, Male, IP65, 2500V, 5A, Crimp Termination 7611 070 06
Brand: Jaeger
SKU: 150657
Price: 50.23 USD
Availability: InStock



Category Industrial Circular Connector Brand Jaeger Condition New

Specifications

Country of Origin	France
Voltage	2500V
Brand	Jaeger
Orientation	Straight
Current	5A
IP Rating	IP65
Mount Type	Panel Mount
Contact Material	Brass
Series	7611
Termination Type	Crimp
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Pole Format	7
Contact Plating	Gold
Number of Contacts	7
Contact Gender	Male
Shell Size	B00
Mating Type	Push Pull
Connector Size	Miniature
Plug/Socket	Socket
Nominal contact diameter	0.76 mm (rating 22D)

Key Features

Supports seven gold-plated brass contacts for reliable signal transmission.
Rated for a current of 5 amperes and voltage up to 2500 volts.
Panel mount design with push-pull mating ensures secure and easy connection.
Operates efficiently between -40°C and 100°C for industrial environments.
Crimp termination type enables reliable and durable contact installation.
Male contact gender socket with miniature B00 shell size for compact applications.
Provides straight orientation with insulation ensuring safety and performance.
Designed for industrial and electronic component connectivity demands.

Product Description

Jaeger 7611 070 06 is a miniature circular connector specifically designed as a panel mount socket with male contacts. It boasts an IP65 rating, protecting against dust and low pressure water jets, suitable for industrial and electronic applications requiring high reliability and durability.

This product features seven gold-plated brass contacts that enhance conductivity and corrosion resistance. It supports a nominal contact diameter of 0.76 mm, rated for 22D, ideal for signal and power transmission at currents up to 5 amperes and voltages up to 2500 volts. The crimp termination method provides secure and stable contact installation.

Its push-pull mating type ensures quick and effective connection and disconnection, minimizing assembly time while guaranteeing retention. With operating temperature ranges from -40°C to 100°C, it meets the demands of harsh industrial environments.

The shell size B00 and miniature connector size contribute to compact and high-density connector configurations. This connector series 7611 is designed following the "Miniature HD" standard, providing a high-density contact arrangement with reliable mechanical and electrical performance.

Seven gold-plated brass contacts ensure longevity and excellent conductivity. Panel mount assembly with push-pull locking for secure fitting. Temperature resistant from -40°C to 100°C for diverse conditions. Supports current ratings of 5A at voltages up to 2500V suitable for industrial signals.

Crimp termination offers strong mechanical and electrical contact connections. IP65 rating offers protection against dust ingress and water jets. Compact design with miniature size B00 shell and straight orientation. French origin manufacturing assures quality and compliance with IEC standards.

This Jaeger circular connector is ideal for industrial tools, electronic instruments, automation equipment, and other demanding environments where robust, high-density electrical connections are required. It fits applications in manufacturing, control systems, robotics, and many other technical fields.
