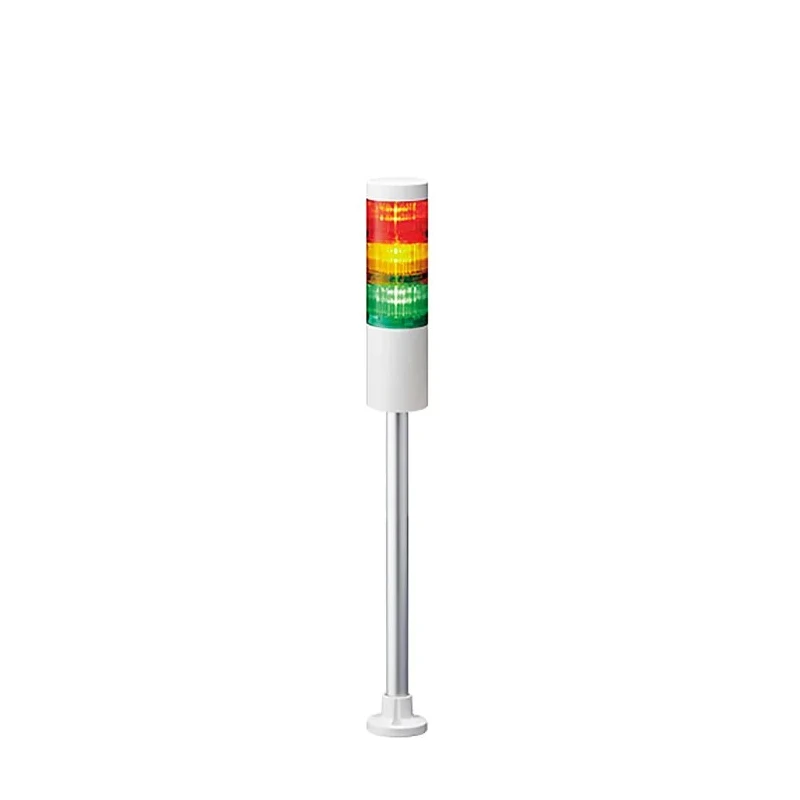

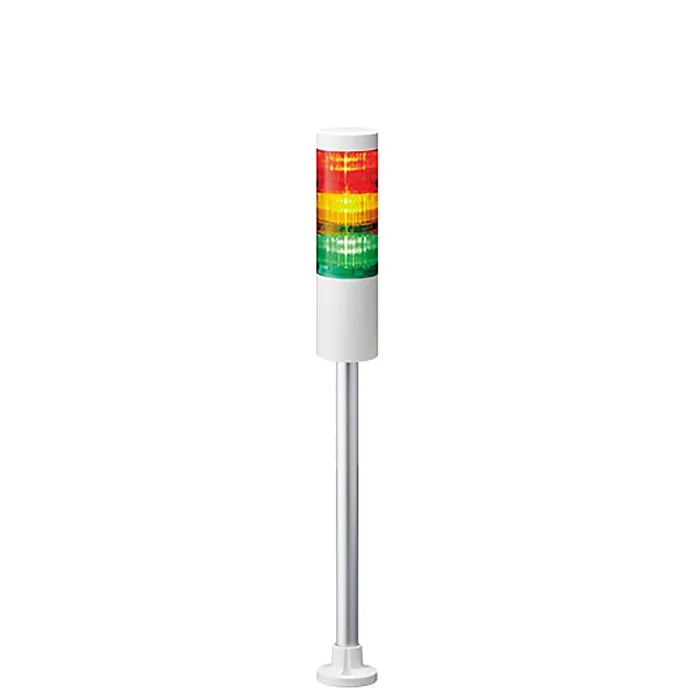

Patlite LR6 Series Signal Tower Buzzer with 3 LED Lights 24V DC Pole Mount LR6-302PJNW-RYG
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 509mm |
| Model | LR6-302PJNW-RYG |
| IP Rating | IP65 |
| Mount Type | Pole Mount |
| Bulb Type | LED |
| Series | LR6 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 250mA |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 60mm |
| Terminal type | Terminal Block |
| Standards/Approvals | CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4,EN 61000-6-2), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4,KN 61000-6-2), RoHS Directive (EN 50581), UL Recognised Component (File No.E215660), UL 508 |
| Maximum Supply Voltage | 24V dc |
| Housing Colour | Off-White |
| Light Effect | Steady |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Maximum Sound Level | 90dB |
| Number of Light Elements | 3 |
| Connection Cable Length | 1m |
Key Features
- Features three steady LED light elements for clear visual indication.
- Operates at 24V DC with a buzzer-type sounder producing 85 - 90 dB sound levels.
- Constructed with a modular “Twist and Lock” system for easy customization and field configuration.
- IP65 rated enclosure ensures protection against dust and water ingress.
- Designed for pole mounting, suitable for harsh industrial environments.
- Includes a 1 meter connection cable with terminal block connection type.
- Operating temperature range from -20°C to 50°C ensures reliability in varied conditions.
- Complies with multiple international standards and approvals, including UL, CSA, EMC, FCC, KC, and RoHS directives.
Product Description
Patlite LR6-302PJNW-RYG is a next-generation signal tower buzzer designed for industrial automation signaling with three bright LED light elements and a buzzer sounder module. It operates at 24V DC and delivers sound levels between 85 and 90 dB, providing effective audible and visual alerts in manufacturing, water treatment, HVAC, and other industrial environments.
This model features a modular "Twist and Lock" construction for quick assembly and customization, enabling operators to configure the tower according to specific application needs. The off-white housing with a base diameter of 60 mm and a total height of 509 mm provides a sleek, durable form factor suitable for pole mounting.
The fully enclosed sound module ensures omni-directional sound output while maintaining IP65-rated water and dust protection, ideal for harsh and outdoor industrial settings. The device operates within a temperature range of -20°C to 50°C and connects via a 1 meter cable terminated in a terminal block for secure wiring.
Patlite LR6 Series complies with key international standards and certifications including CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), FCC Part 15 Class A, KC certifications, RoHS compliance, and carries UL recognition (File No. E215660, UL 508). Manufactured in Indonesia, this signal tower buzzer supports multifunctional signaling applications across various industries.
Features three steady LED light elements for clear visual indication. Operates at 24V DC with a buzzer-type sounder producing 85 - 90 dB sound levels. Modular "Twist and Lock" system allows easy customization and reconfiguration.
Durable off-white housing with IP65 protection for harsh environments. Pole mount design with secure terminal block connections. Wide operating temperature range from -20°C to 50°C. Includes 1 meter connection cable for flexible installation.
Certified to international safety and electromagnetic standards.
This Patlite LR6 Series Signal Tower Buzzer is ideal for industrial, laboratory, construction, manufacturing, water treatment, and HVAC applications requiring reliable signaling solutions. Explore more Signal Towers and automation signaling equipment in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The signal tower buzzer produces a maximum sound level of 90 dB.
This model operates at a maximum supply voltage of 24V DC.
The total height of the signal tower is 509 mm, and the base diameter is 60 mm.
It operates effectively within a temperature range of -20°C to 50°C.
This unit is designed for pole mounting, making it suitable for various industrial applications.
It features three steady LED light elements for clear visual indication.
The signal tower is constructed with a modular "Twist and Lock" system for easy customization and field configuration.
It includes a 1 meter connection cable with a terminal block connection type.
This model complies with multiple international standards including CSA-C22.2 No. 14, EMC Directive, FCC Part 15, KC, RoHS, and is UL recognized.
The sounder type used in this model is a buzzer, which produces audible alerts.
The signal tower has an IP65 rating, ensuring protection against dust and water ingress.
This signal tower is manufactured in Indonesia.
