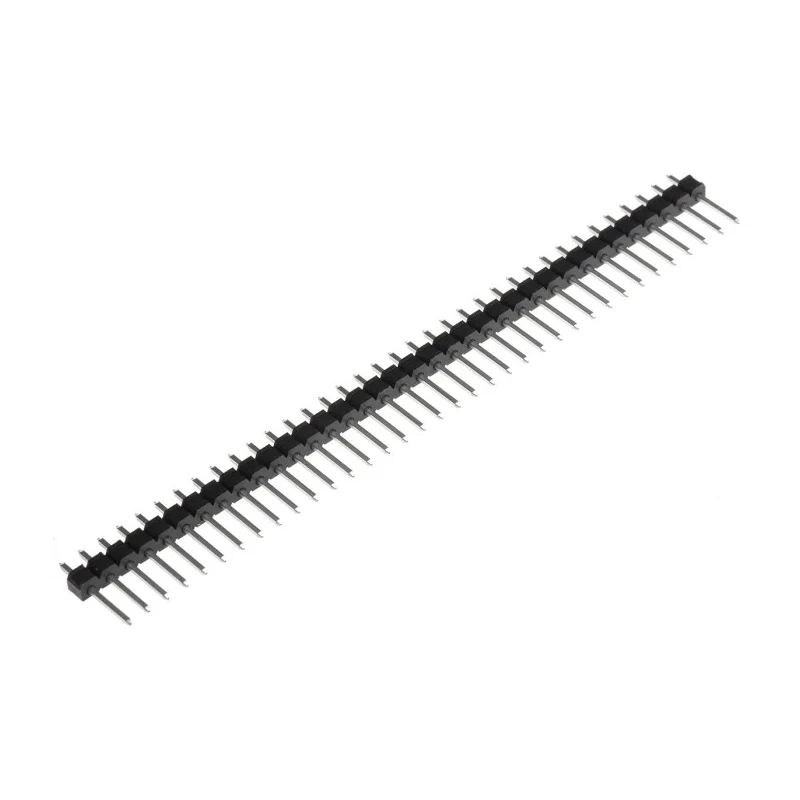

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 36 Contacts, 2.54 mm 75160-327-36LF
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 5A |
| Model | 75160-327-36LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.37mm |
| Mating Pin Length | 6.6mm |
Key Features
- Provides a 1500V voltage rating for demanding electrical applications.
- Supports a current rating of 5A, ensuring efficient power flow.
- Constructed with thermoplastic housing providing durability and UL94 V-0 flammability rating.
- Offers through hole mounting with phosphor bronze tin-plated male contacts for strong connectivity.
- Operates reliably in temperature range from -65°C to 130°C for versatility.
- Includes a tail pin length of 2.37 mm and mating pin length of 6.6 mm for secure assemblies.
- Unshrouded connector system suitable for flexible integration into PCB designs.
- Compliance with CEI 682-20 standards ensures quality and performance.
Product Description
Amphenol Communications Solutions 75160-327-36LF Bergstik Series Straight Through Hole Pin Header is a premium quality single row pin header designed for electronic connection applications requiring robust mechanical and electrical performance.
This pin header features a 2.54 mm pitch and 36 male phosphor bronze contacts plated with tin, offering excellent conductivity and resistance to corrosion. Its thermoplastic housing rated UL94 V-0 guarantees high safety standards under demanding operating conditions.
Designed for through-hole mounting, the header supports a current of up to 5 amperes and a voltage rating of 1500 volts, suitable for a wide range of industrial, commercial, and laboratory electronic applications.
The operating temperature range from -65°C to 130°C ensures reliable function in extreme environments. The tail pin length of 2.37 mm and mating pin length of 6.6 mm provide strong mechanical retention and connectivity in board-to-board or wire-to-board setups.
This product adheres to the CEI 682-20 electrical connector standard, emphasizing its compliance with recognized performance and safety criteria. Its unshrouded design allows easy manual or tool-assisted cutting to desired lengths, enhancing versatility in custom assembly builds.
Provides 36 tin-plated phosphor bronze male contacts for reliable conduction. Thermoplastic housing with UL94 V-0 flammability rating ensures safety. Supports through-hole mounting with a single row layout. Operates under wide temperature range: -65°C to 130°C.
Voltage rating of 1500V and current capacity of 5A suit multiple use cases. Complies with CEI 682-20, ensuring standardized quality. Suitable for industrial, construction, laboratory, HVAC, manufacturing, and electronics assembly environments.
This Bergstik Series pin header is an essential component for engineers and technicians seeking dependable electrical connections in board-to-board and wire-to-board applications. Explore more in the PCB Pin Header category on EnvMart to find matching connectors and accessories to complete your setups.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 1500V, making it suitable for demanding electrical applications.
This model supports a current rating of 5A, ensuring efficient power flow in various applications.
The contacts have a pitch size of 2.54 mm, which is standard for many PCB applications.
It features a thermoplastic housing and phosphor bronze contacts plated with tin for conductivity and corrosion resistance.
It operates reliably within a temperature range of -65°C to 130°C, allowing for use in extreme environments.
This pin header includes 36 male contacts, providing multiple connection points for electrical circuits.
It supports through-hole mounting, which is common for PCB connections.
The tail pin length is 2.37 mm, which aids in secure assemblies on the PCB.
The mating pin length is 6.6 mm, ensuring a strong mechanical connection during use.
Yes, it complies with CEI 682-20 standards, ensuring quality and performance in electrical connections.
It is suitable for industrial, commercial, and laboratory electronic applications, including board-to-board and wire-to-board setups.
The design orientation is straight, allowing for straightforward integration into PCB layouts.
