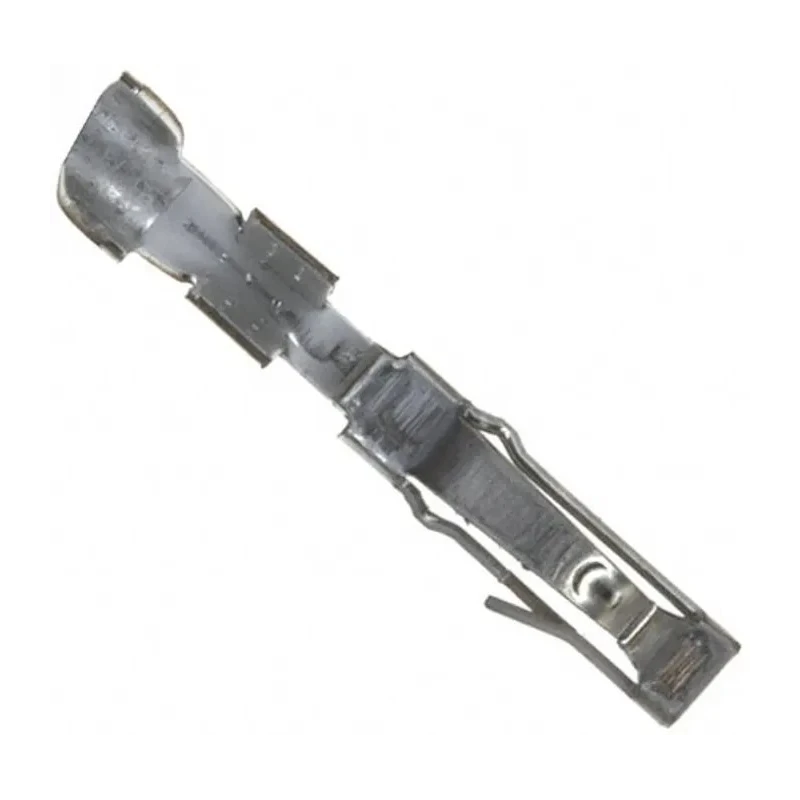

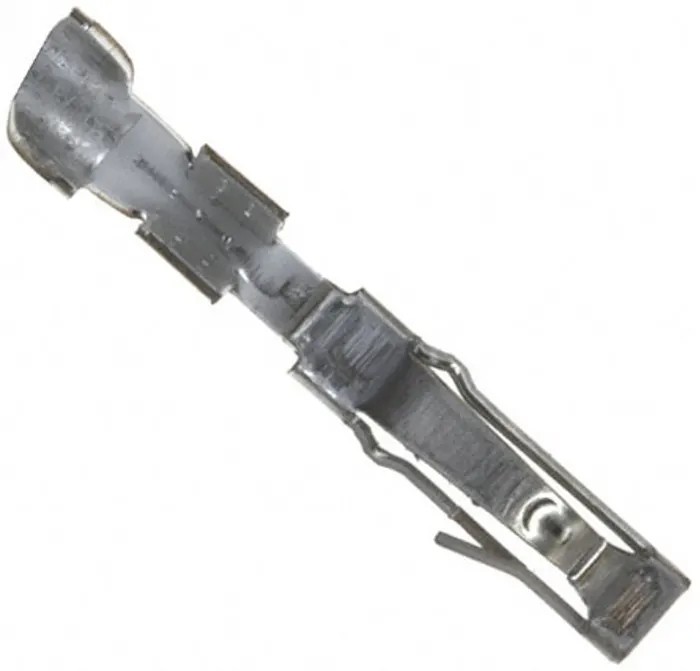

Amphenol Communications Solutions Dubox Series Female Crimp Terminal 2.5A Current 30 AWG Min to 22 AWG Max Wire 76347-303LF
Specifications
| Country of Origin | France |
|---|---|
| Brand | Amphenol Communications Solutions |
| Current | 2.5A |
| Model | 76347-303LF |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Dubox |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Board to Board Connectors |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
Key Features
- The terminal features gold plating for excellent conductivity and corrosion resistance.
- Constructed with phosphor bronze contact material for durability and reliability.
- Designed to operate in temperatures from -40°C to 125°C, suitable for a wide range of environments.
- The Dubox series crimp contact supports mating with short 5 mm pins, facilitating compact connector designs.
- Termination type is crimp, providing secure and reliable wire connections.
- Maximum contact resistance is 15 mΩ ensuring low electrical loss.
- This product meets the industrial requirements with no additional approvals or certifications.
- Manufactured in France, ensuring quality standards.
Product Description
Amphenol Communications Solutions 76347-303LF Female Crimp Terminal is part of the Dubox Series designed for reliable electrical connections in board to board connector applications. It supports a current rating of 2.5A and accommodates wire gauges from 30 AWG minimum to 22 AWG maximum, making it versatile for various wiring requirements.
This crimp terminal uses high-quality phosphor bronze for contact material, combined with gold plating to enhance conductivity and resist corrosion, assuring consistent electrical performance over time.
The Dubox series crimp contacts are designed to mate with short 5 mm pins, allowing compact and efficient connector assemblies. The crimp termination type ensures a mechanically strong and electrically reliable connection while minimizing installation complexity.
Operating temperature range from -40°C to 125°C enables use in a wide variety of environments, including industrial and electronic applications with thermal stress or temperature fluctuations.
The maximum contact resistance of 15 milliohms ensures minimal energy loss and high efficiency in signal transmission or power delivery. The terminal has gold-plated contacts for enhanced conductivity and corrosion protection.
Phosphor bronze contact material grants mechanical strength and electrical reliability. Compatible with wires sized 30 AWG to 22 AWG for flexible application. Supports crimp termination type for secure wire connections. Designed to mate with Dubox headers featuring short 5 mm pins for compact interconnection.
Operates reliably within -40°C to 125°C temperature range. Manufactured in France, indicating adherence to high production standards.
This product is well-suited for use in Electronic Components, Power Connectors, and industrial electrical systems requiring dependable and compact Crimp Contacts. It serves industrial, manufacturing, electronic assembly, and laboratory applications where secure and durable electrical connections are critical.
Explore more in the Electronics Components category at EnvMart for a broad range of quality connectors and terminals that fit various industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2.5A, making it suitable for various wiring applications.
It accommodates wire gauges from 30 AWG minimum to 22 AWG maximum, providing flexibility for different wiring needs.
The maximum contact resistance is 15 milliohms, ensuring low electrical loss during operation.
It features phosphor bronze as the contact material and is gold plated for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 125°C, suitable for a variety of environments.
The termination type is crimp, providing a secure and reliable connection to the wire.
This unit is designed for use with board to board connectors, particularly those featuring short 5 mm pins for compact designs.
It is manufactured in France, ensuring adherence to quality production standards.
It is well-suited for electronic assembly, industrial electrical systems, and laboratory applications requiring secure connections.
This terminal is part of the Dubox series, which is known for its reliable electrical connections in compact designs.
This model is a female crimp terminal, designed to mate with corresponding male connectors.
This product meets industrial requirements but does not have additional approvals or certifications specified.
