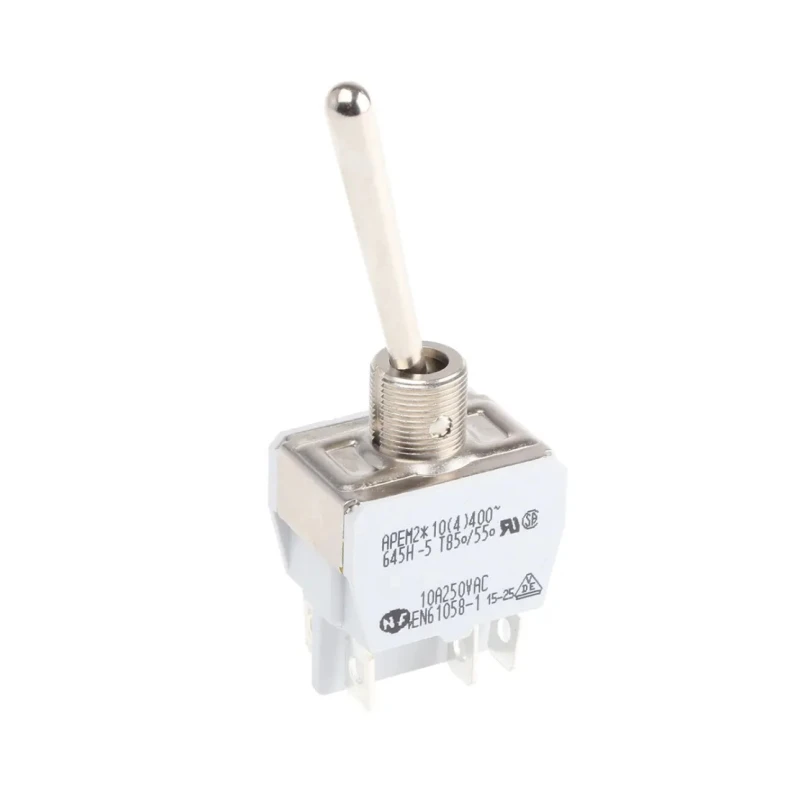

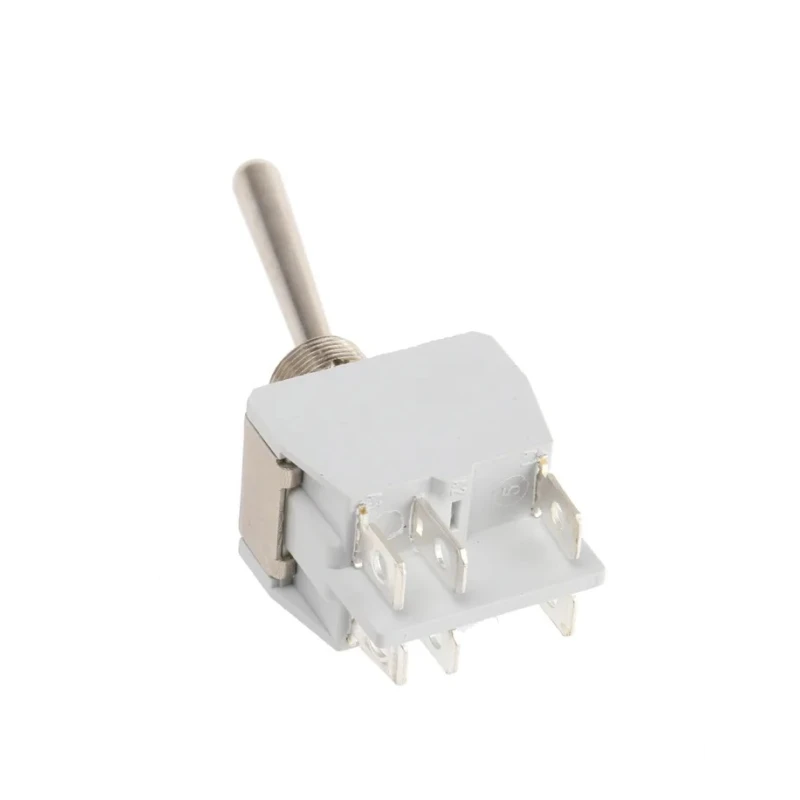

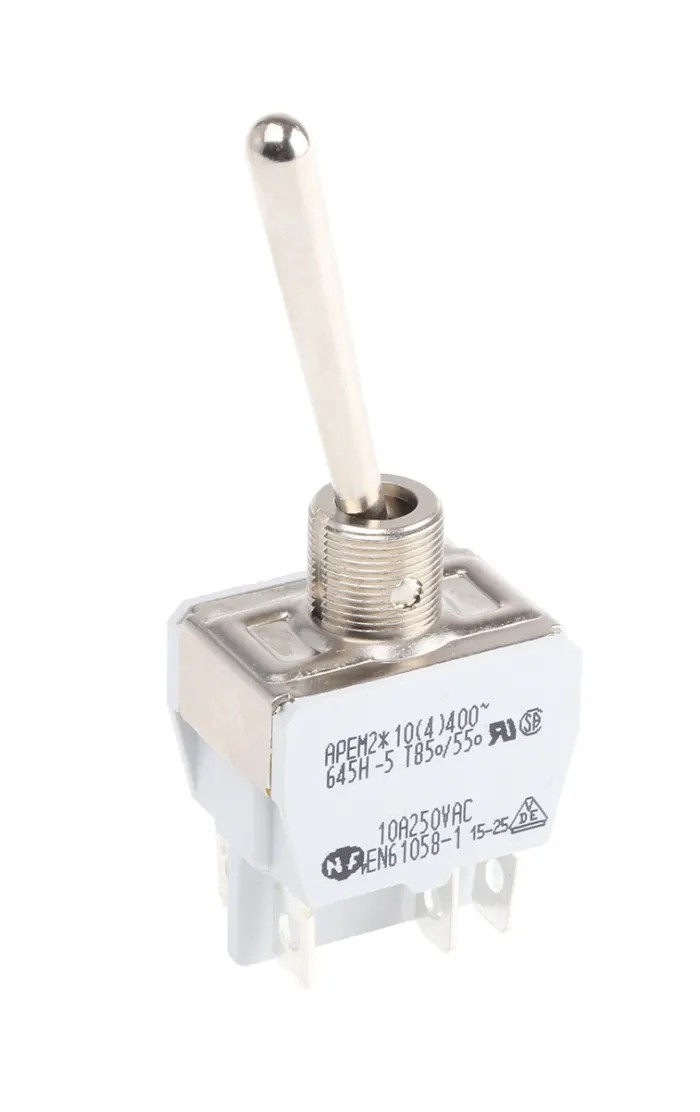

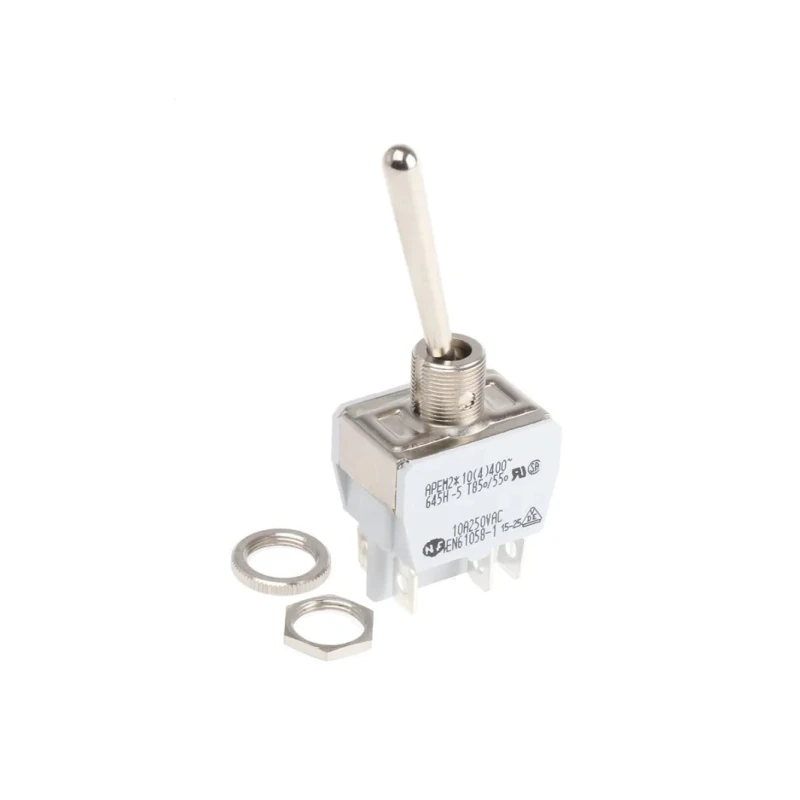

APEM Toggle Switch Panel Mount On-On DPDT Solder Terminal 24 V dc 250 V ac 645H/2-5
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 60.4mm |
| Length | 29.7mm |
| Model | 645H/2-5 |
| Width | 21.5mm |
| Mount Type | Panel |
| Series | 600h |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Solder |
| Standards/Approvals | VDE, UL, RoHS, NF, EN, CSA |
| Switch Operation | On-On |
| Actuator Length | 40mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 10A |
| Mechanical Life | 10000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nickel Plated Brass |
Key Features
- Features a durable nickel plated brass actuator with 40mm length for ergonomic handling.
- Supports up to 10A switch contact current for reliable electrical performance.
- Designed with a 12.5 mm panel cutout size for secure mounting.
- Operates effectively between -20°C to 55°C temperature range ensuring industrial reliability.
- Switch configuration is On-(On) with contacts resistance welded for durability.
- Compact dimensions of 60.4mm height, 29.7mm length, and 21.5mm width for space-saving installation.
- 600H series switch offers a long mechanical life of 10,000 operations.
- Front face fully insulated and sealed for industrial environment protection.
Product Description
APEM 645H/2-5 Toggle Switch is a high-quality industrial panel mount toggle switch featuring On-On double pole double throw (DPDT) contacts. It is designed to operate efficiently at 24 V dc and 250 V ac with a maximum switch contact current of 10A. The switch includes solder terminals for secure electrical connection and a robust nickel plated brass actuator measuring 40mm in length to facilitate ergonomic usage.
Its compact size, with 60.4mm height, 29.7mm length, and 21.5mm width dimensions, allows for versatile panel installations using a standard 12.5 mm panel cutout.
The 600H series design ensures long-term reliability with resistance welded contacts and a mechanical life rated at 10,000 operations, suitable for demanding industrial environments. The front face of the switch is fully insulated and sealed, enhancing protection against dust and contaminants in industrial settings.
Operating reliably within a temperature range of -20°C to 55°C, this toggle switch meets multiple global standards including VDE, UL, RoHS, NF, EN, and CSA, making it suitable for use across various industrial, automation, electrical control panels, and machinery applications.
Durable nickel plated brass actuator enhances mechanical strength. DPDT contact configuration offers versatile circuit switching. Panel mount design simplifies installation in industrial control panels. High current rating of 10A supports significant loads.
Resistance welded contacts ensure long-term electrical integrity. Sealed and insulated front face protects against industrial contaminants. Compact dimensions enable space-efficient integration. Conforms to multiple international safety and quality standards.
This APEM Toggle Switch 645H/2-5 series is ideal for industrial automation, electrical control systems, machinery panels, and other applications requiring reliable, durable, and safe switching solutions. Browse EnvMart for more high-quality industrial switches and electrical components from APEM and other trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switch contact current for this model is 10A.
This unit has dimensions of 60.4mm in height, 29.7mm in length, and 21.5mm in width.
The required panel cutout size for this toggle switch is 12.5 mm.
It operates effectively within a temperature range of -20°C to 55°C.
This model features solder terminals for secure electrical connections.
The contact configuration is double pole double throw (DPDT).
The mechanical life of this switch is rated for 10,000 operations.
The actuator is made of nickel plated brass, enhancing its mechanical strength.
It complies with multiple standards including VDE, UL, RoHS, NF, EN, and CSA.
The switch configuration is On-(On).
This model belongs to the 600H series.
It supports panel mounting, simplifying installation in control panels.
