Idec 6 Channel Relay Barrier Zener Barrier ATEX Certified DIN Rail Mount EB3C-R06AN

Free Delivery in India | Lowest Global Shipping Charges

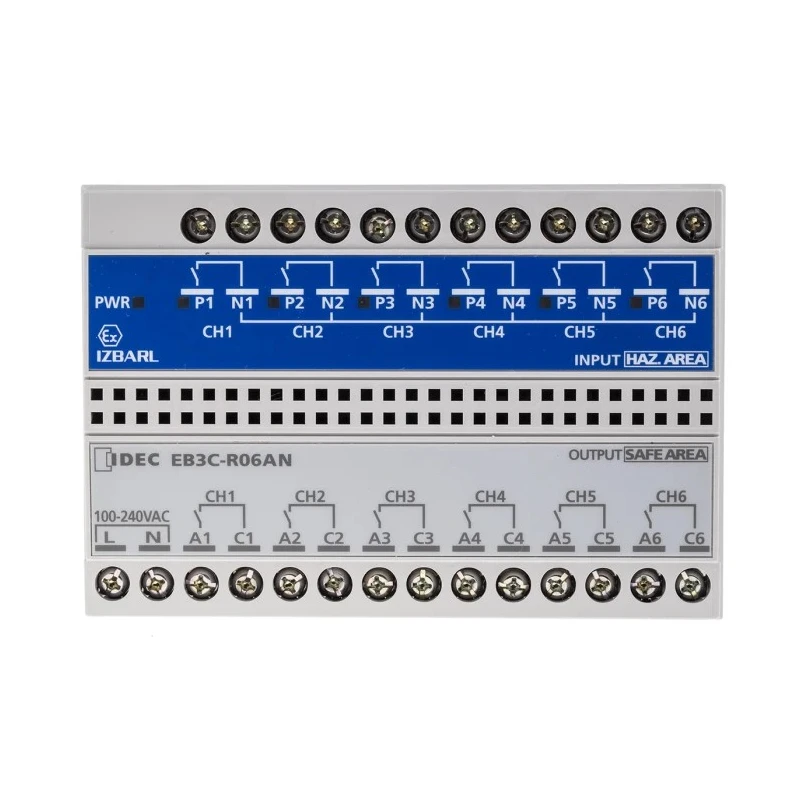

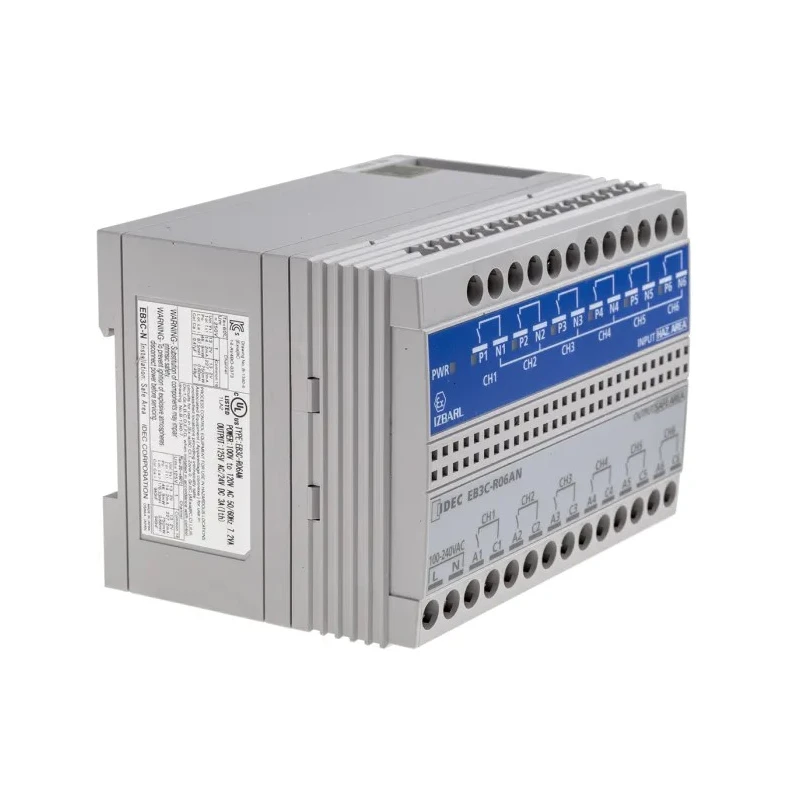

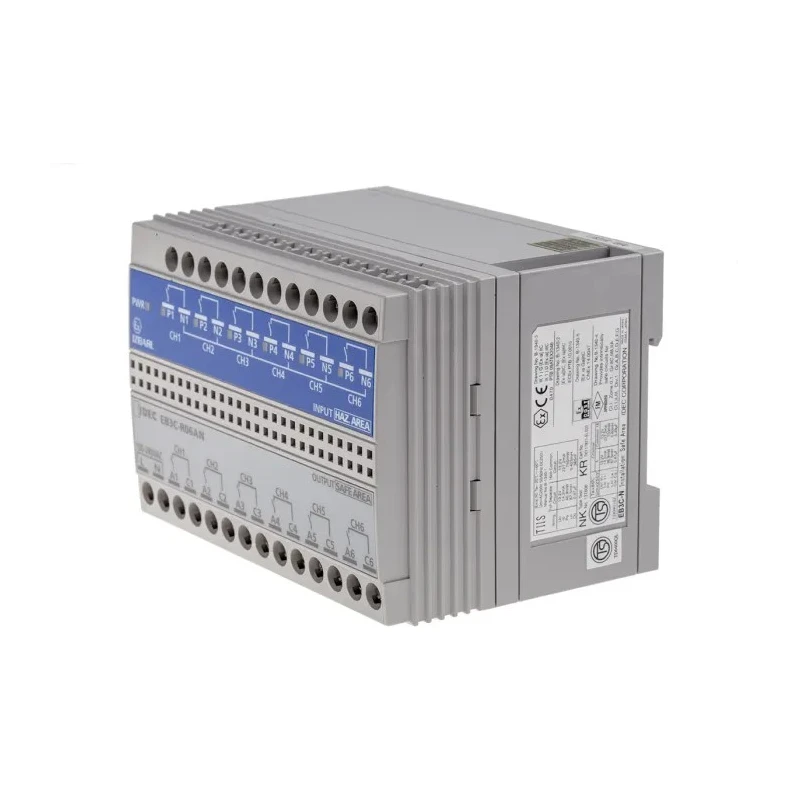

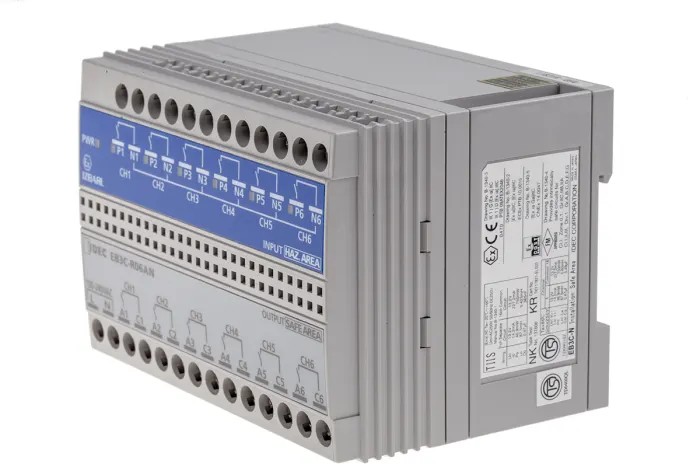

Idec 6 Channel Relay Barrier Zener Barrier ATEX Certified DIN Rail Mount EB3C-R06AN

Name: Idec 6 Channel Relay Barrier Zener Barrier ATEX Certified DIN Rail Mount EB3C-R06AN
Brand: Idec
SKU: 149474
Price: 505.91 USD
Availability: InStock



Category Signal Conditioners & Isolators Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Model	EB3C-R06AN
IP Rating	IP20
Mount Type	DIN Rail
Series	EB3C
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Number Of Channels	6
Supply Voltage	100, 240V ac
Hazardous Area Certification	ATEX
Standards/Approvals	UL, CE, IEC, FM
Barrier Type	Relay Barrier
Safety Current Resistance	300Ω
Maximum Safety Current	14.2mA
Maximum Safety Voltage	250V ac
Relay Barrier	(Exia) II C
Switch (EB9Z-A)	Exia II CT6
Switch (EB9Z-A1)	Exia II BT6

Key Features

Supports 6 channels for signal isolation and conditioning.
Relay barrier type providing explosion protection Exia II C.
Compact DIN rail mounting design with screw terminal connections.
Certified for ATEX hazardous area standards ensuring safety compliance.
Operating temperature range from -20°C up to 60°C for versatile environments.
IP20 rated enclosure for protection against solid objects.
Maximum safety current of 14.2 mA and safety current resistance of 300Ω.
Suitable for Zone 0/Class I Div. 1 explosive gas environments.

Product Description

Idec EB3C-R06AN is a 6 channel relay barrier Zener barrier designed for signal conditioning and isolation in hazardous environments. This ATEX certified product features a compact design for easy DIN rail mounting, with screw terminal connections to minimize wiring time.

The relay barrier provides explosion protection rated (Exia) II C, suitable for use in explosive gas and Zone 0/Class I Div. 1 areas. The barrier supports universal supply voltage between 100 and 240V AC, delivering maximum safety current of 14.2 mA with a safety current resistance of 300Ω. The product operates efficiently in a temperature range from -20°C to 60°C, with an IP20 protection rating.

This model is lightweight and compact, occupying significantly less footprint and weight compared to IDEC’s previous 10-circuit IBRC series. For applications requiring more channels, 8- and 16-channel variants are available from the same series, with common wiring that interfaces well with PLCs.

Its robust design and certification standards (UL, CE, IEC, FM) make it ideal for industrial automation, electrical control systems, instrumentation, and safety applications requiring reliable isolation in hazardous locations.

Supports 6 channels for signal isolation and conditioning. Relay barrier type providing explosion protection Exia II C. Operating voltage range from 100 to 240V AC. Compact DIN rail mounting with screw terminals. ATEX certification for hazardous area use.

Operating temperature range from -20°C to 60°C. IP20 rated enclosure protection. Maximum safety current 14.2 mA, safety current resistance 300Ω. Suitable for Zone 0/Class I Div. 1 explosive gas areas.

Idec products are widely used across industrial automation, manufacturing control systems, chemical plants, and electrical safety installations. This model offers a safe and reliable interface between hazardous field signals and control systems.
