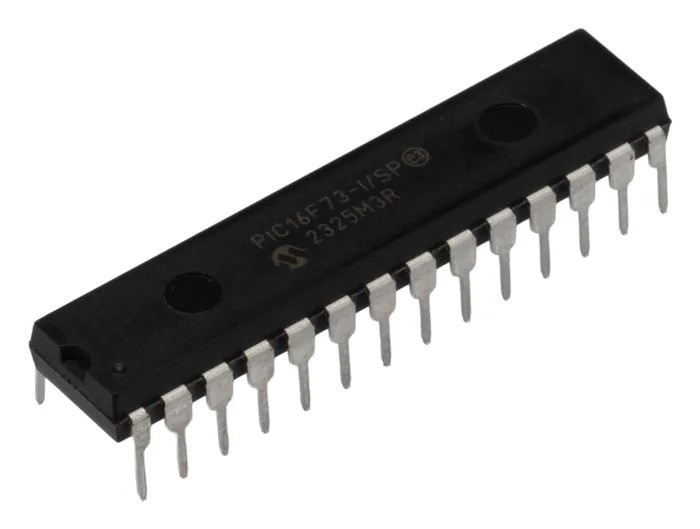

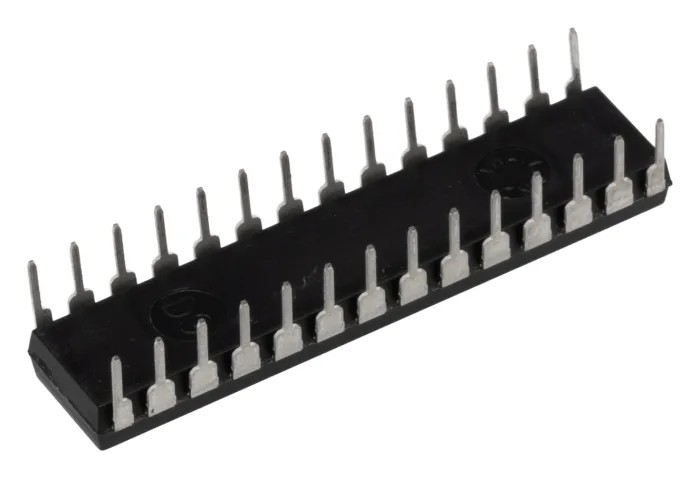

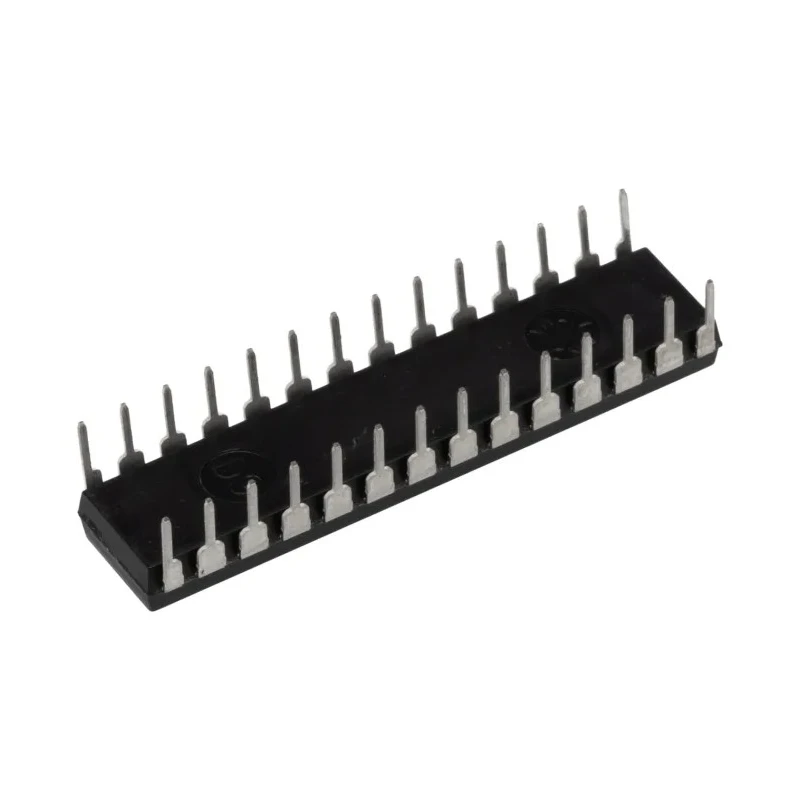

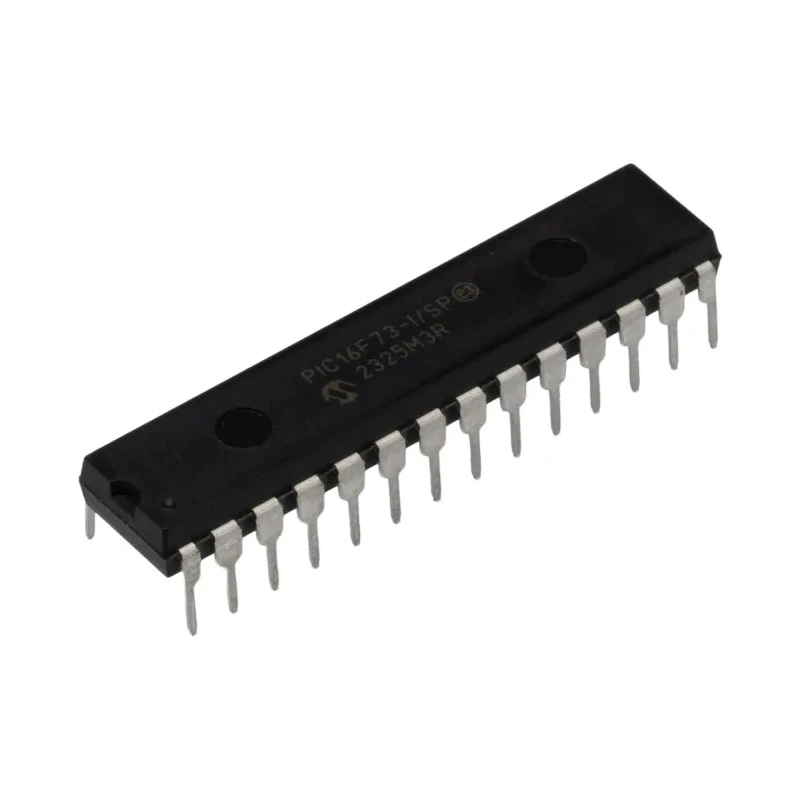

Microchip 8-bit PIC Microcontroller 20 MHz 7kB FLASH 28-Pin SPDIP PIC16F73-I/SP

Microchip PIC16F73-I/SP is an 8-bit PIC microcontroller featuring a 20 MHz maximum CPU speed and 7kB FLASH program memory, housed in a 28-pin SPDIP package. Designed on Microchip's Mid-range RISC core architecture, it offers an 8-level deep hardware stack with 35 instructions, delivering up to 5 MIPS performance for embedded control applications.

This microcontroller supports 22 programmable I/O pins and includes 192 bits of RAM. It operates within a supply voltage range from 2V minimum up to 5.5V maximum, with a maximum power dissipation rated at 1W. The device is suitable for industrial and commercial use with an operating temperature range of -40°C to 85°C.

Key peripherals include five 8-bit Analog-to-Digital Converter (ADC) channels, two Capture, Compare, PWM (CCP) modules, two 8-bit timers, and one 16-bit timer. Communication interfaces supported are Synchronous Serial Port (SSP) with SPI and I2C protocols as well as Universal Synchronous Asynchronous Receiver Transmitter (USART).

The PIC16F73-I/SP supports Power-On Reset (POR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), Brown-Out Reset (BOR), Watchdog Timer (WDT), In-Circuit Serial Programming (ICSP), and In-Circuit Debug (ICD) features to enhance robustness and facilitate development.

This microcontroller is RoHS compliant, ensuring environmental safety in manufacturing and disposal processes.

Typical applications include embedded systems in industrial automation, consumer electronics, automotive subsystems, and communication devices requiring reliable 8-bit processing capability.

Explore EnvMart's range of Microchip microcontrollers for comprehensive solutions in microcontroller-based design and development. Mid-range RISC architecture with 35 instructions and 8-level hardware stack. Offers 22 programmable I/O pins suitable for versatile applications.

Supports up to 7kB of program memory and 192-bit RAM for efficient processing. Operating voltage range between 2V to 5.5V with maximum power dissipation of 1W. Includes 5 channels of 8-bit ADC for analog input functionality.

Temperature operational range from -40°C to 85°C for industrial reliability. Features multiple timers: two 8-bit and one 16-bit timer for precise time control. Supports In-Circuit Serial Programming (ICSP) and In-Circuit Debug (ICD).

Compatible with SPI, I2C, and USART communication protocols via SSP and USART modules. RoHS compliant ensuring environmental and regulatory standards. Visit EnvMart to browse the full Microchip Microcontroller series and accessories.
