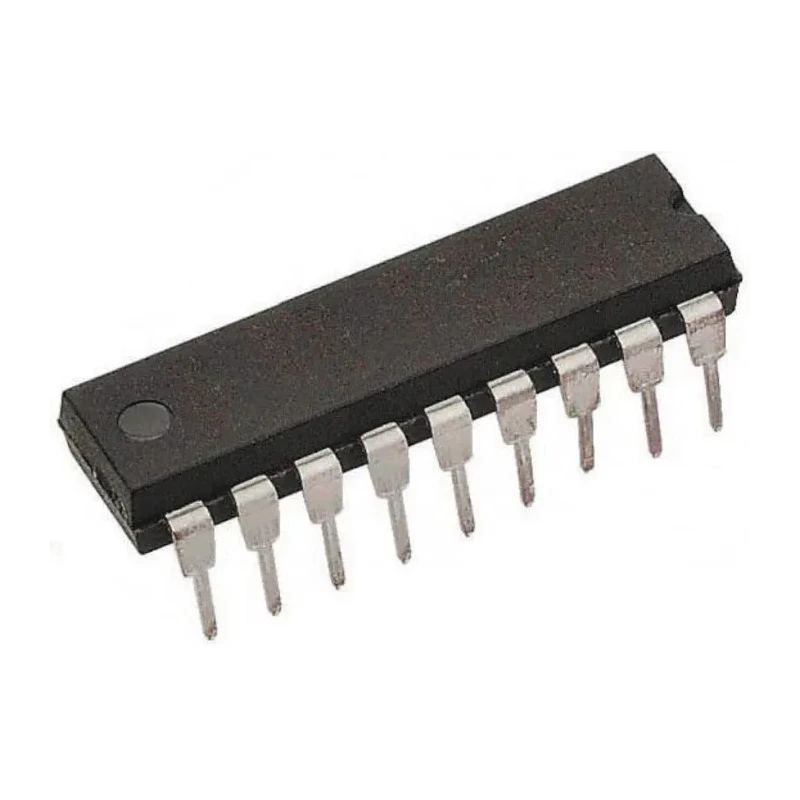

Microchip 8 Bit PIC PIC16C Microcontroller 4 MHz 1.5kB EPROM 18-Pin PDIP PIC16C56A-04/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16C56A-04/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16C |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 25bit |
| Standards/Approvals | RoHS |
| Pin Count | 18 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 1.5kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 12 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | EPROM |
Key Features
- Compatible with PIC16C5x series baseline architecture supporting 33 12-bit instructions.
- Offers up to 4 MHz maximum clock frequency and 1.5kB EPROM program memory size.
- Features 8-bit data bus width with 25-bit RAM size and 12 programmable input/output pins.
- Operates within a supply voltage range of 3V to 5.5V with maximum power dissipation of 800mW.
- Designed for through-hole mounting with a package height of 3.68mm, length of 22.99mm, and width of 6.6mm.
- Equipped with one 8-bit timer, watchdog timer, power-on reset, and device reset timer functions.
- Complies with RoHS standards and automotive standard ISO/TS 16949 for quality assurance.
- Suitable for legacy designs in industrial, laboratory, and embedded system applications requiring reliable 8-bit microcontrollers.
Product Description
Microchip PIC16C56A-04/P is an 8-bit PIC microcontroller featuring a 4 MHz maximum clock frequency and 1.5kB EPROM program memory. It is packaged in an 18-pin PDIP form factor suited for through-hole PCB mounting.
This device belongs to the PIC16C5x series that incorporates Microchip’s PIC architecture, offering a 2-level hardware stack and 33 12-bit instructions. It supports up to 10 MIPS processing speed and 12 programmable I/O pins, enabling versatile control in embedded systems.
The microcontroller operates within a voltage range of 3 to 5.5 volts and has a maximum power dissipation rating of 800mW. It includes essential features such as a watchdog timer, power-on reset, and device reset timer to ensure reliable operation in various environments.
The compact package dimensions of 22.99mm length, 6.6mm width, and 3.68mm height contribute to its suitability for space-constrained applications. It meets RoHS compliance and automotive industry quality standards ISO/TS 16949, making it suitable for high-reliability embedded designs.
Compatible with PIC16C5x series baseline architecture supporting 33 12-bit instructions. 4 MHz maximum clock frequency and 1.5kB EPROM program memory size for moderate processing capacity. 25-bit RAM size and 12 programmable I/O pins for flexible interfacing.
Operating voltage from 3V to 5.5V with 800mW maximum power dissipation. Includes watchdog timer, power-on reset, and device reset timer for system reliability. 18-pin PDIP package with through-hole mount for easy PCB integration.
RoHS compliant and conforms to ISO/TS 16949 automotive standard. Ideal for legacy system designs in industrial, laboratory, and embedded control applications.
This microcontroller is widely used in embedded system projects requiring a dependable and compact 8-bit processor with moderate program memory and clock speed. Its adherence to quality and environmental standards ensures compliant and sustainable use across commercial and industrial sectors.
Discover a broad range of Microcontrollers and semiconductor components suited for diverse industrial, laboratory, and embedded applications at EnvMart.
