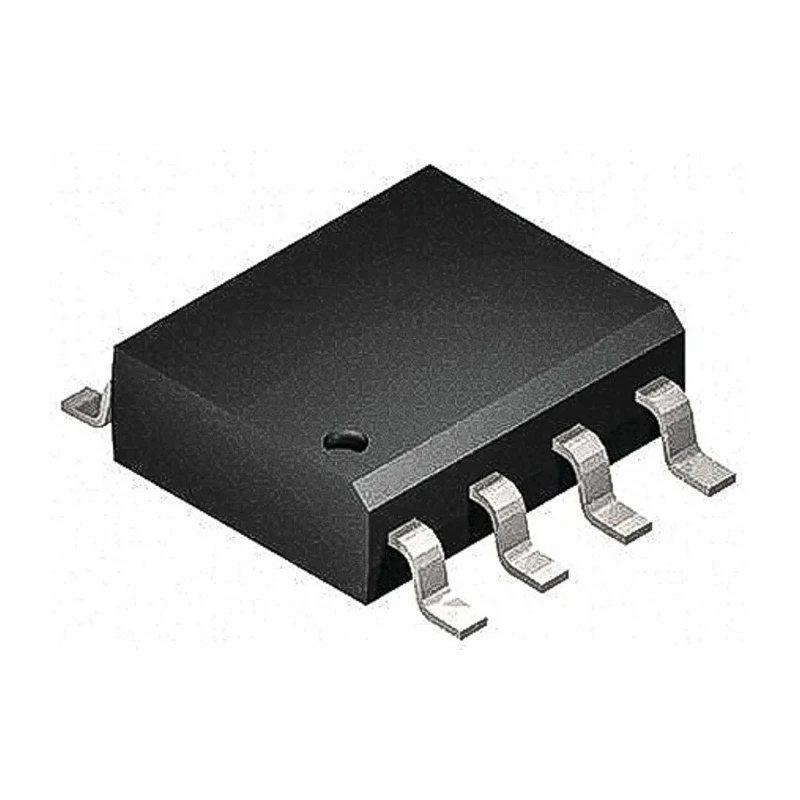

STMicroelectronics STM8S001J3M3 8 bit STM8S Microcontroller 16 MHz 8kB FLASH 8-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.5mm |
| Length | 5mm |
| Model | STM8S001J3M3 |
| Width | 4mm |
| Mount Type | Surface |
| Series | STM8S |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Interface Type | I2P, SPI, UART |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 49mW |
| Minimum Supply Voltage | 2.95V |
| Device Core | STM8 |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 5 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 8kB |
| Number of Timers | 3 |
| Instruction Set Architecture | Harvard |
| ADCs | 1 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features a STM8 8-bit device core ensuring efficient processing.
- Operates at a maximum clock frequency of 16 MHz.
- Includes 8kB of Flash program memory and 1kB RAM.
- Offers multiple communication interfaces including I2C, SPI, and UART.
- Operates within a supply voltage range of 2.95V to 5.5V.
- Equipped with 3 timers and one 10-bit ADC for analog signal processing.
- Functions reliably across a temperature range from -40°C to 125°C.
- Compact 8-pin SOIC surface mount package with dimensions 5mm x 4mm x 1.5mm.
Product Description
The STMicroelectronics STM8S001J3M3 is an 8-bit microcontroller from the STM8S series designed to provide a balance of performance, robustness, and reduced system cost. Featuring an integrated true data EEPROM and 8kB of Flash program memory, it is suitable for low-density embedded applications.
Powered by a STM8 core, this microcontroller operates at a maximum clock frequency of 16 MHz, offering efficient processing capabilities for a wide range of tasks. It integrates 1kB of RAM and supports multiple interfaces including I2C, SPI, and UART, facilitating versatile connectivity in complex systems.
The device supports a supply voltage range from 2.95V to 5.5V with a maximum power dissipation of 49mW, contributing to low power consumption demands. Reliability is enhanced by its ability to operate within a wide temperature span of -40°C to 125°C, making it suitable for harsh industrial environments.
Additional features include three timers and a 10-bit ADC for analog-to-digital conversion, enabling precision control and measurement functions. The compact 8-pin SOIC surface mount package supports space-constrained PCB layouts, measuring 5mm in length, 4mm in width, and 1.5mm in height.
This microcontroller is applicable for embedded system designs requiring efficient 8-bit processing, robust communication capabilities, and a small form factor. Features a STM8 8-bit device core ensuring efficient processing.
Includes 8kB of Flash program memory and 1kB RAM. Multiple communication interfaces: I2C, SPI, UART. Operating voltage range: 2.95V to 5.5V with low power consumption. Maximum clock frequency of 16 MHz for fast execution.
Equipped with three timers and one 10-bit ADC. Wide operating temperature from -40°C to 125°C. Compact 8-pin SOIC package dimensions: 5mm x 4mm x 1.5mm. Low maximum power dissipation at 49mW. Suitable for industrial and embedded control applications.
Ideal for industrial, laboratory, and embedded electronics applications requiring an efficient 8-bit microcontroller with flexible communication options. Explore more STMicroelectronics Microcontrollers and semiconductor components at EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM8S001J3M3 operates at a maximum clock frequency of 16 MHz, allowing for efficient processing capabilities.
It operates within a supply voltage range of 2.95V to 5.5V, contributing to its low power consumption.
This microcontroller includes 8kB of Flash program memory, suitable for low-density embedded applications.
It supports multiple communication interfaces including I2C, SPI, and UART, facilitating versatile connectivity.
The STM8S001J3M3 functions reliably across a temperature range from -40°C to 125°C, making it suitable for harsh environments.
The microcontroller comes in a compact 8-pin SOIC package with dimensions of 5mm x 4mm x 1.5mm.
It includes 1kB of RAM, which supports its processing capabilities for various applications.
It is equipped with one 10-bit ADC for analog-to-digital conversion, enabling precision control and measurement functions.
This unit is equipped with three timers, enhancing its capability for timing-related functions.
The maximum power dissipation for this microcontroller is 49mW, contributing to its low power consumption profile.
The STM8S001J3M3 has a pin count of 8, which is suitable for compact designs.
It features a STM8 8-bit device core, ensuring efficient processing for a variety of tasks.
