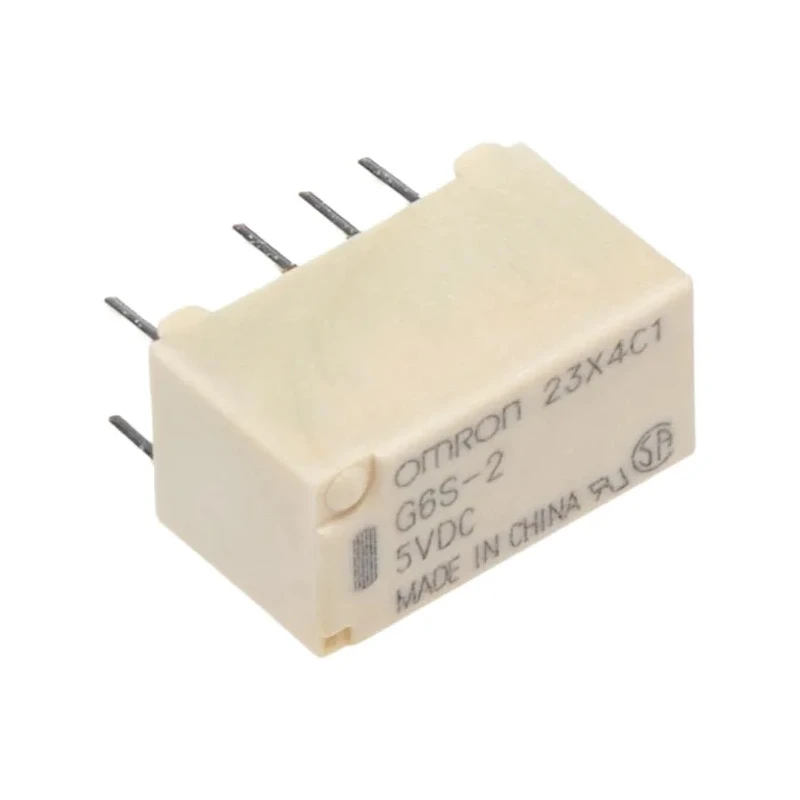

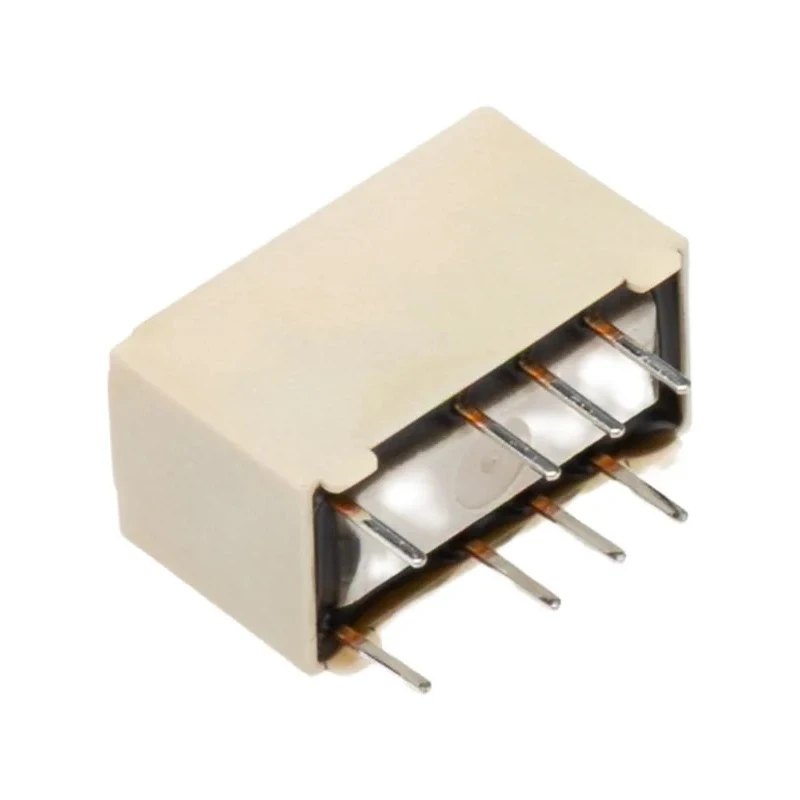

Omron Signal Relay, PCB Mount, 5V DC Coil, 2A Switching Current, DPDT Contact Configuration G6S-2 DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14.8mm |
| Model | G6S-2 DC5 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HFD23 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| TE Connectivity PCB Signal Relay, 5V dc Coil, 2A, DPDTBrand | TE Connectivity |
Key Features
- Operates efficiently at coil voltage of 5V DC.
- Double pole double throw (DPDT) contact configuration supports versatile switching needs.
- Capable of switching currents up to 2 amps for multiple applications.
- PCB mounting design ensures reliable and secure installation on printed circuit boards.
- Compact dimensions with length 14.8mm, width 7.5mm, and height 9.2mm for space-saving integration.
- Designed to handle switching AC voltage up to 250V AC and DC voltage up to 220V DC.
- Features silver alloy contacts for durable and stable electrical performance.
- Coil resistance of 178 ohms and coil power consumption of 140 milliwatts for energy-efficient operation.
Product Description
Omron G6S-2 DC5 is a high-performance signal relay designed for PCB mounting applications, operating at a coil voltage of 5V DC with a switching current rating of 2A. It features a double pole double throw (DPDT) contact configuration allowing versatile switching in electrical circuits. The relay is compact and miniaturized with dimensions of 14.8mm length, 7.5mm width, and 9.2mm height, making it ideal for space-constrained PCB designs.
This signal relay supports switching voltages up to 250V AC and 220V DC, with silver alloy contacts that provide excellent electrical conductivity and durability. Its coil resistance is rated at 178 ohms, and power consumption stands at 140 milliwatts ensuring low power usage during operation.
Designed for industrial and electronic automation environments, the G6S series relays offer fully sealed construction with high dielectric strength of 2000Vac between coil and contacts, and 1500Vac between contacts of different polarity. It withstands high impulse voltages up to 2500V, meeting Bellcore requirements for reliability.
The relay is suitable for applications in industrial automation, electrical control, signal conditioning circuits, and various manufacturing systems requiring precise and reliable switching. Its operating temperature range from -40°C to 85°C enables deployment in harsh environments.
Operates at 5V DC coil voltage with 2A switching current capacity. DPDT contact configuration allows flexible switching options. Compact PCB mount form factor for effective circuit integration. Silver alloy contacts ensure high reliability and longevity.
Wide operating temperature range from -40°C to 85°C. Fully sealed design with high dielectric and impulse withstand strength. Suitable for electronic, industrial automation, and control applications.
Omron is a global leader in industrial automation solutions, ensuring quality and performance with the G6S range of surface mounting Signal Relays. This product is made in China with high standards to meet demanding industrial requirements.
Explore more Omron relays and comprehensive electronics components in the EnvMart catalogue for robust, precise, and energy-efficient automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 5V DC.
It is capable of switching currents up to 2A.
This model features a double pole double throw (DPDT) contact configuration.
The dimensions are 14.8mm in length, 7.5mm in width, and 9.2mm in height.
It can switch AC voltage up to 250V and DC voltage up to 220V.
The coil resistance is rated at 178 ohms.
The coil power consumption is 140 milliwatts.
The operating temperature range is from -40°C to 85°C.
The contacts are made of silver alloy, which provides good electrical conductivity.
It is designed for PCB mounting, ensuring secure installation on printed circuit boards.
This model uses PCB terminals for its connections.
This relay belongs to the HFD23 series.
