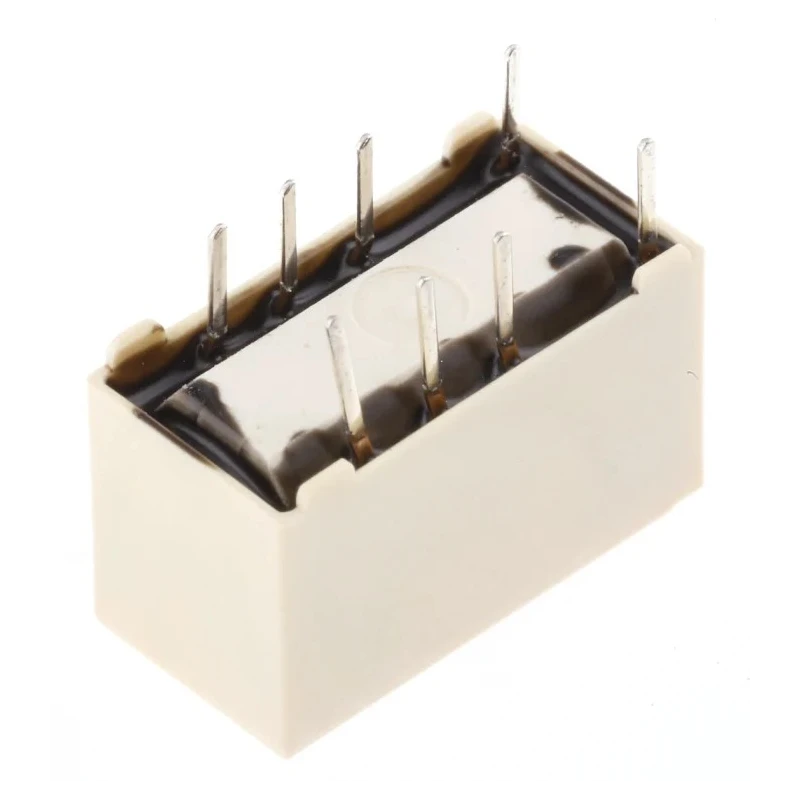

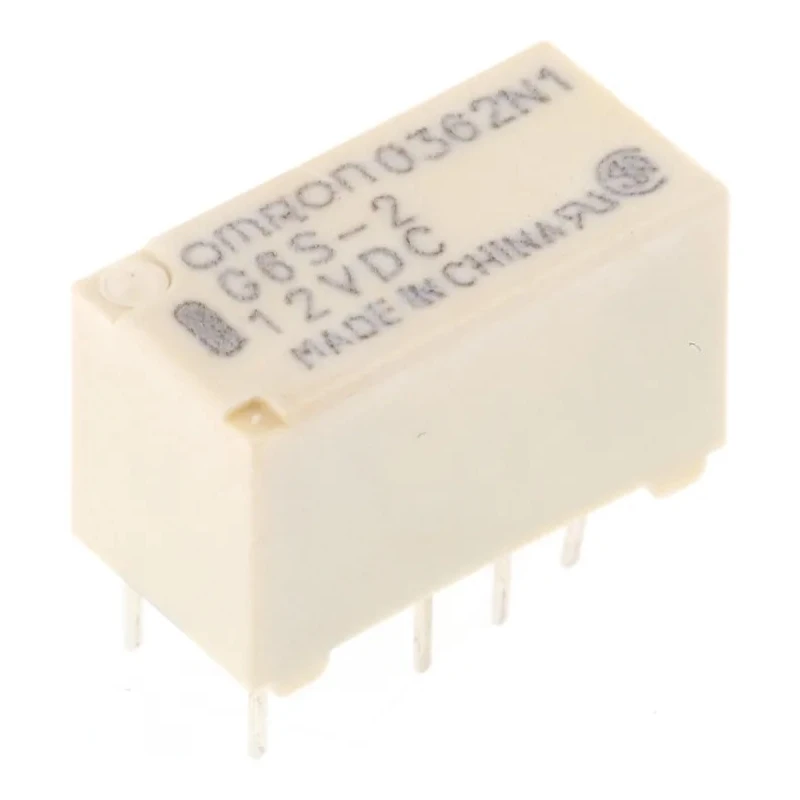

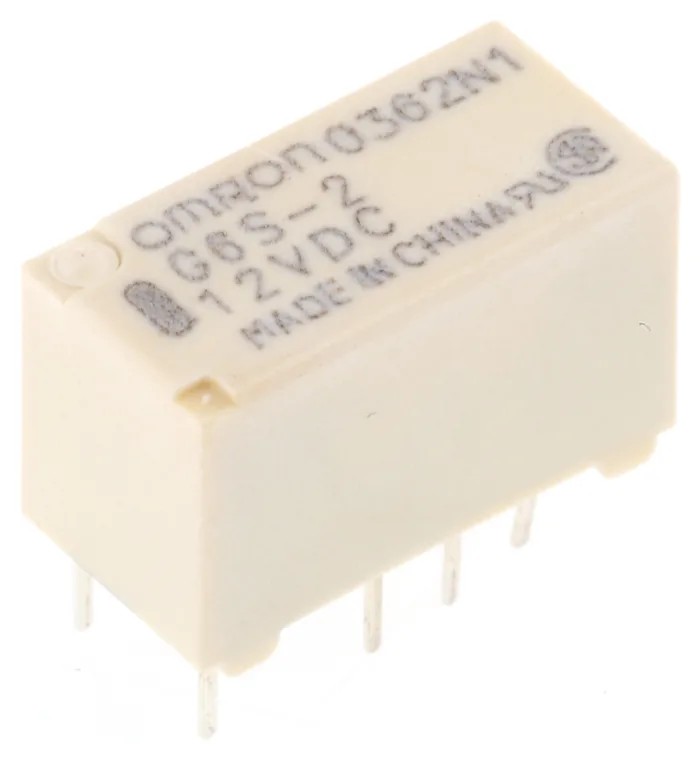

Omron Signal Relay PCB Mount 12V DC Coil, 2A Switching Current, DPDT, Model G6S-2 DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14.8mm |
| Model | G6S-2 DC12 |
| Width | 7.3mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HFD4 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Coil Resistance | 1000Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Aratas PCB Signal Relay, 12V dc Coil, 2A, DPDTBrand | Omron |
Key Features
- Suitable for PCB mounting applications with reliable silver alloy contacts.
- Operates at coil power consumption of 140mW ensuring high sensitivity.
- Compact ultra miniature size with dimensions 9.2mm height, 7.3mm width, and 14.8mm length.
- Wide operating temperature range from -40°C to 85°C for industrial environment use.
- High switching voltages up to 250V AC and 220V DC for versatile application.
- Long terminals designed for enhanced soldering and mounting reliability.
- Fully sealed construction providing excellent dielectric and impulse withstand strength.
- Manufactured in China with coil resistance of 1000Ω.
Product Description
Omron G6S-2 DC12 Signal Relay is a robust and compact PCB mounted relay designed for applications requiring double-pole double-throw (DPDT) switching with a 2A current rating. The 12V DC coil operates efficiently with only 140mW power consumption, providing high sensitivity suitable for various electrical and automation control circuits.
The relay features silver alloy contacts for reliable switching performance and a fully sealed construction offering high dielectric strength between coil and contacts (2000Vac) as well as between contacts of different polarity (1500Vac). This design ensures long-term durability and protection in harsh industrial environments.
Its mechanical dimensions are ultra miniature with 9.2mm height, 7.3mm width, and 14.8mm length, making it ideal for space-constrained PCB designs. The relay operates across a wide temperature range from -40°C to 85°C, supporting applications from industrial automation to HVAC systems and manufacturing equipment.
The unit supports high switching voltages of up to 250V AC and 220V DC, making it versatile across a variety of signal relay use cases. The long terminals facilitate improved soldering stability for PCB mounting.
Manufactured in China under the Omron brand, this model belongs to the HFD4 series and features a coil resistance of 1000Ω, further enhancing its control precision and energy efficiency.
Suitable for industrial, electrical control, and automation systems. Compact and lightweight for high-density PCB installations. Reliable switching with silver alloy contact material. Wide temperature tolerance ensuring operational stability across environments.
Fully sealed casing to prevent contamination and enhance longevity. Compliance with various industrial quality requirements though formal approvals are not listed. Explore more Signal Relay solutions in the Electronics & Electricals category at EnvMart for quality assured industrial components and automation accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating of this relay is 2A.
The dimensions of the relay are 9.2mm in height, 7.3mm in width, and 14.8mm in length.
The coil voltage for this model is 12V DC.
This relay can switch up to 250V AC and 220V DC.
The relay features a double-pole double-throw (DPDT) contact configuration.
The coil resistance of this relay is 1000Ω.
The coil power consumption is 140mW.
The relay operates within a temperature range of -40°C to 85°C.
The contacts of this relay are made of silver alloy.
The relay features long terminals designed for enhanced soldering and mounting reliability.
Yes, it is suitable for various industrial applications, including automation and HVAC systems.
This relay is manufactured in China.
