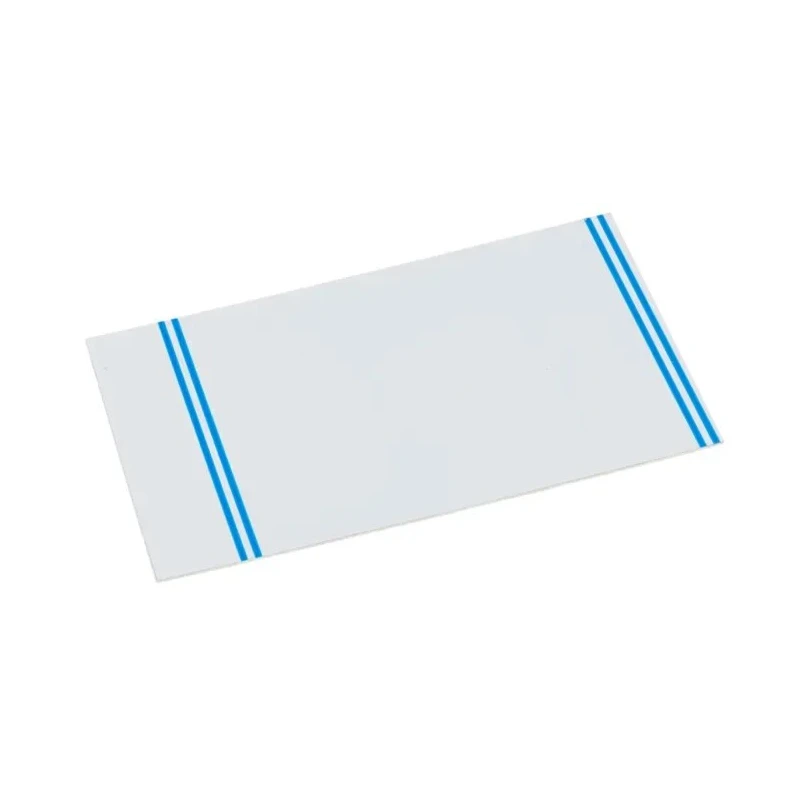

CIF Photoresist Board Epoxy Glass Fabric Laminate 2 Sides 35 μm Copper, 0.8mm Width, 300mm Length ABB20
Specifications
| Country of Origin | France |
|---|---|
| Brand | CIF |
| Length | 300mm |
| Model | ABB20 |
| Width | 0.8mm |
| Fire Resistance | UL 94-V0 |
| Board Material | Epoxy Glass Fabric Laminate |
| Number of Sides | 2 |
| Board Thickness | 200mm |
| FR Material Grade | FR4 |
| Copper Thickness | 35μm |
| Developer concentration | use sachet 160-9490 or 6-10g/l of Sodium or Potassium Hydroxide. Conduct trials if in doubt |
Key Features
- Manufactured from high-quality FR4 epoxy glass fabric laminate.
- Pre-sensitised board with professional-grade blue positive resin.
- Board thickness of 200 mm provides durability and rigidity.
- Fire resistance rating UL 94-V0 for enhanced safety.
- Suitable for PCB prototyping and ESD control applications.
- Copper thickness of 35 μm ensures reliable electrical conductivity.
- Complies with military standard P 13949F M12 13949F for quality assurance.
- Developer concentration requires sachet 160-9490 or 6-10 g/l of Sodium or Potassium Hydroxide; conduct trials if unsure.
Product Description
CIF ABB20 photoresist board epoxy glass fabric laminate is designed for professional PCB prototyping and ESD control in industrial, laboratory, and electronic component manufacturing applications. It consists of an epoxy glass fabric laminate base material with 2 sides coated with a 35 μm thick copper layer, providing excellent electrical conductivity and reliability.
The board measures 300 mm in length and 0.8 mm in width with a robust 200 mm thickness, ensuring mechanical stability during processing and handling. The board incorporates a fire resistance rating of UL 94-V0, contributing to enhanced safety in electronic systems.

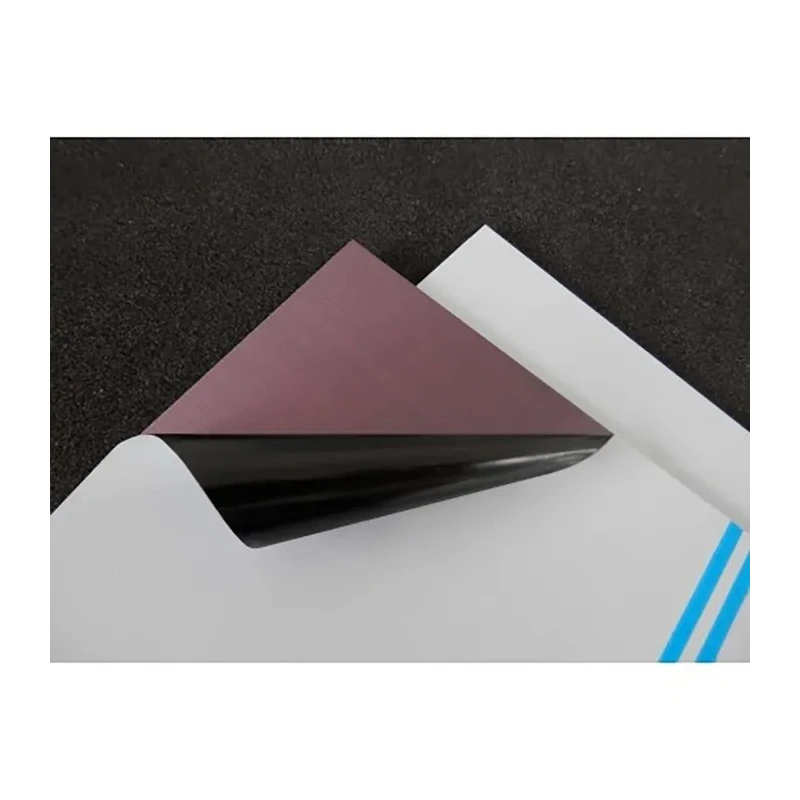

This pre-sensitised laminate features a blue coloured positive resin for high-quality photoresist performance. It complies with military standard P 13949F M12 13949F to meet demanding professional standards.
Recommended developer concentration uses sachet 160-9490 or 6-10 grams per litre of Sodium or Potassium Hydroxide; careful trials are advised to optimize processing parameters. The board's country of origin is France, reflecting high manufacturing quality and consistency.
Common industrial applications include PCB prototyping, ESD control, cleanroom environments, and electronic component fabrication. This board is suitable for electronics manufacturing and research laboratories requiring precision circuit prototypes.
Manufactured from high-quality FR4 epoxy glass fabric laminate. Two-sided copper cladding with 35 μm thickness. Board dimensions: 300 mm length × 0.8 mm width × 200 mm thickness. UL 94-V0 fire resistance rating. Compliant with military standard P 13949F M12 13949F.
Pre-sensitised with blue coloured positive resin photoresist. Developer concentration options for optimized processing. Produced in France for assured quality. Ideal for professional PCB prototyping and ESD control. Explore the Electronics Components category to find a wide range of prototyping solutions and related products on EnvMart.
