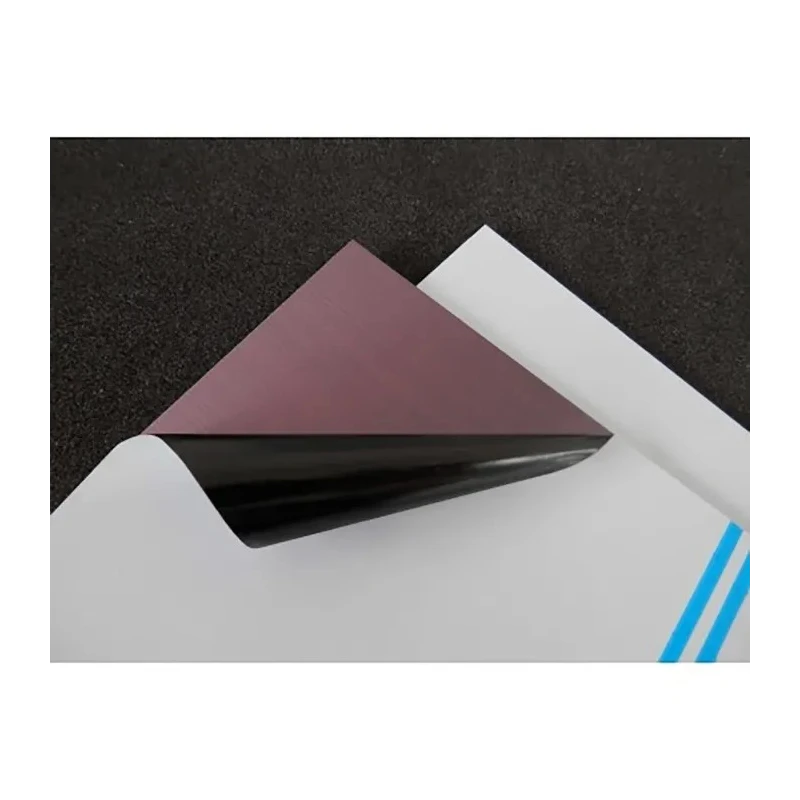

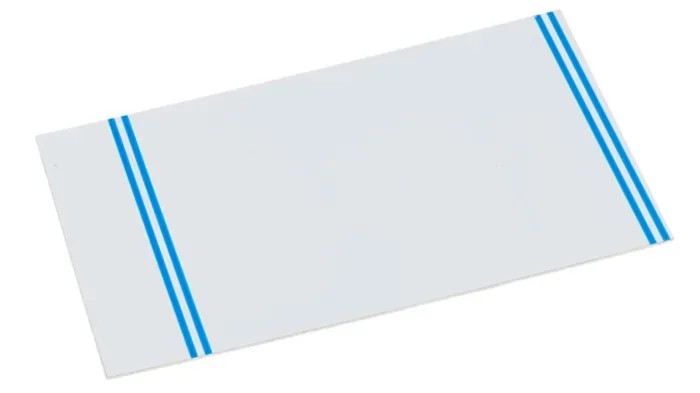

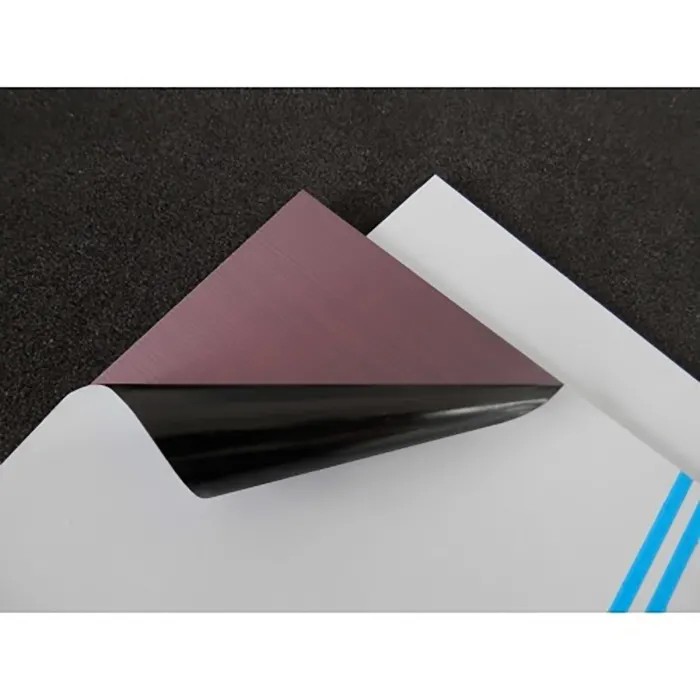

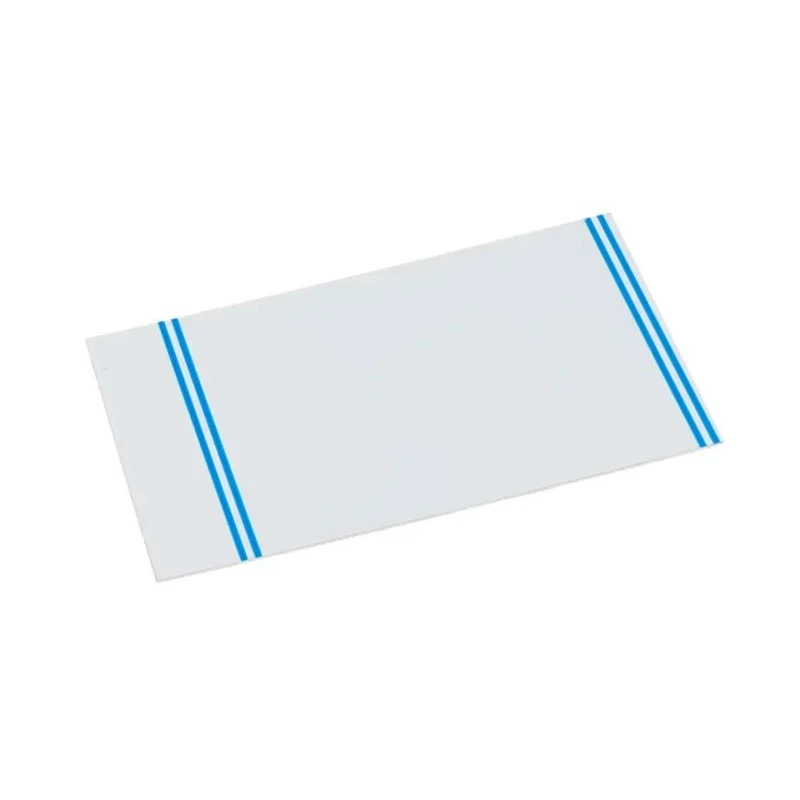

CIF Photoresist Board Marble Resin 160 mm Length, 0.8 mm Width, 35 μm Copper Thickness, 2 Sided ABB16

CIF ABB16 Photoresist Board Marble Resin is a professional quality, double-sided pre-sensitised prototyping board designed for advanced electronics development and PCB prototyping applications. It features a strong and stable marble resin board substrate with a length of 160 mm and a narrow width of 0.8 mm, allowing for precise and compact circuit design.

The board carries a 35 μm copper thickness layer on both sides, suitable for fine trace work and robust electrical connectivity. The FR4 glass-epoxy material grade ensures excellent flame retardant properties, compliant with UL 94-V0 fire safety standards, providing reliability in laboratory and industrial environments.

This photoresist board has a thickness of 4.5 μm, manufactured to meet military standards MIL and professional PCB prototyping quality. Its blue coloured positive resin resist coating facilitates straightforward exposure and development processes using recommended developers such as sachet 160-9490 or 6-10g/l Sodium or Potassium Hydroxide solutions, with trials advised if uncertainties arise.

Made in France, the board is tested and approved for UL and CSA certifications for electronic components, ensuring safety and performance excellence. It is ideal for use in electronics research, development labs, manufacturing testing, and educational prototyping scenarios.

The board is made from durable marble resin material suitable for demanding electronic prototyping tasks. It features a FR4 glass-epoxy flame-retardant substrate with UL 94-V0 fire resistance rating. Complies with military standards MIL and professional quality with blue coloured positive photoresist.

Board thickness is precisely 4.5 μm, ensuring reliable fabrication accuracy. Designed for use with developers such as sachet 160-9490 or 6-10g/l Sodium or Potassium Hydroxide. Certified to UL and CSA standards for superior electrical safety and performance.

Manufactured in France to stringent quality and performance criteria.

This photoresist board provides an excellent foundation for precise PCB prototyping in industrial, laboratory, and educational settings. Browse more Copper Clad Boards and prototyping materials on EnvMart for comprehensive PCB manufacturing solutions.
