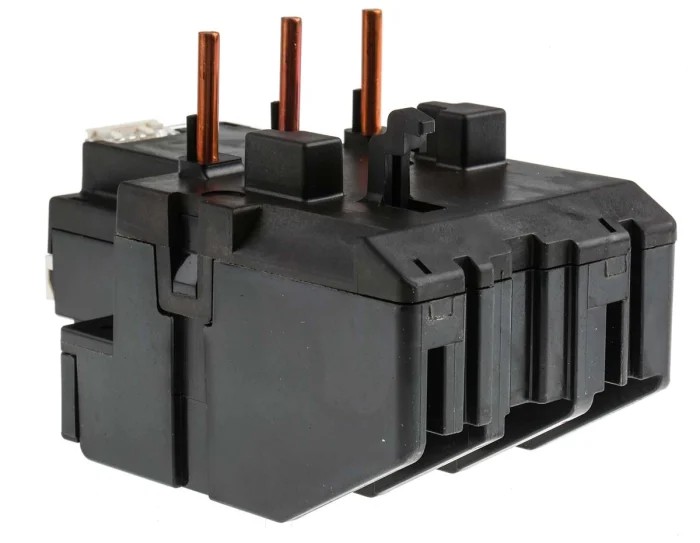

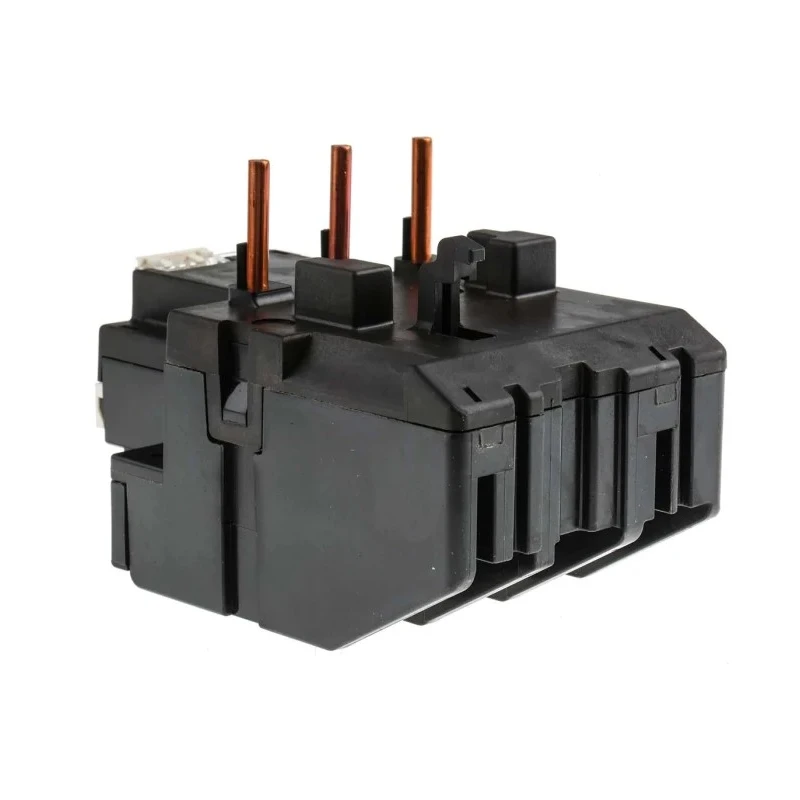

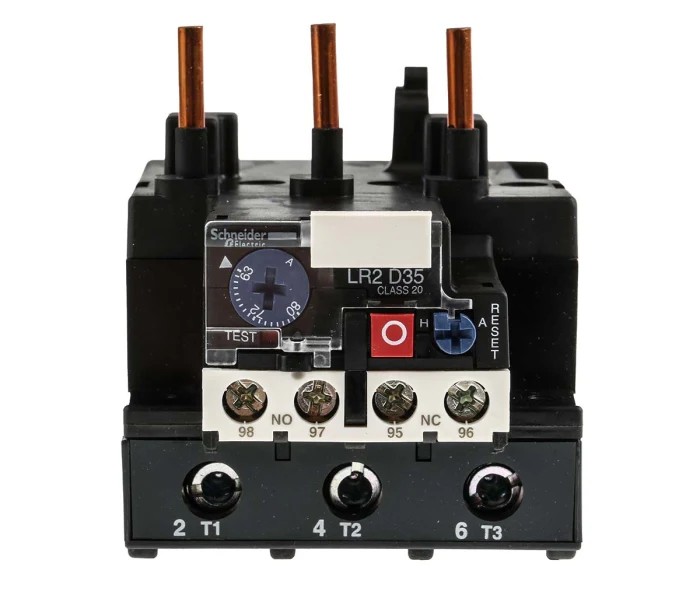

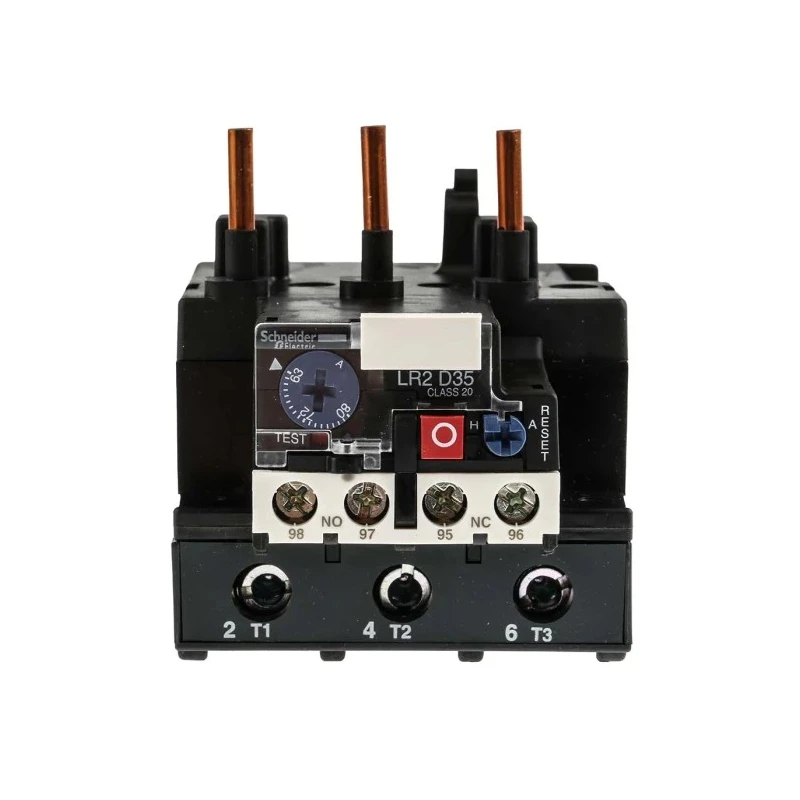

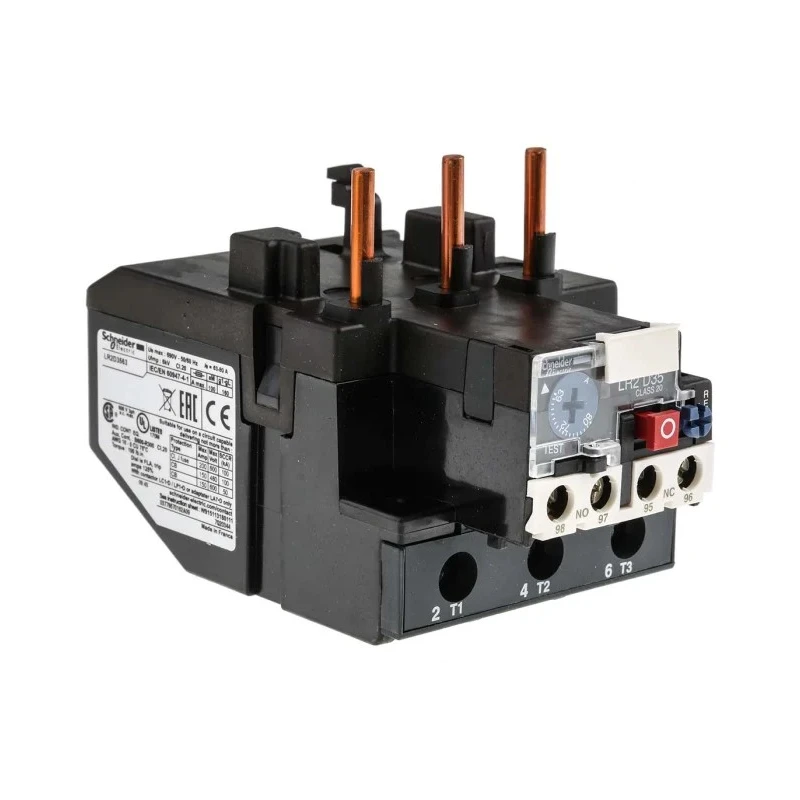

Schneider Electric TeSys Thermal Overload Relay 1 NO/1 NC, 63A, 80 A F.L.C, 80A Contact Rating, 37 kW, 6kV LR2D3563

Name: Schneider Electric TeSys Thermal Overload Relay 1 NO/1 NC, 63A, 80 A F.L.C, 80A Contact Rating, 37 kW, 6kV LR2D3563
Brand: Schneider Electric
SKU: 147793
Price: 478.15 USD
Availability: InStock



Category Overload Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Length	121mm
Model	LR2D3563
Depth	100mm
IP Rating	IP20
Width	75mm
Mount Type	DIN Rail
Series	TeSys
Power Rating	37kW
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Supply Voltage	1000V ac
Contact Voltage	1kV ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Better World Claim	Designed for Disassembly
Relay Contact Current	80A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
Control Voltage	6kV
FLC Motor Rating	63, 80A
Adjustable Current Range	63 → 80 A

Key Features

Equipped with 1 normally open and 1 normally closed contact configuration for versatile control.
Supports motor full load current ratings of 63A and 80A for flexible motor protection.
Features screw terminal type for easy installation and reliable connectivity.
Suitable for DIN rail mounting with compact dimensions of 75mm width, 121mm length, and 100mm depth.
Includes automatic and manual reset methods to ensure operational reliability.
Operates within a wide temperature range from -20°C to 60°C for varied industrial environments.
Includes 2 auxiliary contacts to support diverse circuit configurations.
Designed to handle a relay contact current of 80A and contact voltage up to 1kV ac.

Product Description

Schneider Electric LR2D3563 is a TeSys series thermal overload relay designed to protect three-phase motors by providing precise thermal regulation within a current range of 63 to 80 amperes and a power rating of 37 kW. Featuring a compact DIN rail mount design, it measures 75mm in width, 121mm in length, and 100mm in depth, making it easy to integrate into various industrial control panels.

The relay includes a 3-pole configuration with 1 normally open and 1 normally closed contact, allowing flexible circuit implementation. Its screw terminals simplify installation and ensure secure electrical connections. It operates reliably in harsh conditions with a wide operating temperature range from -20°C to 60°C.

This device supports both automatic and manual reset modes, enhancing operational resilience. It is compliant with major industrial standards including CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, and UL 60947-4-1, ensuring high safety and performance benchmarks.

Applications include motor protection in industrial automation, manufacturing plants, and electrical control systems where reliable thermal monitoring and phase failure sensitivity are critical. The relay is suitable for combination with LC1D80 and LC1D95 contactors and compatible with AC and DC network types, which enhances its versatility across various installations.

Equipped with 1 NO and 1 NC contact for diverse control needs. Adjustable current range of 63 to 80 A for tailored motor protection. Compact DIN rail mounting with screw terminal connections. Automatic and manual reset methods for flexible operation.

Wide operational temperature range from -20°C to 60°C. Two auxiliary contacts for expanded circuit configurations. Compliance with CSA, EN/IEC, and UL safety standards. Support for 1kV contact voltage and 6kV control voltage ratings.

Suitable for use in industrial and automation applications for motor safeguarding.

This Schneider Electric thermal Overload Relay is part of the TeSys product line, crafted to offer precision, safety, and operational ease within demanding industrial environments. It ensures prolonged motor life and system protection through its advanced thermal sensing and overload detection features.

Explore more Schneider Electric products and accessories to enhance your electrical control solutions on EnvMart.
