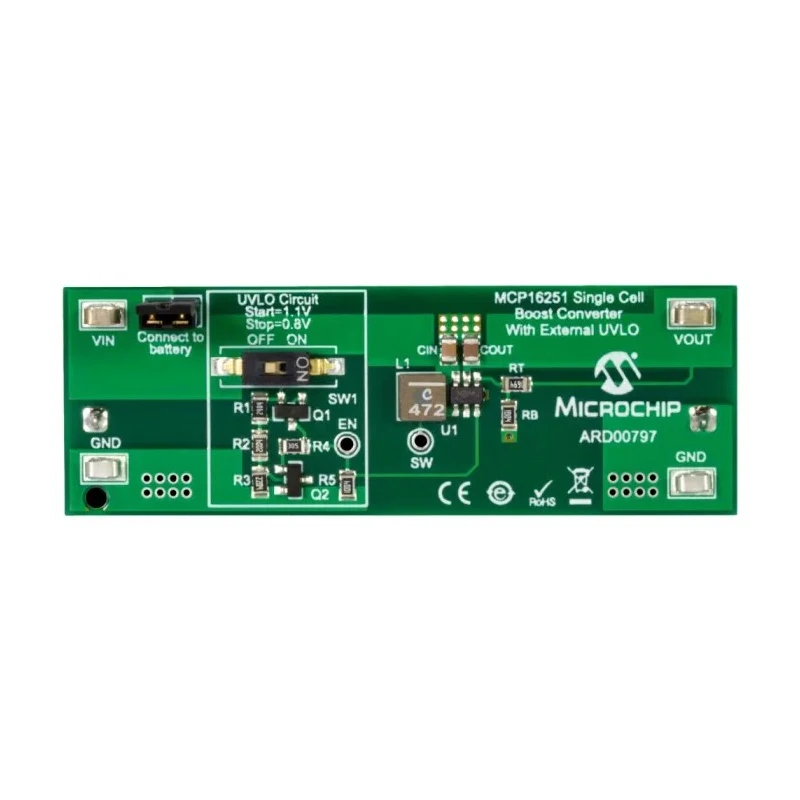

Microchip Single Cell Boost Converter Evaluation Board with MCP16251 Ultra Low Power Boost Converter ARD00797
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | ARD00797 |
| Output Voltage | 3.3V |
| For Use With | Cell |
| Standards/Approvals | ISO |
| Kit Classification | Evaluation Board |
| Featured Device | MCP16251 |
| Kit Name | Single Cell Boost Converter |
| Typical Efficiency | Up to 96% |
Key Features
- The evaluation board features the MCP16251 boost converter designed for cell-powered devices.
- Input voltage supports one AA primary or rechargeable battery for versatile usage.
- Output voltage is fixed at 3.3V with an output current of less than 125 mA.
- Typical efficiency reaches up to 96%, ensuring efficient power conversion.
- Includes an external under-voltage lockout circuit preventing operation below 1.14V and stopping below 0.83V to protect battery health.
- Low quiescent current drain at 0.1-0.4 µA before start-up and 1-2 µA after start-up enhances battery life.
- Automatic PFM/PWM operation optimizes switching for load and power conditions.
Product Description
Microchip ARD00797 Single Cell Boost Converter Evaluation Board is engineered for efficient power management in applications powered by a single AA cell battery. This evaluation board integrates the MCP16251 ultra low power boost converter with an external under-voltage lockout (UVLO) circuit featuring hysteresis to optimize battery usage and prolong operational life.
The device offers an input voltage compatible with one AA primary or rechargeable battery, delivering a stable 3.3V output voltage with currents under 125 mA. It achieves typical efficiency up to 96%, providing superior power conversion performance suitable for portable and low power applications.
The external UVLO circuit ensures the converter does not restart if the battery voltage falls below 1.14V and ceases operation if it drops under 0.83V, protecting the battery from deep discharge. This circuit draws an ultra-low current of approximately 0.1-0.4 µA before start-up and 1-2 µA after startup, minimizing battery drain.
The automatic PFM/PWM operation mode allows the converter to adapt switching behavior for optimal performance across varied load conditions, making it an ideal boost regulator solution for single-cell projects.
Evaluation board featuring MCP16251 boost converter for AA cell powered devices. Input voltage from one AA primary or rechargeable battery. Stable 3.3V output voltage with less than 125 mA output current. High typical efficiency reaching 96% for energy savings.
External UVLO circuit with hysteresis prevents battery damage. Extremely low quiescent currents to extend battery life. Automatic PFM/PWM switching for load adaptability.
This product suits industrial, laboratory, and embedded electronics applications requiring compact, efficient single-cell power boost solutions. Browse other power management and converter products at EnvMart to find compatible development tools and evaluation boards.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this evaluation board is fixed at 3.3V.
It is designed to work with one AA primary or rechargeable battery.
The maximum output current is less than 125 mA.
The typical efficiency reaches up to 96%, ensuring efficient power conversion.
Yes, it includes an external under-voltage lockout circuit that prevents operation below 1.14V and stops below 0.83V to protect battery health.
The quiescent current drain is approximately 0.1-0.4 µA before startup and 1-2 µA after startup.
It features automatic PFM/PWM operation, optimizing switching for load and power conditions.
This evaluation board is compliant with ISO standards.
The country of origin for the evaluation board is India.
It is suitable for industrial, laboratory, and embedded electronics applications requiring compact, efficient single-cell power boost solutions.
The kit classification for this product is an Evaluation Board.
The featured device in this evaluation board is the MCP16251 ultra low power boost converter.
