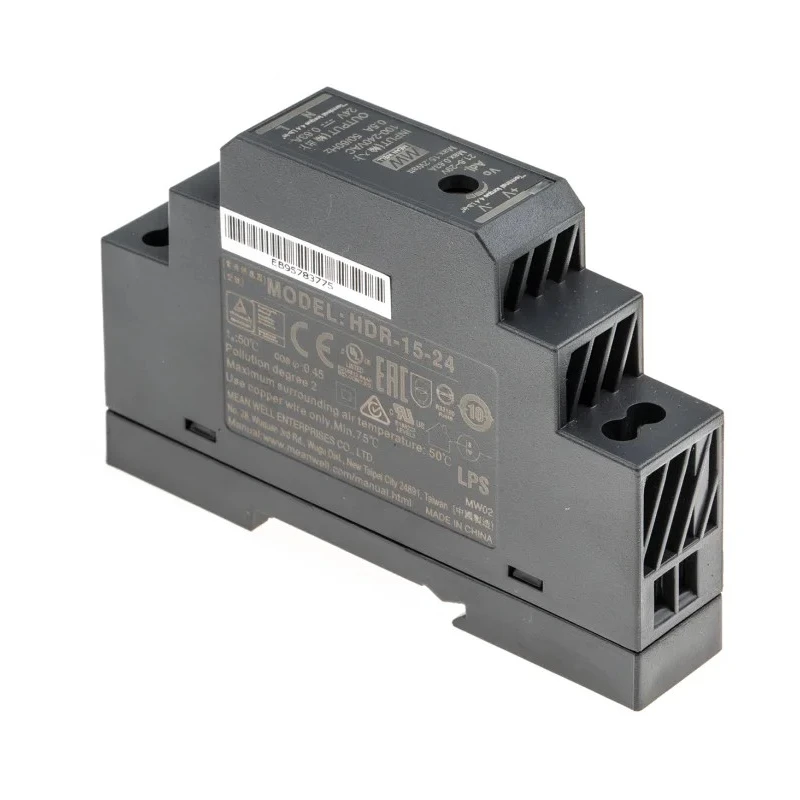

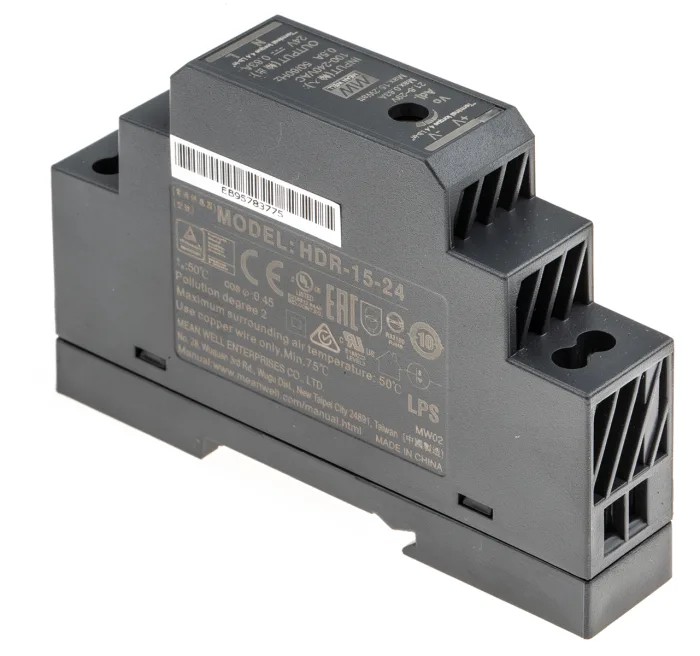

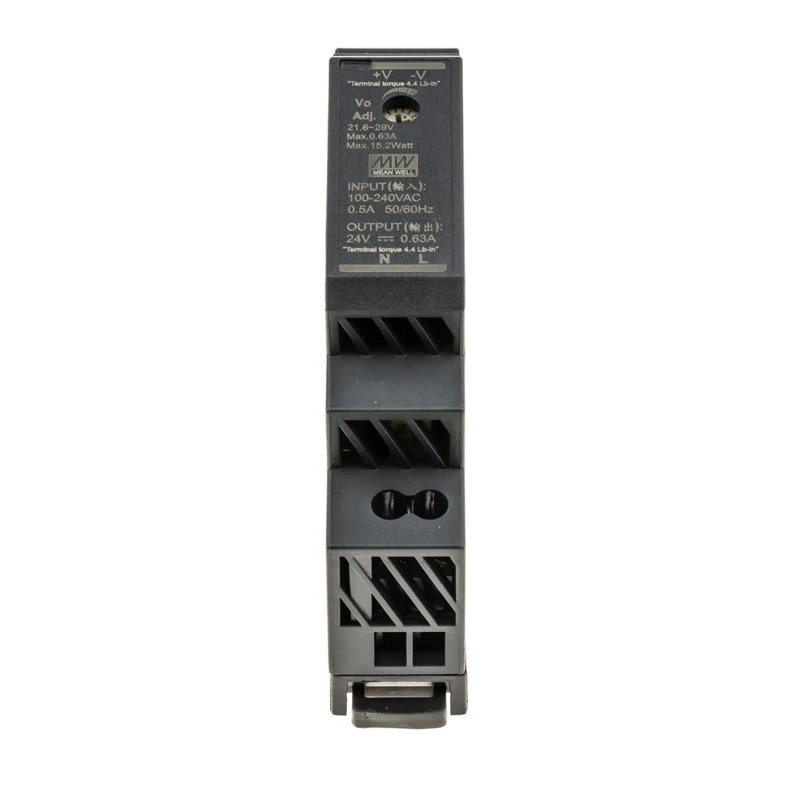

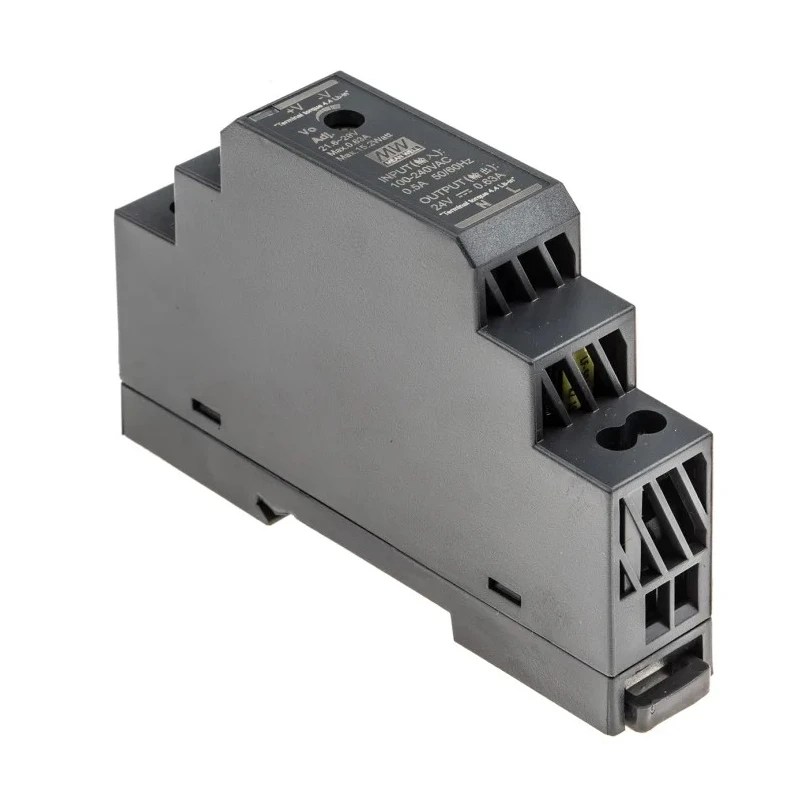

MEAN WELL Ultra Slim Switched Mode DIN Rail Power Supply AC/DC Input 85V ac to 370V dc 24V dc 630mA Output 15.2W HDR-15-24

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Ultra Slim Switched Mode DIN Rail Power Supply AC/DC Input 85V ac to 370V dc 24V dc 630mA Output 15.2W HDR-15-24

Name: MEAN WELL Ultra Slim Switched Mode DIN Rail Power Supply AC/DC Input 85V ac to 370V dc 24V dc 630mA Output 15.2W HDR-15-24
Brand: MEAN WELL
SKU: 147081
Price: 21.01 USD
Availability: InStock



Category Power Supply Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	15.2W
Efficiency	86%
Height	90mm
Model	HDR-15-24
Depth	54.5mm
Width	17.5mm
Series	Ultra Slim
Output Current	630mA
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Electrical Phase	1
Standards/Approvals	UL, TUV EN 609501, RoHS
Maximum Output Voltage	24V dc
Minimum Input Voltage	85V ac

Key Features

This power supply supports a wide AC/DC input voltage range from 85V AC to 370V DC.
Compact, slim plastic housing designed for TS-35/7.5 or TS-35/15 DIN rail mounting.
High efficiency of 86% ensures reliable energy conversion and reduced heat generation.
Operating temperature range from -30°C to 70°C suits diverse industrial environments.
Protection class II isolation enhances electrical safety in installations.
Adjustable DC output voltage provides flexibility for various applications.
No load power consumption is minimized to improve overall system efficiency.
Conforms to UL, TUV EN 60950-1, and RoHS standards for safety and environmental compliance.

Product Description

MEAN WELL HDR-15-24 is an ultra slim switched mode DIN rail power supply designed for industrial and commercial applications requiring compact, reliable DC power. It supports a broad AC/DC input voltage range of 85V AC up to 370V DC, making it adaptable to various power sources.

The device delivers a stable 24V DC output at 630 mA with a total power of 15.2 watts, suitable for low-power electronic control systems and automation equipment. The stepped shape plastic housing is engineered for space-saving installation on standard TS-35/7.5 or TS-35/15 DIN rails, widely used in electrical cabinets and control panels.

With an operating temperature range from -30°C to +70°C and efficiency of 86%, the power supply ensures robust performance across industrial environments.

The unit is classified as isolation class II, which enhances safety against electrical hazards, and it complies with key certifications including UL, TUV EN 60950-1, and RoHS regulations.

This power supply supports a wide AC/DC input voltage range from 85V AC to 370V DC. Compact, slim plastic housing designed for TS-35/7.5 or TS-35/15 DIN rail mounting. High efficiency of 86% ensures reliable energy conversion and reduced heat generation.

Operating temperature range from -30°C to 70°C suits diverse industrial environments. Protection class II isolation enhances electrical safety in installations. Adjustable DC output voltage provides flexibility for various applications.

No load power consumption is minimized to improve overall system efficiency. Conforms to UL, TUV EN 60950-1, and RoHS standards for safety and environmental compliance.

This MEAN WELL DIN rail Power Supply is ideal for use in industrial automation, building control systems, electronics manufacturing, and laboratory equipment requiring compact and reliable DC power sources.
