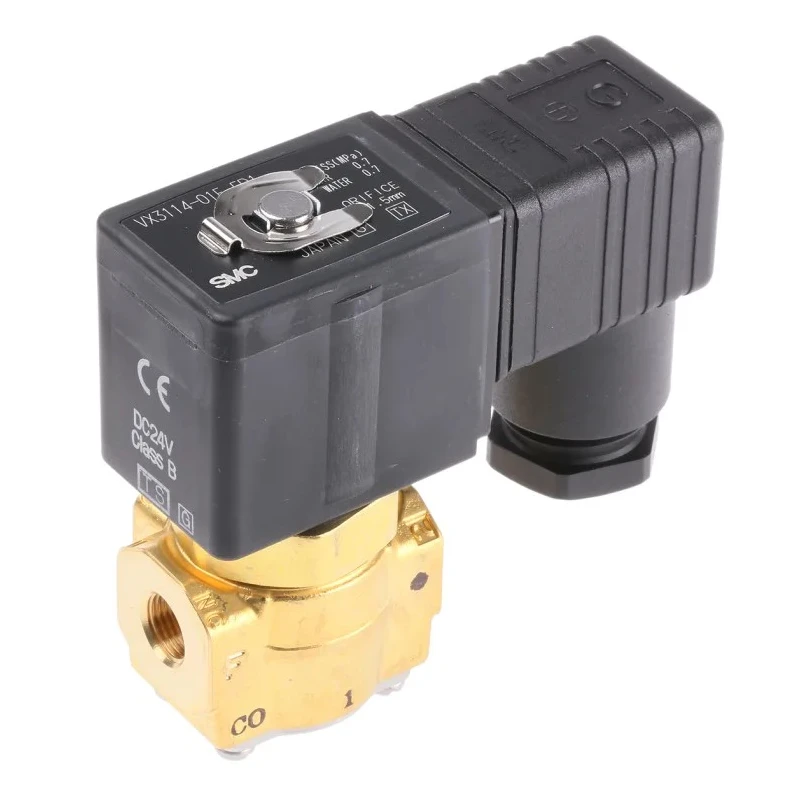

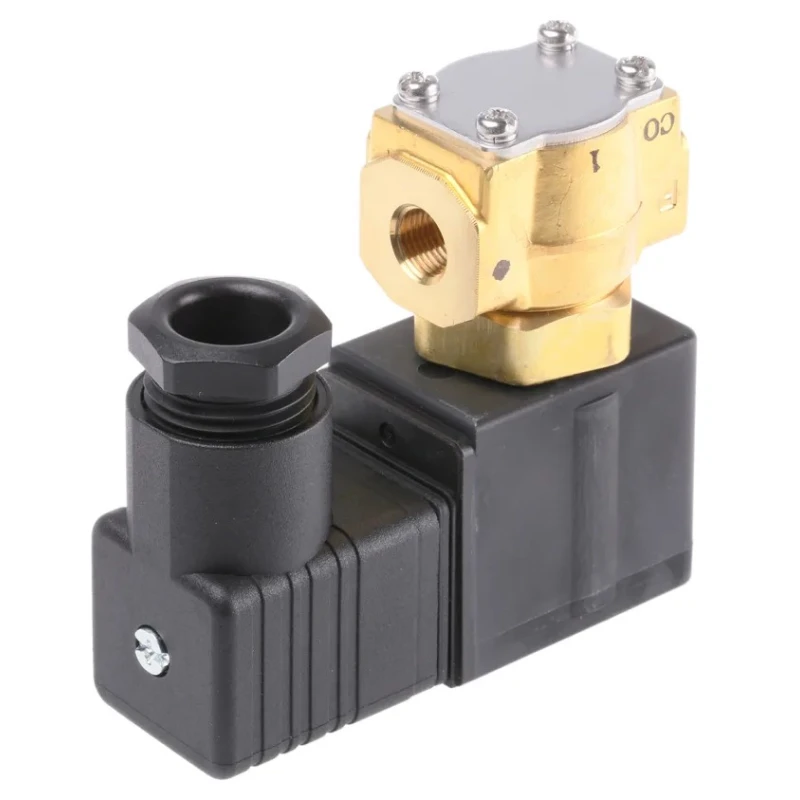

SMC Solenoid Valve 3 Port Brass Body 24V 1/8 in G VX3114-01F-5D1

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Valve 3 Port Brass Body 24V 1/8 in G VX3114-01F-5D1



Category Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	France
Brand	SMC
Body Material	Brass
Maximum Operating Pressure	10 bar
Model	VX3114-01F-5D1
Series	VX31
Number Of Ports	3
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Orifice Diameter	1.5mm
Supply Voltage	24V
Inlet Port Size	1/8 in G
Default Valve Position	Common
SMC Solenoid Valve VX3334A-03F-5D1, 3 Port, Common, 24V dc 1/4 in GBrand	SMC
SMC Solenoid Valve VX3114A-01F-5DO1, 3 Port, Common, 24V dc 1/8 inBrand	SMC

Key Features

This solenoid valve belongs to the VX31 series providing direct acting control.
It has a 3-port configuration with a common default valve position.
The valve is capable of operating at a maximum pressure of 10 bar.
The orifice diameter is 1.5 mm allowing precise flow control.
The valve body is made from durable brass material ensuring long service life.
The coil enclosure is IP65 rated, offering protection against dust and water ingress.
Designed for operating temperatures from -20°C to 60°C.
It supports DIN electrical connection and is available with Class B and Class H coil options.

Product Description

The SMC VX3114-01F-5D1 Solenoid Valve is a direct acting, 3-port valve designed for controlling airflow, water, oil, and steam in industrial, mechanical, and fluid power systems. This model features a brass body for robust construction and reliable operation under a pressure rating up to 10 bar. Its compact design includes a 1/8 inch G inlet port size suitable for versatile pipeline connections.

Operating at 24V supply voltage, the valve is engineered to function efficiently within temperatures ranging from -20°C to 60°C. The coil has an IP65 enclosure, providing excellent protection against dust and moisture, making it suitable for challenging industrial environments.

The VX3114-01F-5D1 is part of the well-regarded VX31 series, known for ease of maintenance and valve replacement without disturbing existing piping. Its 3-port common configuration and 1.5 mm orifice diameter offer effective fluid control. The valve supports DIN electrical connections and offers coils with Class B & H insulation, suitable for various operation demands.

The valve seals can be replaced with NBR, FKM, or EPDM materials to suit different media and environmental conditions, enhancing durability and performance. Manufactured in France, this Solenoid Valve meets stringent quality and reliability standards.

This valve is widely used in industrial automation, HVAC systems, water treatment plants, and manufacturing facilities. Its materials and construction allow usage in air, oil, water, and steam handling applications. The product is designed for endurance and long life with minimal maintenance.

Compact and lightweight design facilitates simple installation and integration. The valve offers noise reduction capabilities due to precise flow control and sealing. Explore EnvMart's broad range of industrial valves and accessories to find compatible components and enhance your system performance.
