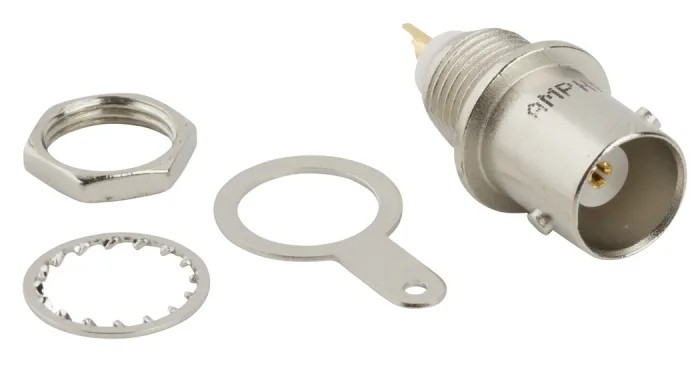

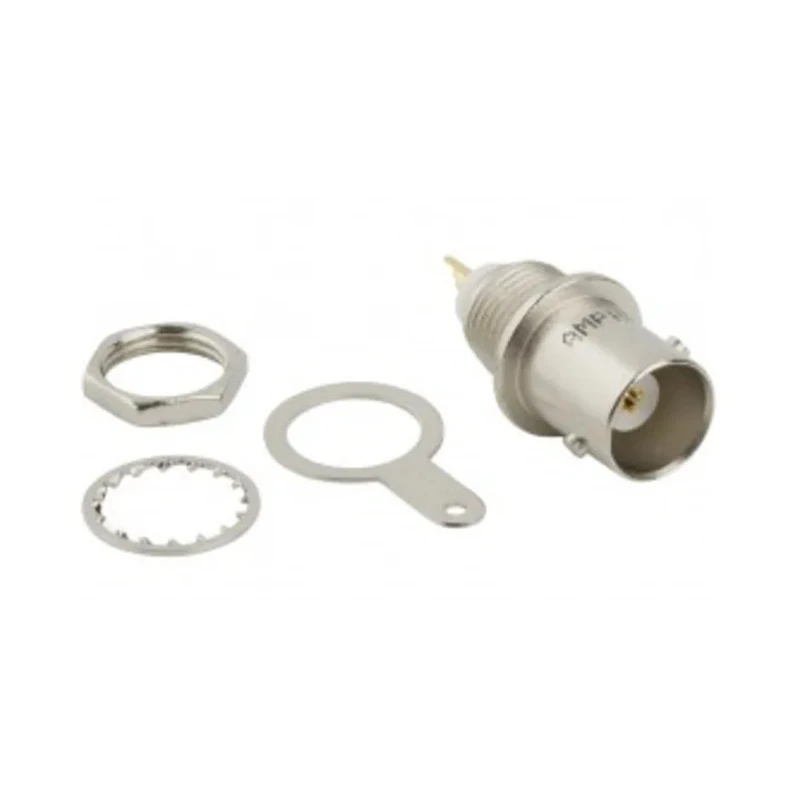

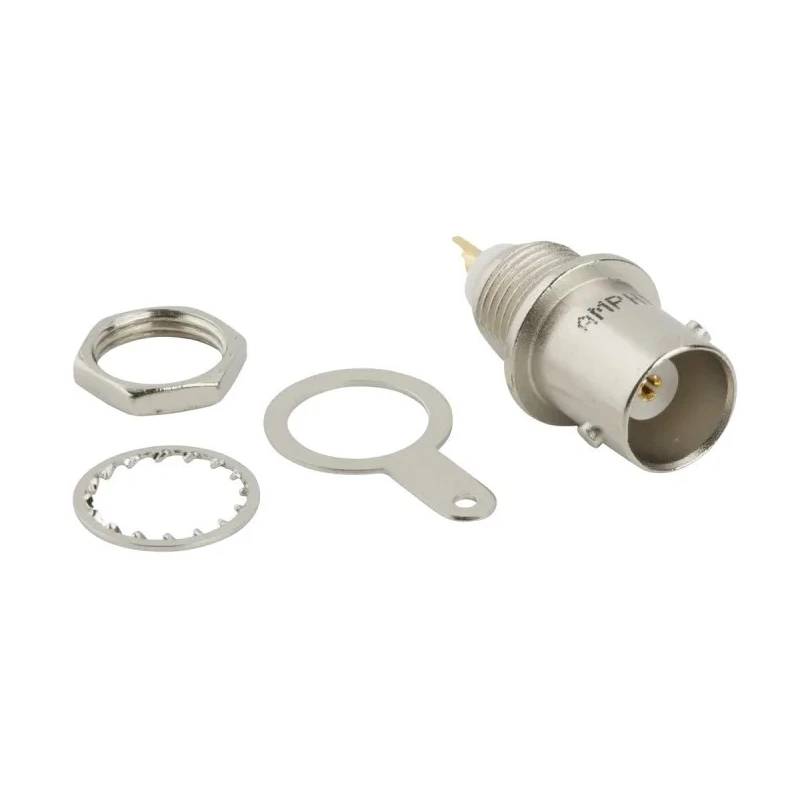

Amphenol RF BNC Series RF Connector Panel Mount Female BNC 50 Ω Straight Body Solder 031-221-RFX

Free Delivery in India | Lowest Global Shipping Charges

Amphenol RF BNC Series RF Connector Panel Mount Female BNC 50 Ω Straight Body Solder 031-221-RFX

Name: Amphenol RF BNC Series RF Connector Panel Mount Female BNC 50 Ω Straight Body Solder 031-221-RFX
Brand: Amphenol RF
SKU: 146330
Price: 3.85 USD
Availability: InStock



Category Coaxial Connectors Brand Amphenol RF Condition New

Specifications

Country of Origin	China
Size	Standard
Brand	Amphenol RF
Orientation	Straight
Model	031-221-RFX
Mount Type	Panel Mount
Operating Frequency	4GHz
Contact Material	Phosphor Bronze
Series	BNC
Termination Type	Solder
Maximum Operating Temperature	+165°C
Cable Type	Coaxial
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	BNC
Body Plating	Nickel

Key Features

Bayonet coupling mechanism allows quick connect and disconnect with a positive locking action.
Supports operating frequencies up to 4 GHz suitable for RF applications.
Constructed with nickel-plated body and gold-plated phosphor bronze contacts for durability and excellent conductivity.
Panel mount design with bulkhead feature enables secure installation.
Operates reliably across temperature range from -65°C to +165°C.
Solder termination type ensures robust cable attachment.
Standard BNC size connector compatible with various RG cables.
Female connector gender with normal polarity for standard interface.

Product Description

Amphenol RF 031-221-RFX is a BNC Series RF Connector designed for panel mount applications with a female BNC connector featuring a straight body and solder termination. This connector operates at 50 Ω impedance and supports frequencies up to 4 GHz, making it suitable for various RF coaxial cabling requirements in industrial, telecommunications, electronics, and laboratory equipment.

The bayonet coupling offers a secure and rapid quarter-turn connection and disconnection. Constructed with a nickel-plated body for corrosion resistance and phosphor bronze contacts plated with gold for excellent signal conductivity, this connector ensures long-lasting, reliable performance.

The panel mount bulkhead style enables firm attachment to equipment panels and enclosures. Operating across a wide temperature range from -65°C to +165°C, it performs well in challenging environmental conditions. The solder termination type provides a sturdy electrical and mechanical connection for coaxial cables.

Standard size compliance ensures compatibility with common RG series cables and related accessories. With a female connector gender and normal polarity, the 031-221-RFX supports standardized mating with male BNC plugs.

Bayonet coupling provides secure, quick mating and unmating. 50 Ω impedance matches system requirements for RF connectivity. Nickel-plated body and gold-plated contacts assure durability and signal integrity. Panel mount bulkhead style suited for robust equipment installation.

Wide operating temperature range accommodates harsh industrial environments. Solder termination secures cable connections reliably. Standard size and normal polarity ensure wide compatibility. Manufactured in China, new condition guaranteed for quality assurance.

This panel mount female BNC connector is ideal for use in electronics manufacturing, testing and measurement equipment, RF communication systems, broadcasting, and other industrial applications requiring dependable coaxial connectivity.
