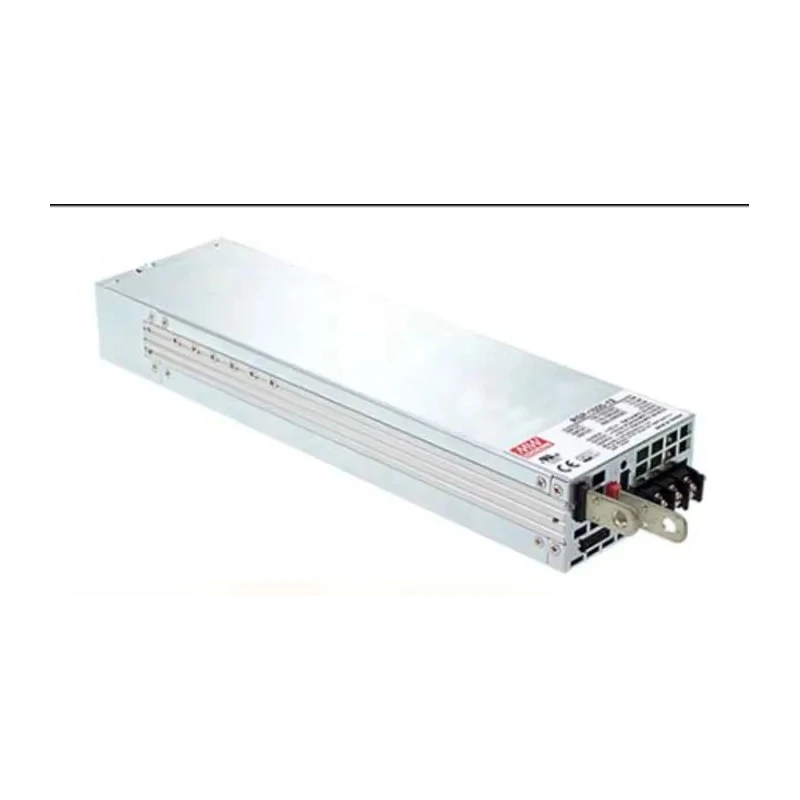

MEAN WELL RSP-1600-48 Switching Power Supply 48V DC, 1.6 kW Output Power, 90-370V AC/DC Input, Surface Mount RSP-1600-48

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL RSP-1600-48 Switching Power Supply 48V DC, 1.6 kW Output Power, 90-370V AC/DC Input, Surface Mount RSP-1600-48

Name: MEAN WELL RSP-1600-48 Switching Power Supply 48V DC, 1.6 kW Output Power, 90-370V AC/DC Input, Surface Mount RSP-1600-48
Brand: MEAN WELL
SKU: 146269
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	1.6kW
Efficiency	93%
Length	300mm
Model	RSP-1600-48
Depth	41mm
Gross Weight	1.8kg
Width	41mm
Mount Type	Surface
Series	RSP-1600
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Maximum Output Voltage	48V dc
SMPS Output Current	33.5A
Minimum Input Voltage	90V ac

Key Features

Supports a maximum output voltage of 48 V DC.
Delivers a constant output current of 33.5 A.
Built-in active power factor correction (PFC) increases efficiency.
Compact surface mount design with dimensions 300 mm x 41 mm x 41 mm.
Wide operating temperature range from -30°C to 70°C.
High efficiency rate of up to 93% ensures energy savings.
Equipped with forced air cooling via built-in DC fan for enhanced thermal management.
Includes remote ON-OFF control, remote sense, auxiliary power, DC OK signal, and over-temperature protection alarm.

Product Description

MEAN WELL RSP-1600-48 is a high-performance switching power supply offering 48 V DC output voltage and 1.6 kW power capacity. It operates with a universal AC input voltage range of 90 to 264 V AC and a maximum DC input of 370 V, making it adaptable for diverse industrial applications.

Its surface mount construction with compact dimensions 300 mm length, 41 mm width, and 41 mm depth, coupled with a lightweight body of approximately 1.8 kg, makes installation convenient and space-efficient. The power supply is engineered for high efficiency reaching up to 93%, facilitated by an active power factor correction function enhancing energy performance.

The device includes advanced features such as forced air cooling with an internal DC fan, remote ON-OFF control, remote sensing capability to compensate for voltage drops, auxiliary power output, DC OK signaling for system monitoring, and an over-temperature alarm to prevent damage during thermal stress.

This switching power supply is suitable for applications in industrial automation, manufacturing, electronic equipment, control systems, and other demanding environments requiring reliable and efficient power delivery. It complies with multiple international safety and quality standards including UL 62368-1, AS/NZS62368.1, CCC, BSMI, CSA, EAC, IS standards, and TUV certification.

Supports a maximum output voltage of 48 V DC. Delivers a constant output current of 33.5 A. Built-in active power factor correction (PFC) increases efficiency. Compact surface mount design with dimensions 300 mm x 41 mm x 41 mm.

Wide operating temperature range from -30°C to 70°C. High efficiency rate of up to 93% ensures energy savings. Equipped with forced air cooling via built-in DC fan for enhanced thermal management. Includes remote ON-OFF control, remote sense, auxiliary power, DC OK signal, and over-temperature protection alarm.

Suitable for industrial and commercial power supply applications. Explore a wide range of MEAN WELL power supplies and accessories on EnvMart to find tailored solutions for all your electronic and industrial power requirements.
