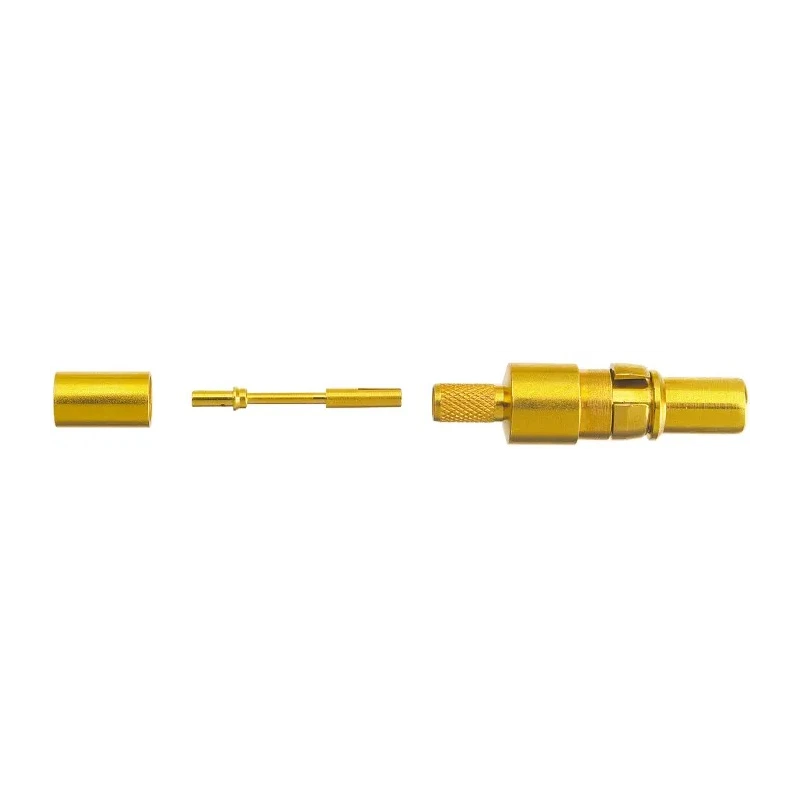

Harting D-Sub Mixed Series Size 188 AU 316 U RG 174 U Male Crimp D-Sub Connector Coaxial Contact Gold Plated 09692815140
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Harting |
| Length | 22.5mm |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | D-Sub Mixed |
| Termination Type | Crimp |
| Standards/Approvals | RoHS |
| Contact Plating | Gold Plated |
| Contact Size | 188 AU, 316 U, RG 174 U |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with copper alloy contact material ensuring durability.
- Gold plated contacts reduce contact resistance to a maximum of 10 milliohms.
- 22.5mm length suitable for mixed contact D-Sub shells applications.
- Designed for crimp style termination providing secure cable connection.
- Conforms to RoHS standards ensuring compliance with environmental regulations.
- Manufactured in the Czech Republic ensuring high-quality production standards.
- Compatible with various RG cables in industrial and electronics uses.
- Ideal for electronic components, power, and computing connector applications.
Product Description
Harting 09692815140 is a male crimp D-Sub connector designed under the D-Sub Mixed series featuring size 188 AU, 316 U, and RG 174 U coaxial contacts. The connector is fitted with gold-plated copper alloy contacts that deliver enhanced corrosion resistance, ensuring reliable electrical performance with a maximum contact resistance of 10 milliohms. Measuring 22.5mm in length, this crimp termination connector is suited for mixed contact D-Sub shells, typical in industrial electronics and power applications.
The connector meets RoHS regulatory standards, reflecting Harting's commitment to environmentally safe and high-quality components. Manufactured in the Czech Republic, this product is intended for demanding uses involving various RG cables, guaranteeing secure and durable connections in electronic assemblies, power distribution equipment, and communication devices.
This D-Sub Mixed male crimp connector is optimized for use in industrial electronics assembly, laboratory equipment, aerospace, and communication systems, where precision and reliability are paramount. It is part of Harting's DIN 41652 T1 D-Sub connector range, known for compatibility and performance across mixed cable applications including coaxial contacts.
Constructed with copper alloy contact material ensuring durability. Gold plated contacts reduce contact resistance to a maximum of 10 milliohms. 22.5mm length suitable for mixed contact D-Sub shells applications. Designed for crimp style termination providing secure cable connection.
Conforms to RoHS standards ensuring compliance with environmental regulations. Manufactured in the Czech Republic ensuring high-quality production standards. Compatible with various RG cables in industrial and electronics uses.
Ideal for electronic components, power, and computing connector applications.
Harting's D-Sub Mixed series connectors are a reliable choice for engineers and technicians requiring high-quality coaxial D-sub contacts with mixed configurations. Browse the Electronics & Electricals > Power Connectors > D-Sub Connector category on EnvMart for a comprehensive selection of compatible connector accessories and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This male crimp D-Sub connector measures 22.5mm in length.
The maximum contact resistance is 10 milliohms, ensuring reliable electrical performance.
The contacts are constructed from a copper alloy and are gold plated to enhance corrosion resistance.
It conforms to RoHS standards, ensuring compliance with environmental regulations.
This model features a crimp termination type, providing a secure cable connection.
This connector is compatible with contact sizes 188 AU, 316 U, and RG 174 U.
It is manufactured in the Czech Republic, ensuring high-quality production standards.
It is ideal for use in industrial electronics assembly, laboratory equipment, aerospace, and communication systems.
Yes, it is designed to be compatible with various RG cables used in industrial and electronics applications.
This connector is part of the D-Sub Mixed series, known for its mixed contact configurations.
It is used for electronic components, power, and computing connector applications.
