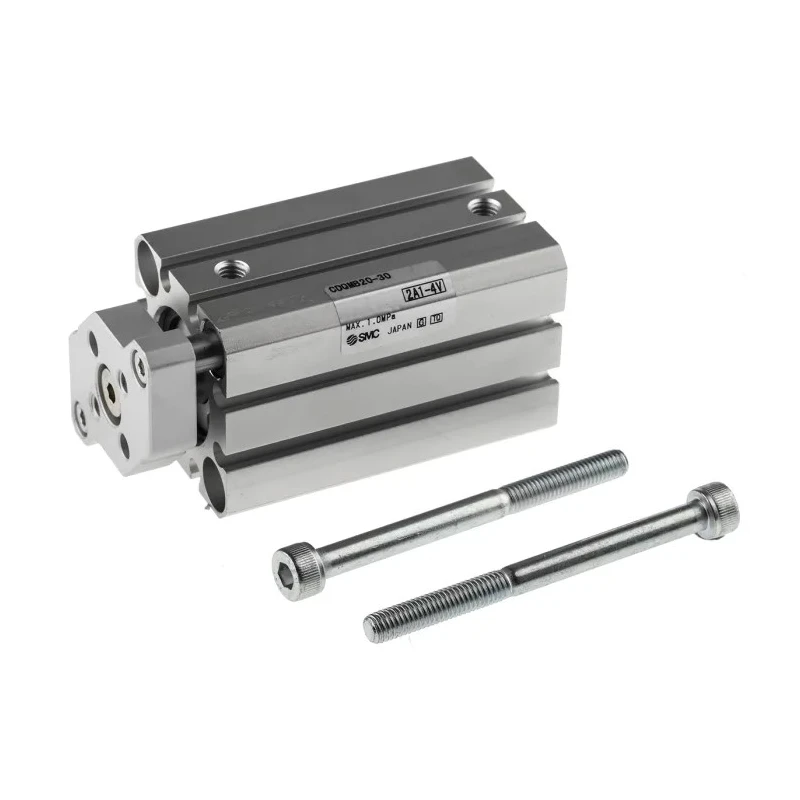

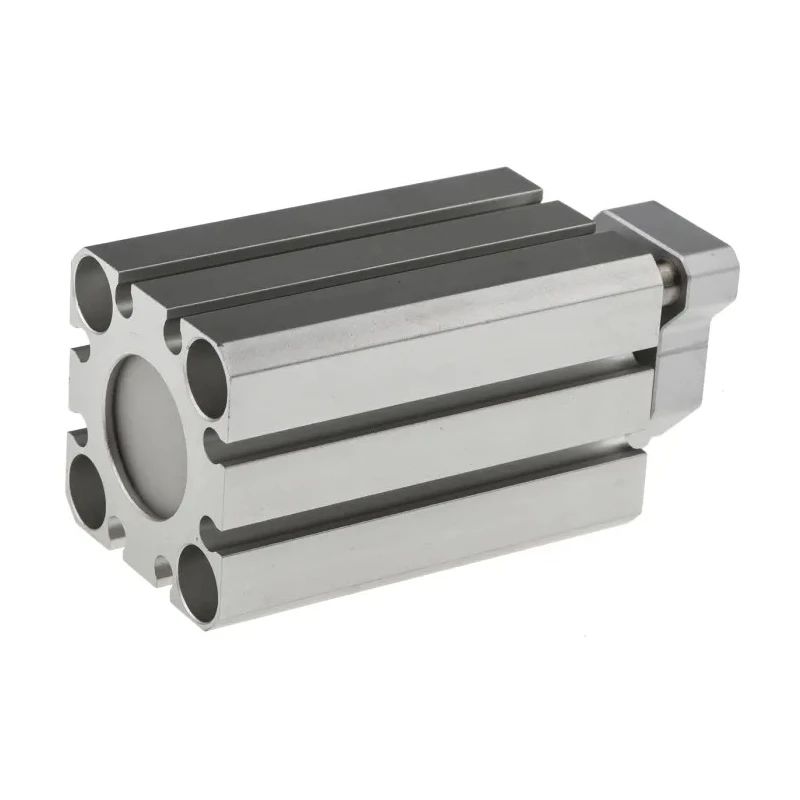

SMC Pneumatic Guided Cylinder 20mm Bore Aluminium Alloy Body Double Acting Through Hole Mount CDQMB20-30

SMC CDQMB20-30 Pneumatic Guided Cylinder is a compact actuator with a 20 mm bore diameter and 30 mm stroke length, engineered for precision and durability in industrial automation.

This cylinder features a double acting action type allowing force delivery in both extend and retract motions. The cylinder body is constructed from an aluminium alloy, offering strength while minimizing weight, with a total gross weight of 167 grams.

The design incorporates a through hole mount type for versatile installation and is equipped with a rubber cushioning system to absorb shocks, extending operational life and reducing noise levels.

Operating at a maximum pressure of 1 MPa and piston speed up to 500 mm/s, it performs effectively within temperature conditions ranging from -10°C to 70°C, suitable for demanding industrial environments.

The guide type uses slide bearings to provide a lateral load resistance significantly higher than standard cylinders, enhancing stability and accuracy. The cylinder is non-rotatable and designed for applications requiring stable guided motion with direct load accommodation.

With compact dimensions (height 36 mm, width 36 mm, length 72 mm), this guided cylinder fits well in constrained spaces, making it ideal for automation, manufacturing, laboratory, and pneumatic control applications.

Robust aluminium alloy construction ensures durability and lightweight design. Double acting function delivers consistent and controllable motion. Slide bearing guide mechanism improves lateral load resistance. Rubber cushioning reduces impact and noise during operation.

Through hole mounting provides flexible installation options. Compact size ideal for confined industrial environments. Temperature operational range covers typical industrial use cases. Manufactured in France adhering to high-quality standards.

This cylinder is extensively used in industrial automation, fluid power control, manufacturing systems, laboratory equipment, HVAC controls, and precise pneumatic motion applications.

Browse more Pneumatic Guided Cylinders and related pneumatic components within EnvMart to find compatible and complementary products for your industrial application needs.
