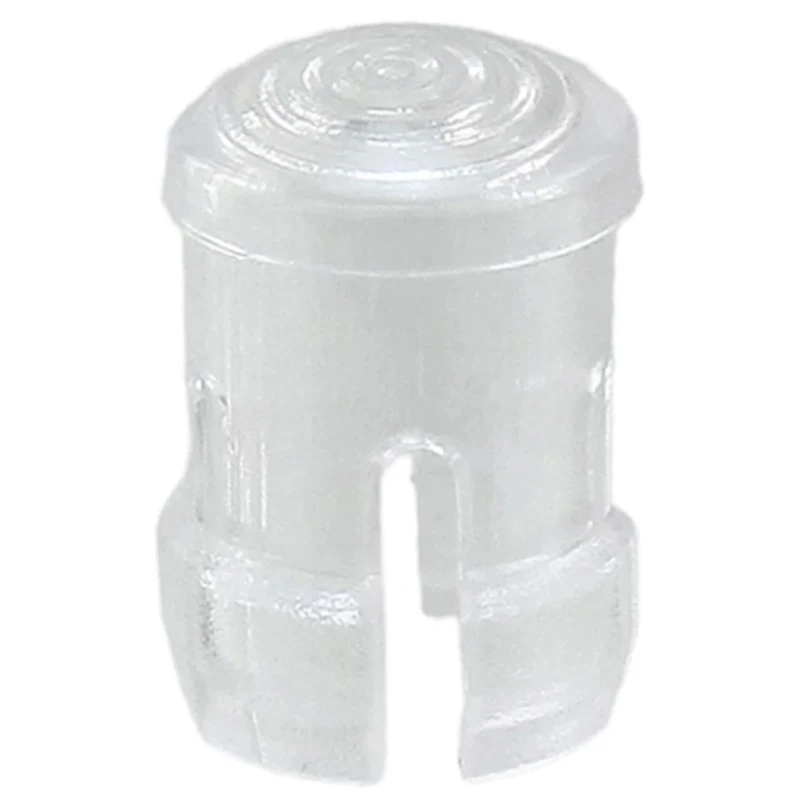

VCC SMB 200 Series 1-Way LED Lens Polycarbonate Fresnel Round 7.83mm Diameter Snap-in Fixing SMB_200_CTP

Free Delivery in India | Lowest Global Shipping Charges

VCC SMB 200 Series 1-Way LED Lens Polycarbonate Fresnel Round 7.83mm Diameter Snap-in Fixing SMB_200_CTP



Category LED Lens Brand VCC Condition New

Specifications

Country of Origin	Mexico
Diameter	7.83mm
Brand	VCC
Height	7.37mm
Length	7.37mm
Model	SMB_200_CTP
Width	7.11mm
Series	SMB_200
Lens Material	Polycarbonate
For Use With	LED
Lens Type	Fresnel Lens
Lens Shape	Round
Lens Style	Fresnel
Fixing Method	Snap-in
Number of LEDs Per Lens	1

Key Features

This LED lens features a round, low profile design suitable for panel mounting.
Constructed from durable polycarbonate material with UL 94-V2 flame rating.
The snap-in fixing method allows easy installation in panels 1.6 to 3.2 mm thick.
Fresnel lens style gives a wide angle of view with 1.5 mm projection from the panel.
Compact dimensions include diameter of 7.83 mm, height and length approximately 7.37 mm, and width 7.11 mm.
Suitable for protecting and enhancing the output of single 3 mm LEDs.
Manufactured in Mexico, ensuring quality and consistent performance.

Product Description

VCC SMB_200_CTP 1-Way LED Lens offers a robust and efficient solution for LED lighting components in electronics and electrical applications. This polycarbonate Fresnel lens is designed for use with 3 mm (T1) LEDs, providing mechanical protection and optimized light focusing for improved visibility and performance.

The lens features a low profile, shallow domed design with a 1.5 mm projection from mounted panels ranging from 1.6 to 3.2 mm in thickness. Its snap-in fixing method facilitates quick installation and secure retention within the panel.

With precise dimensions of 7.83 mm diameter, 7.37 mm height and length, and 7.11 mm width, this LED lens is compact and ideal for use in compact electronic devices requiring effective LED lensing.

The Fresnel lens style offers a wide viewing angle, enhancing light dispersion. The polycarbonate material is UL 94-V2 rated, ensuring flame resistance and durability for industrial and commercial electronic applications.

Manufactured in Mexico, the SMB 200 series LED lens series includes varieties in multiple colors besides the clear option, supporting diverse lighting design needs. This LED lens features a round, low profile design suitable for panel mounting.

Constructed from durable polycarbonate material with UL 94-V2 flame rating. The snap-in fixing method allows easy installation in panels 1.6 to 3.2 mm thick. Fresnel lens style gives a wide angle of view with 1.5 mm projection from the panel.

Compact dimensions include diameter of 7.83 mm, height and length approximately 7.37 mm, and width 7.11 mm. Suitable for protecting and enhancing the output of single 3 mm LEDs. Manufactured in Mexico, ensuring quality and consistent performance.

This component is ideal for use in electronics manufacturing, LED lighting assemblies, instrumentation panels, and any application requiring reliable optical lensing for single LED indicators or displays.
