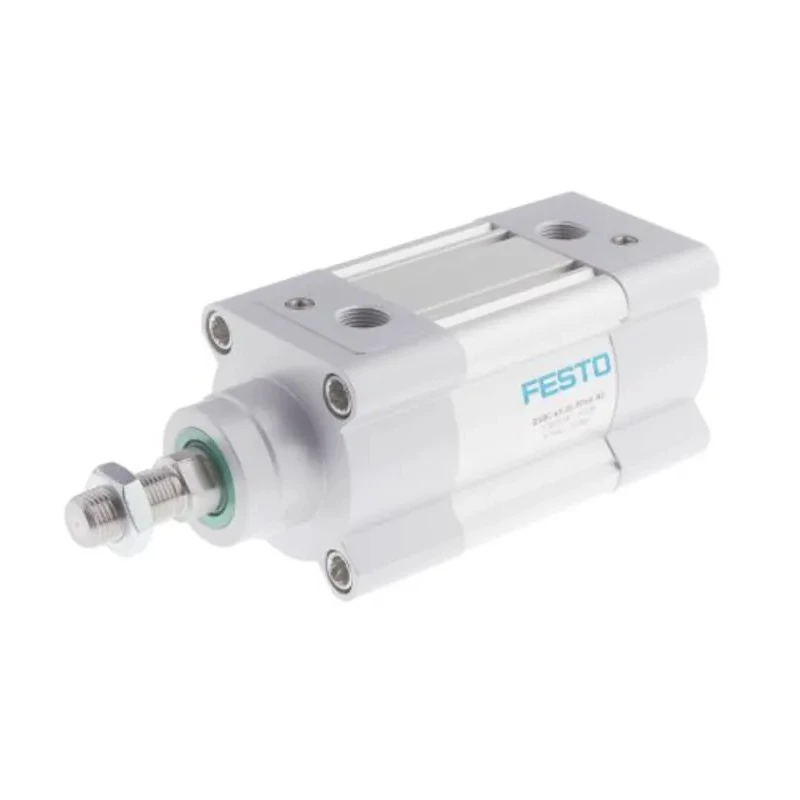

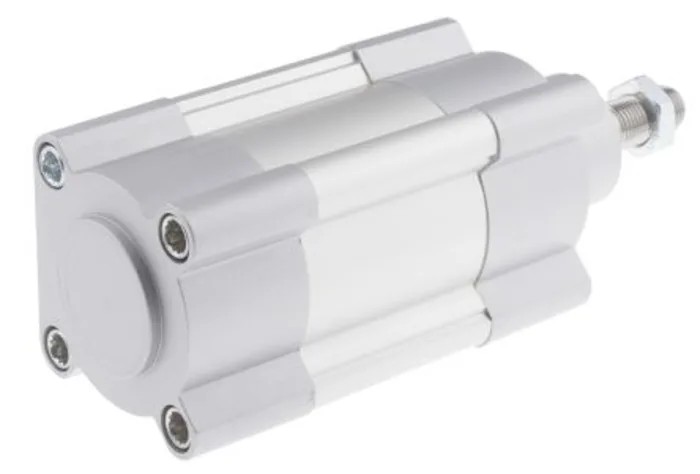

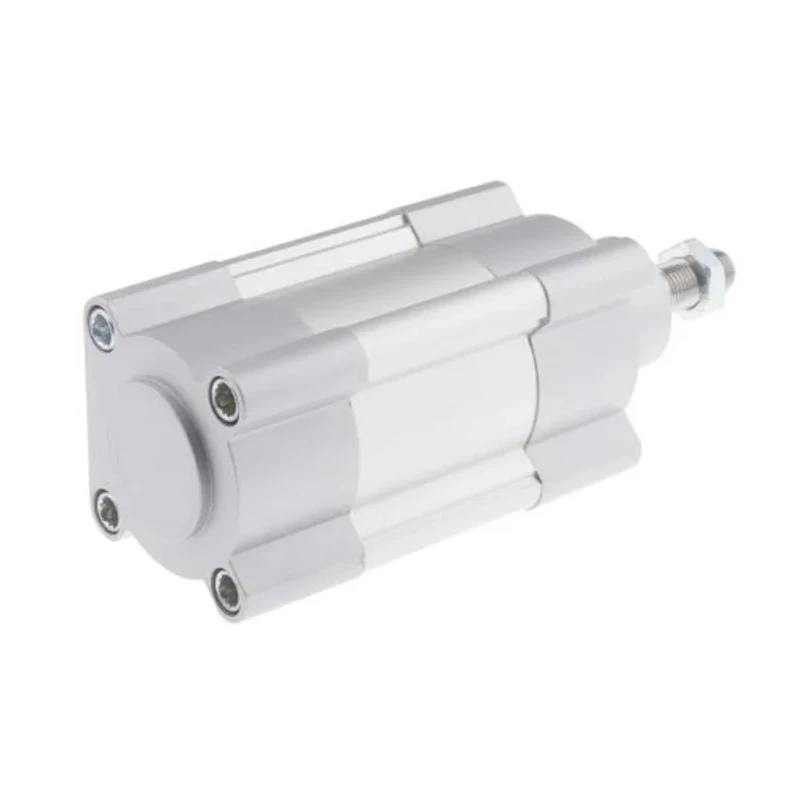

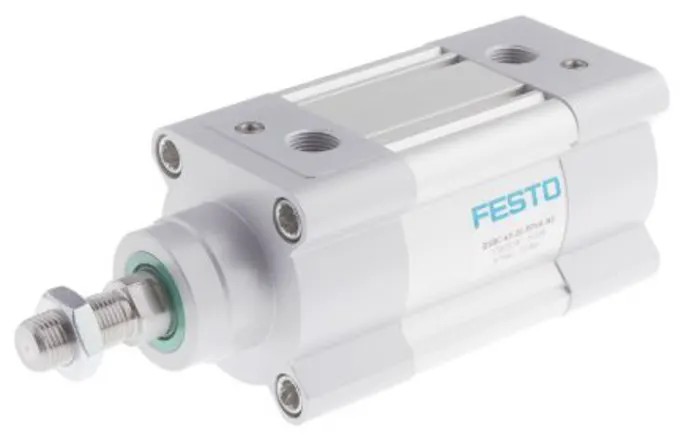

Festo Pneumatic Piston Rod Cylinder Double Acting 63mm Bore 30mm Stroke Aluminium Body DSBC-63-30-PPSA-N3
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 12 bar |
| Height | 75mm |
| Length | 223.1mm |
| Model | DSBC-63-30-PPSA-N3 |
| Gross Weight | 1.7kg |
| Width | 75mm |
| Series | DSBC |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 30mm |
| Bore Diameter | 63mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 15552, ISO 8573-1:2010, RoHS |
| Cushioning Type | Air Cushion |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | 3/8 in G |
| Standards/Approvals ISO 15552, ISO 8573-1 | 2010, RoHS |
Key Features
- The cylinder conforms to ISO 15552 standards for mounting and interchangeability.
- It has an air cushioning system that adjusts automatically without manual intervention.
- The piston rod is made of high-alloy steel offering excellent running performance and long service life.
- Dual connection ports allow compressed air to drive both advancing and retracting motions.
- Magnetic piston rods enable contactless position detection via proximity sensors.
- It supports operation across a temperature range of -20°C to 80°C.
- Mounting options include swivel bracket, foot mount, and combined actuator configurations.
Product Description
Festo DSBC-63-30-PPSA-N3 Pneumatic Piston Rod Cylinder is a precision double acting actuator designed with a 63mm bore diameter and 30mm stroke. It features a lightweight aluminium body and a high-alloy steel piston rod that guarantees outstanding performance and long operational life. The cylinder offers self adjusting pneumatic cushioning at both ends, which ensures smooth and quiet cushioning without the need for manual adjustment.
This pneumatic actuator complies with ISO 15552 and ISO 8573-1:2010 standards, enabling flexible and standardized mounting solutions. It includes dual ports for pneumatic control, permitting linear motion with advancing and retracting strokes powered by compressed air.
The piston rod is male threaded with a 3/8 inch G thread and equipped with magnetic properties to allow seamless integration with proximity sensors for contactless position detection, enhancing automation and monitoring capabilities.
Operating temperature ranges from -20°C up to 80°C, making it suitable for various industrial and manufacturing environments. The cylinder dimensionally measures 223.1mm length, 75mm height, and 75mm width, with a gross weight of 1.7 kg.
Applications include industrial automation, fluid power control, manufacturing processes, and pneumatic systems requiring reliable and durable linear actuators. The cylinder's self adjusting pneumatic cushioning increases efficiency by reducing noise and vibration during operation.
Its aluminium body ensures a low overall weight for easy installation and handling. The DSBC series cylinders are customizable with a range of stroke lengths and bore sizes for diverse application needs. Mounting options are versatile, supporting multiple configurations such as foot mounting and swivel brackets for enhanced adaptability.
High corrosion resistance and ISO compliance ensure long-lasting, maintenance-friendly usage in demanding applications.
Explore EnvMart's extensive selection of pneumatic cylinders and actuators for industrial and laboratory applications, ensuring you find the precise solution for your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 63mm.
The stroke length of the Festo DSBC-63-30-PPSA-N3 is 30mm.
It has a maximum operating pressure of 12 bar.
The operating temperature range is from -20°C to 80°C.
The body is made of aluminium, and the piston rod is made of high-alloy steel.
The dimensions are 223.1mm in length, 75mm in height, and 75mm in width.
It features an air cushioning system that adjusts automatically without manual intervention.
It complies with ISO 15552 and ISO 8573-1:2010 standards.
The gross weight of the Festo DSBC-63-30-PPSA-N3 is 1.7 kg.
This pneumatic cylinder supports double acting action.
It supports various mounting options including swivel bracket, foot mount, and combined actuator configurations.
Magnetic piston rods enable contactless position detection via proximity sensors.
