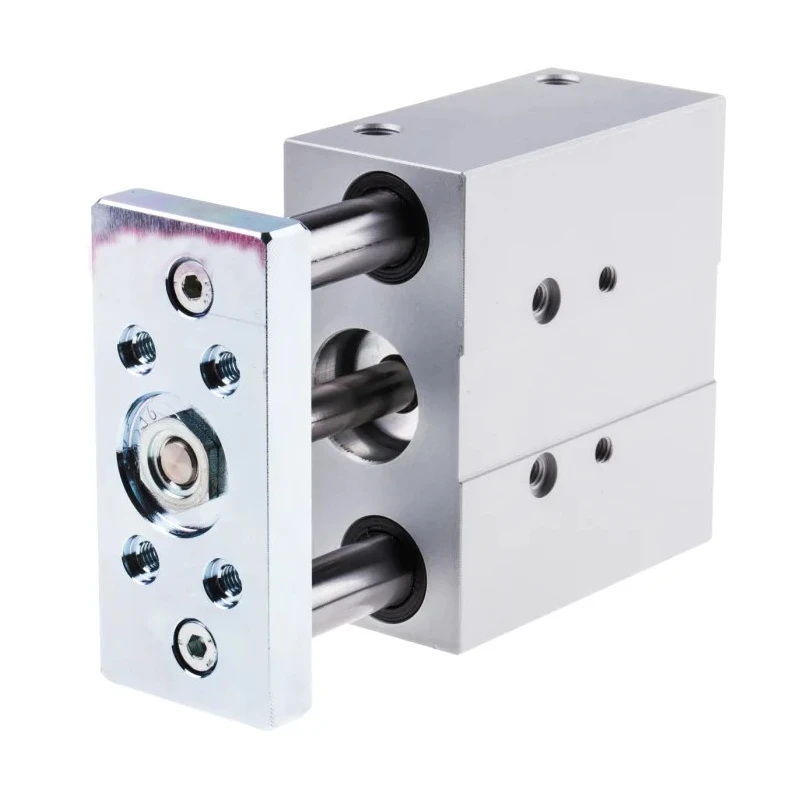

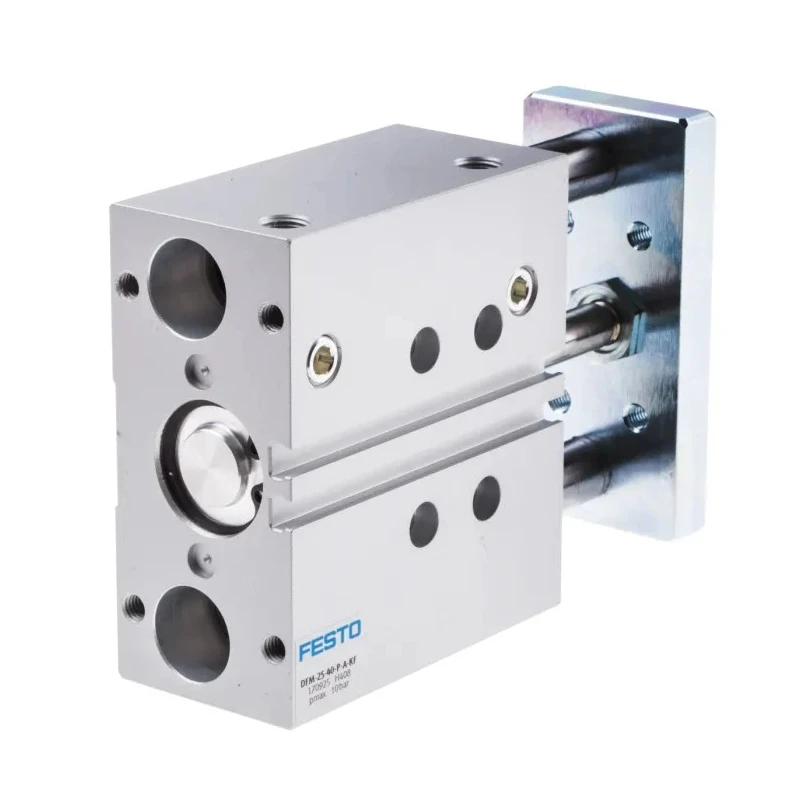

Festo DFM Series Pneumatic Guided Cylinder Double Acting 25mm Bore 40mm Stroke Anodised Aluminium DFM-25-40-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Anodised Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 44mm |
| Length | 123mm |
| Model | DFM-25-40-P-A-KF |
| Gross Weight | 1.4kg |
| Width | 95mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 40mm |
| Bore Diameter | 25mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 1179-1, ISO 228-1 |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
Key Features
- Double acting pneumatic cylinder for reliable linear motion.
- 25mm bore and 40mm stroke enable precise movement.
- Anodised wrought aluminium alloy offers durability and corrosion resistance.
- Recirculating ball bearing guide rods ideal for high torque loads.
- Flexible cushioning plates reduce operating noise and increase service life.
- Integrated slots allow proximity sensors for position measurement.
- Through hole mount design for flexible installation.
- Maximum operating pressure up to 10 bar for robust performance.
Product Description
Festo DFM-25-40-P-A-KF Pneumatic Guided Cylinder is engineered for industrial automation, precise clamping, stopping, lifting, and material handling tasks. Featuring a double acting mechanism with 25mm bore and 40mm stroke, this guided actuator combines drive and guidance in a single compact housing.
The anodised wrought aluminium alloy body delivers high durability and corrosion resistance, making it suitable for reliable operation in demanding manufacturing environments. Recirculating ball bearings within the guide rods ensure smooth movement and resilience to torque and lateral forces, while flexible cushioning plates reduce operational noise and extend service life.
The cylinder is equipped with through hole mounts, integrated slots for easy installation of proximity sensors, and air supply ports on both the top and side for versatile mounting options. Its robust construction allows for heavy load stopping and dynamic lifting, supporting up to 150 kg loads in industrial settings.
Double acting for powerful linear actuation and precise control. 25mm bore and 40mm stroke for accurate positioning. Anodised aluminium body ensures longevity and corrosion protection. Recirculating ball bearing guides for torque load resistance.
Flexible cushioning for quiet operation and increased lifespan. Sensor integration facilitates automated position monitoring. Mounting versatility with through hole and air supply ports. ISO 1179-1 and ISO 228-1 standards compliant for industrial reliability.
Operating pressure up to 10 bar and temperature range -5°C to 60°C. Ideal for clamping, stopping, material handling, and lifting applications.
Suitable for industrial, manufacturing, fluid power, automation, and material handling sectors. The compact, maintenance-free nature of the DFM series increases productivity and minimizes downtime.
Explore EnvMart's full range of Festo Pneumatic Guided Cylinders and accessories for advanced automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Festo DFM-25-40-P-A-KF is 10 bar.
This pneumatic guided cylinder has a height of 44mm, a length of 123mm, and a width of 95mm.
The stroke length of this model is 40mm.
The bore diameter of the Festo DFM-25-40-P-A-KF is 25mm.
The body of this pneumatic cylinder is made from anodised wrought aluminium alloy, providing durability and corrosion resistance.
This model operates as a double acting cylinder, allowing for powerful linear actuation.
The DFM-25-40-P-A-KF features a through hole mount design for flexible installation.
The operating temperature range for this pneumatic cylinder is from -5°C to 60°C.
It is equipped with elastomer cushioning, which helps reduce operational noise and extends service life.
The DFM-25-40-P-A-KF complies with ISO 1179-1 and ISO 228-1 standards for industrial reliability.
The gross weight of the Festo DFM-25-40-P-A-KF is 1.4kg.
This model is suitable for clamping, stopping, material handling, and lifting applications in industrial automation.
