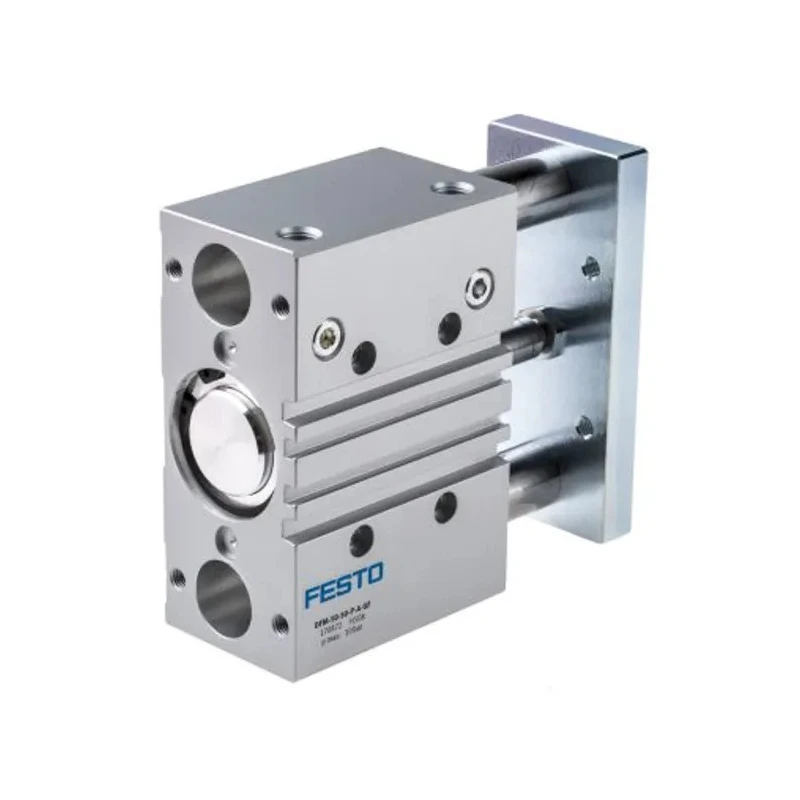

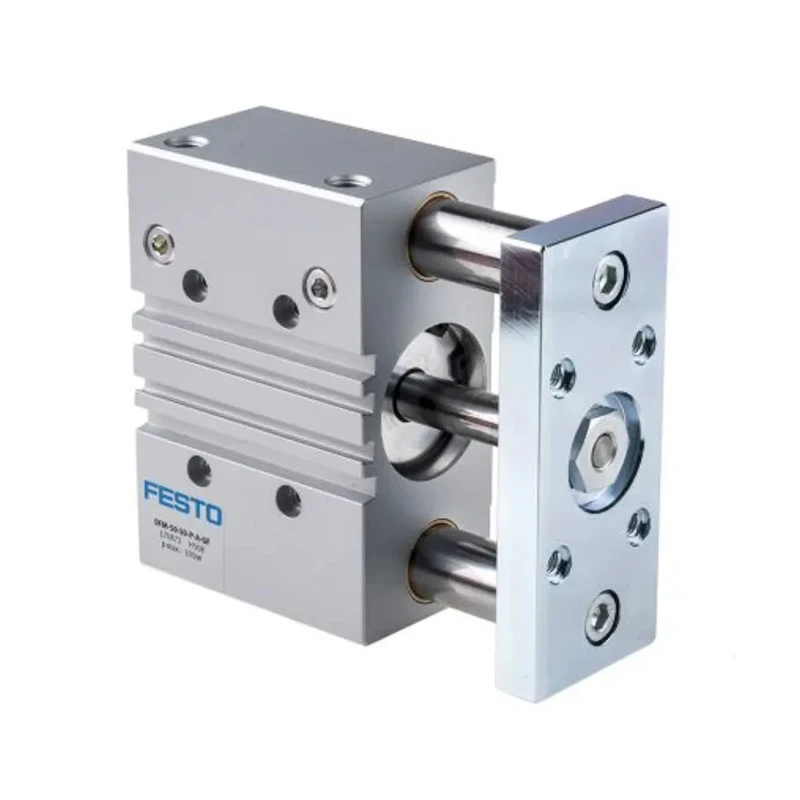

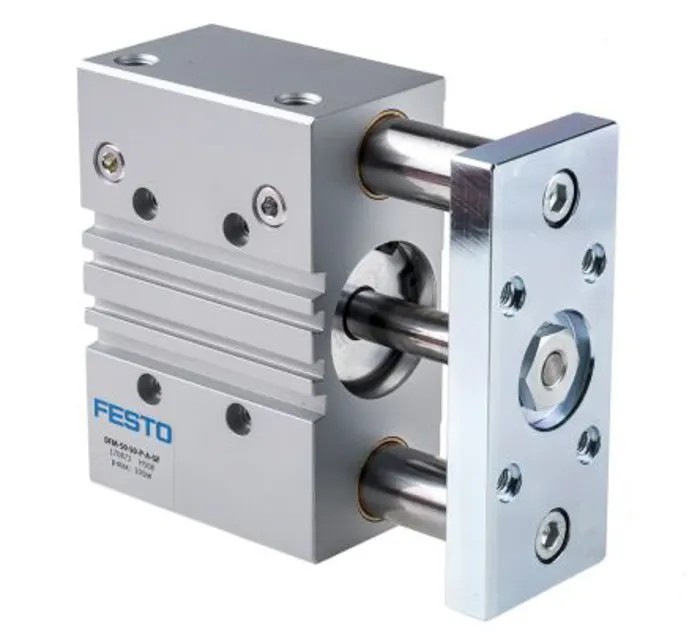

Festo Pneumatic Guided Cylinder, 63mm Bore, DFM Series, 200mm Stroke, Double Acting, Aluminium Body, Model DFM-63-200-P-A-GF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 78mm |
| Length | 334mm |
| Model | DFM-63-200-P-A-GF |
| Gross Weight | 10.2kg |
| Width | 162mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 200mm |
| Bore Diameter | 63mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS |
| Cushioning Type | Elastomer |
| Guide Type | Slide Bearing |
Key Features
- Features a compact and rigid aluminium construction suitable for high load pneumatic applications.
- Designed as a double acting guided cylinder for combined drive and precise lateral guidance.
- Slide bearing type guide with four plain slide bearings to withstand high lateral forces.
- Elastomer cushioning plates reduce operational noise and extend service life.
- Maximum operating pressure of 10 bar and temperature range from -20°C to 80°C ensures reliable performance.
- Mount type designed with through hole for flexible installation options.
- Includes supply ports on both top and side of cylinder for versatile positioning.
- Manufactured in Germany adhering to RoHS standards.
Product Description
Festo DFM-63-200-P-A-GF pneumatic guided cylinder is a high-precision, double acting slide bearing pneumatic actuator designed for industrial, manufacturing, and automation applications requiring high rigidity and load capacity.
The cylinder combines drive and guidance in a single compact aluminium housing, providing resistance to torque and lateral external forces. Four plain slide bearings on large diameter guide rods enable excellent lateral force absorption, making it ideal for high load uses such as clamping, stopping, material handling, and lifting tasks.
Featuring flexible elastomer cushioning plates, the DFM series reduces operational noise and extends cylinder service life, enhancing durability in demanding industrial environments. Its robust aluminium alloy body is maintenance free and highly resistant to external mechanical stresses.
Its design includes integrated slots for proximity sensors to accurately measure the linear motion of the piston, while air supply ports are available both on the top and side of the housing, allowing flexible installation orientations.
Key technical details include a bore diameter of 63mm, stroke length 200mm, maximum operating pressure of 10 bar, and operating temperature range from -20°C to 80°C. Mounting is facilitated by through holes, accommodating diverse industrial setups.
Compact and rigid aluminium construction. Double acting pneumatic and guided drive in one unit. Slide bearing guides for high lateral force resistance. Flexible elastomer cushioning for noise reduction. Top and side supply ports for versatile mounting.
Maintenance free with robust resistance to external forces. Suitable for industrial automation, clamping, lifting, and material handling. Manufactured in Germany with RoHS compliance.
This robust Pneumatic Guided Cylinder is designed to meet the demanding requirements of modern industry, laboratory, and manufacturing processes. Its combination of strength, precision guidance, and flexible mounting make it indispensable for engineers seeking reliable pneumatic actuation solutions.
Explore more pneumatic cylinders and related automation components in the Hydraulic & Pneumatic Tools category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Festo DFM-63-200-P-A-GF pneumatic guided cylinder is 10 bar.
This model features a stroke length of 200mm.
The bore diameter of this pneumatic cylinder is 63mm.
It can operate within a temperature range from -20°C to 80°C.
This cylinder uses elastomer cushioning to reduce operational noise and extend service life.
The DFM-63-200-P-A-GF is designed with a through hole mount type for flexible installation options.
The body of this cylinder is made from wrought aluminium alloy.
The gross weight of the DFM-63-200-P-A-GF is 10.2kg.
It utilizes a slide bearing guide type, which allows it to withstand high lateral forces.
This model is suitable for applications such as clamping, stopping, material handling, and lifting tasks.
Yes, it is manufactured in compliance with RoHS standards.
The length of this model is 334mm and the width is 162mm.
