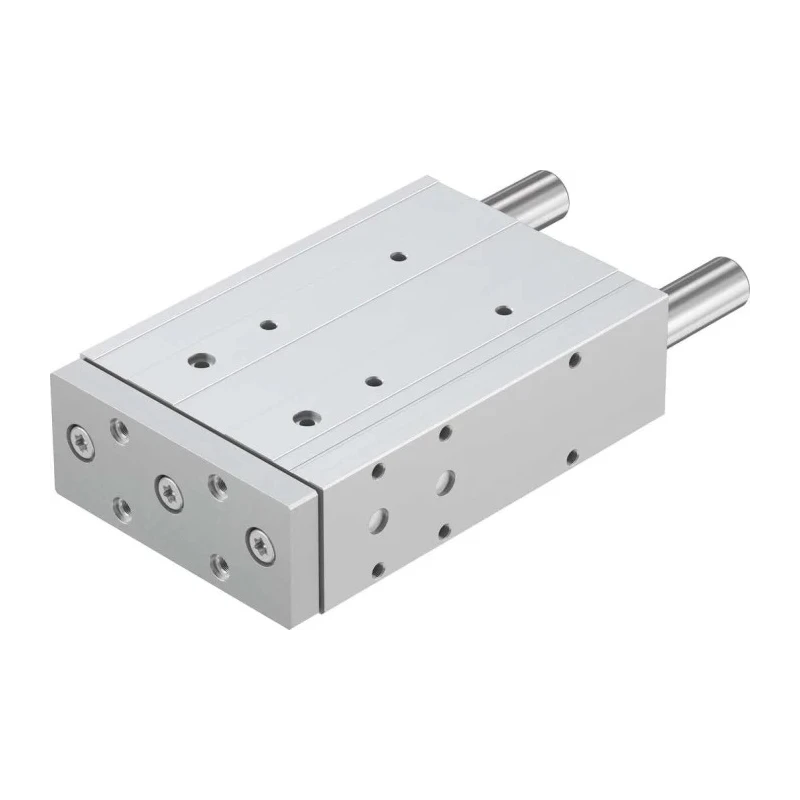

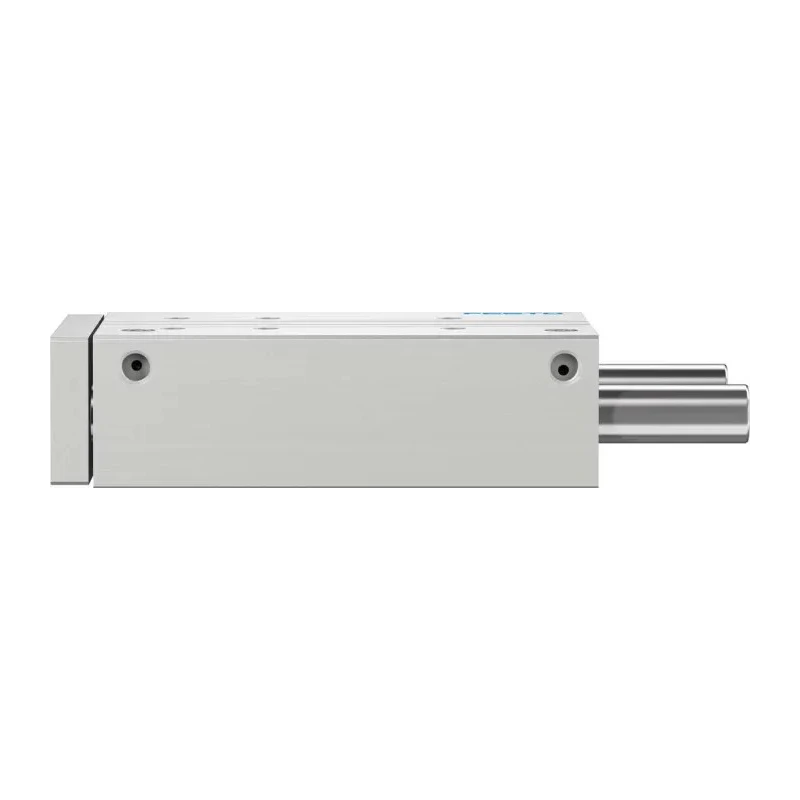

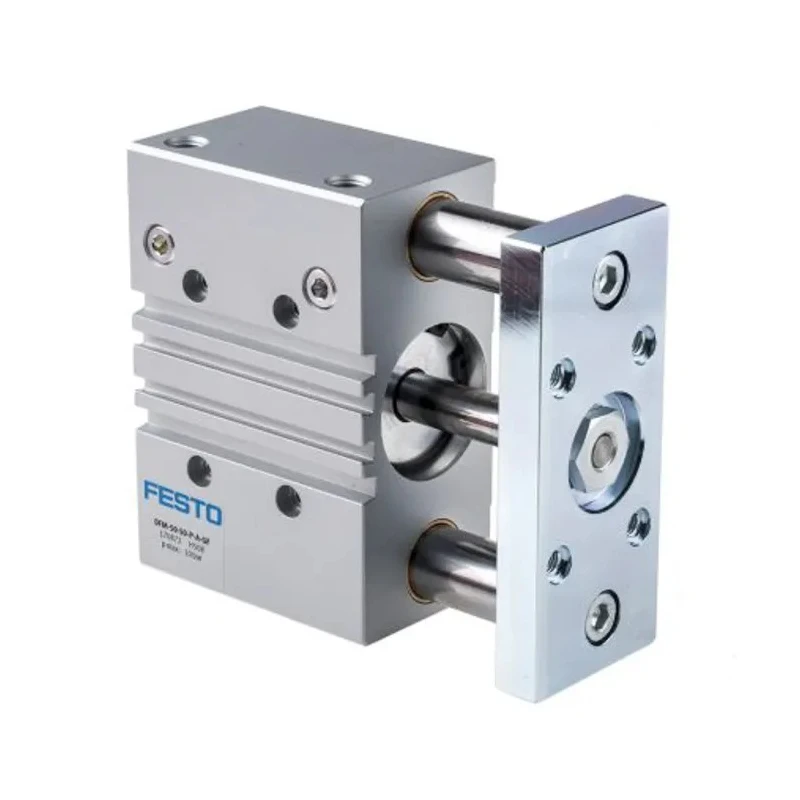

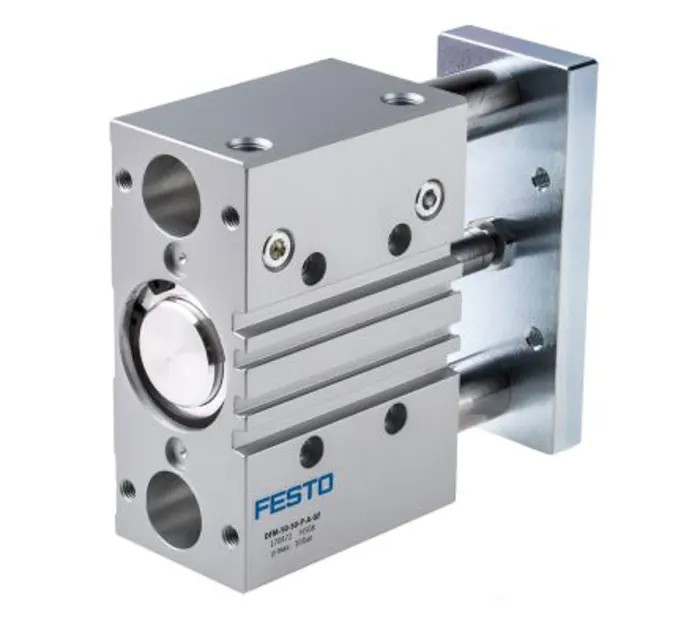

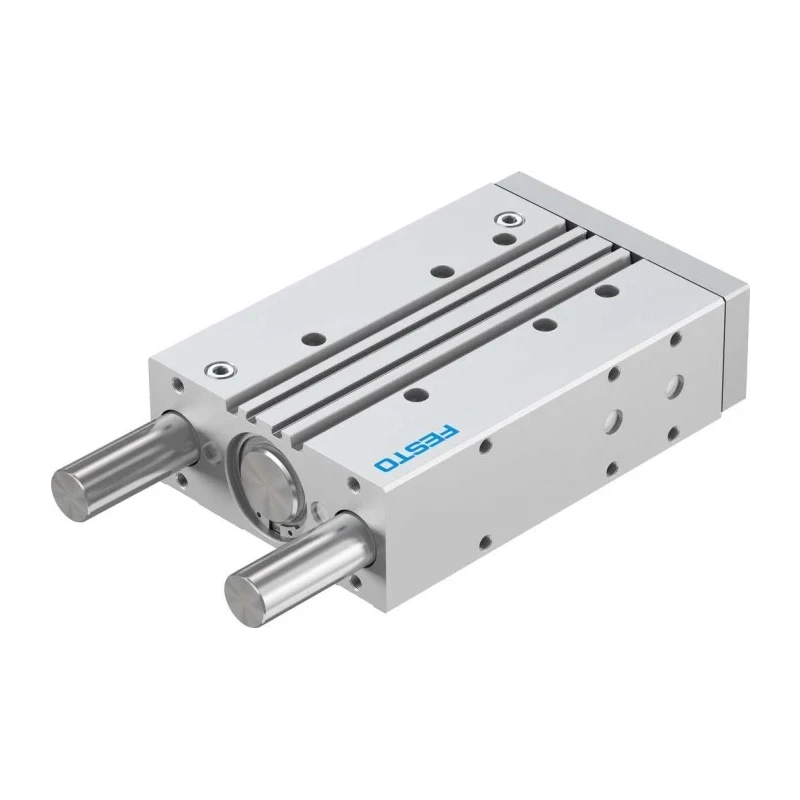

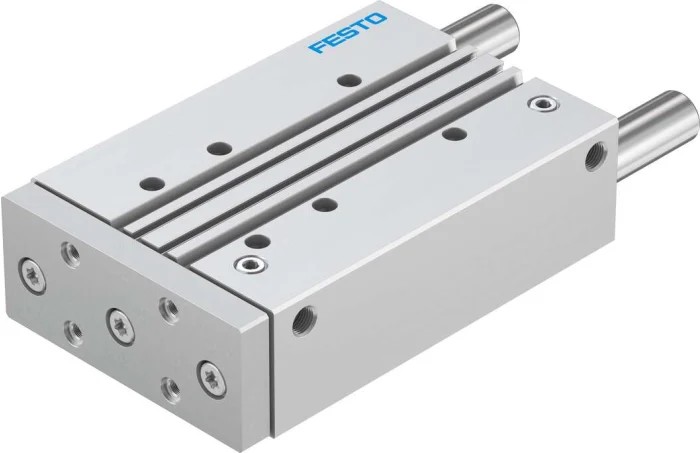

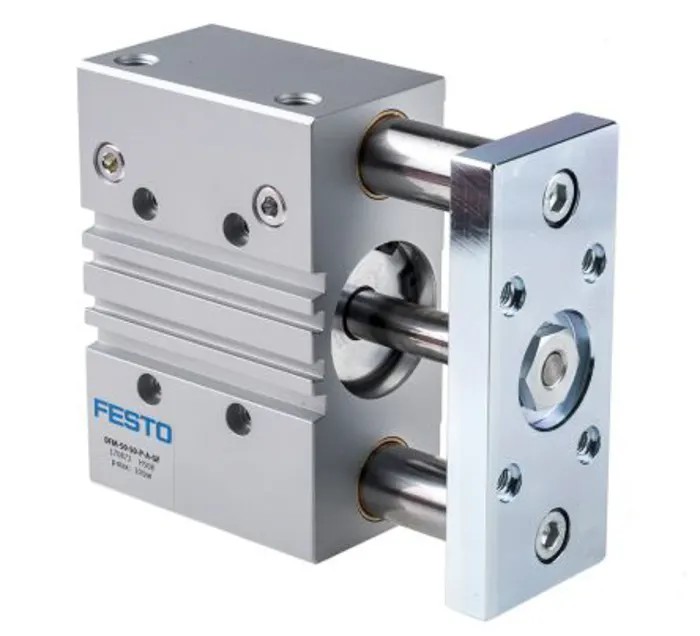

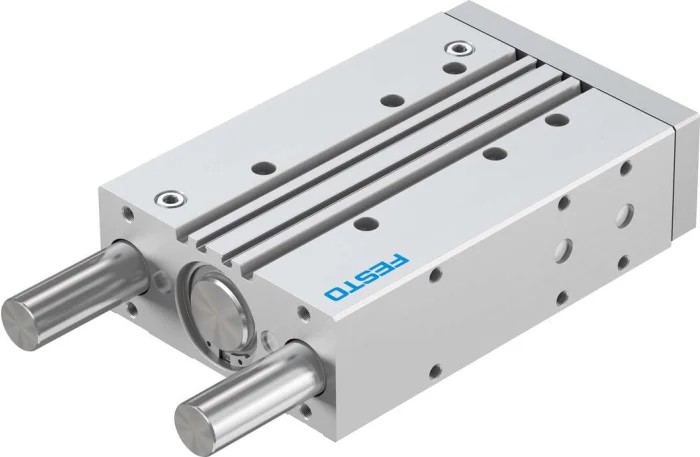

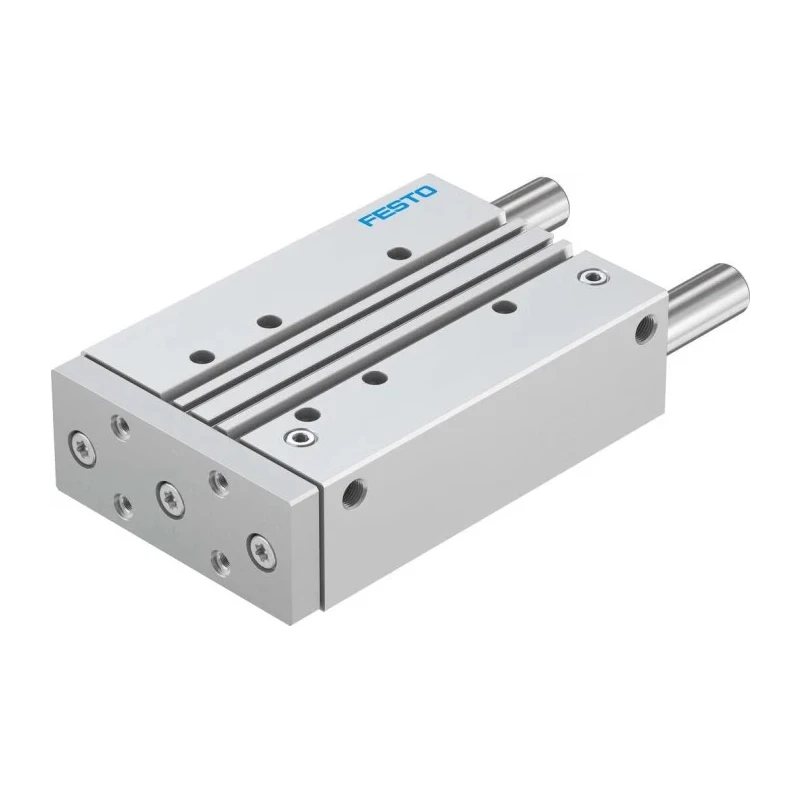

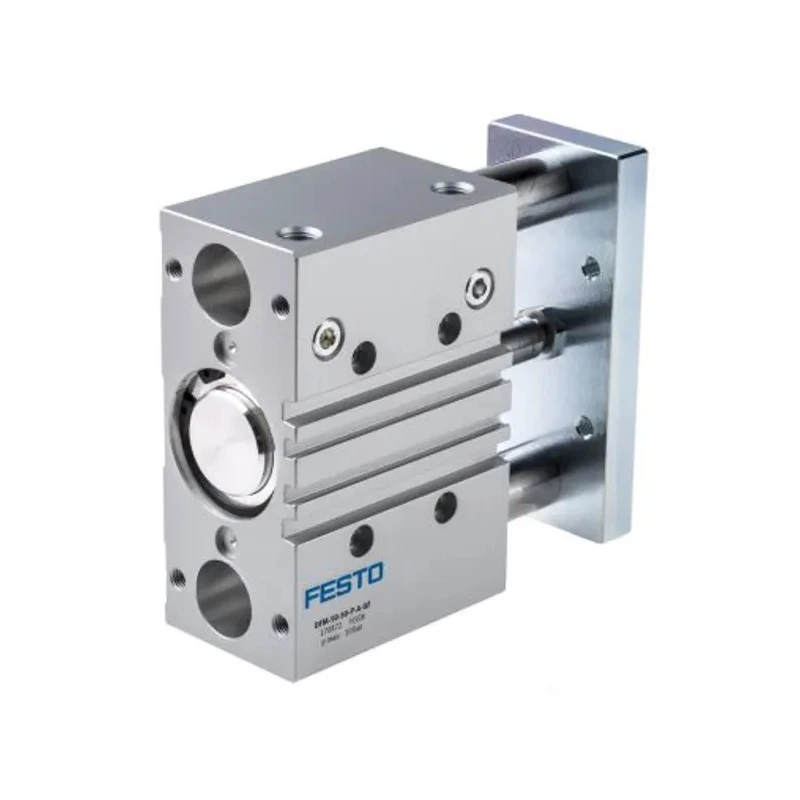

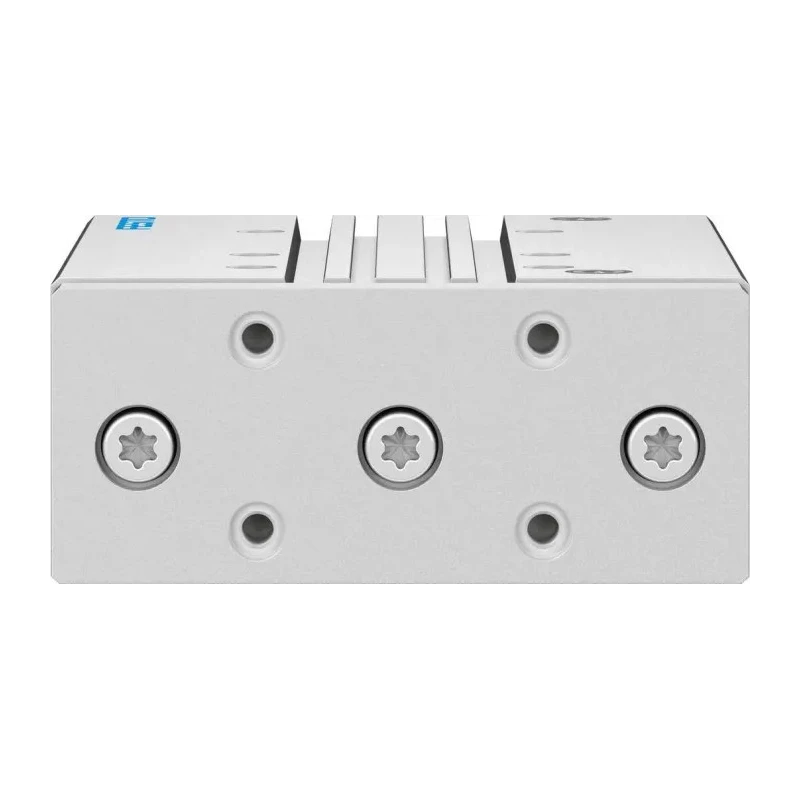

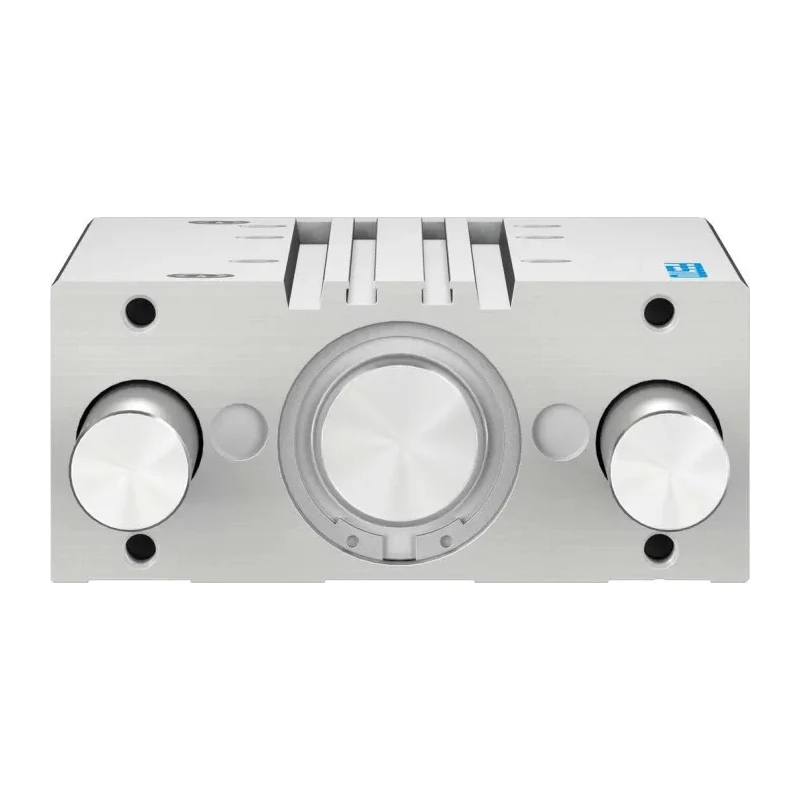

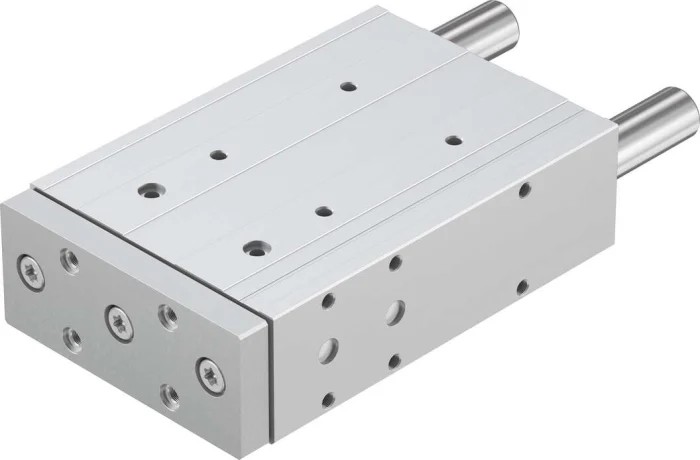

Festo Pneumatic Guided Cylinder 50mm Bore Double Acting Through Hole Mount 10 bar Pressure DFM-50-160-P-A-GF

Festo DFM-50-160-P-A-GF Pneumatic Guided Cylinder is a high-quality, double acting guided cylinder with a bore diameter of 50mm and a 160mm stroke length. It integrates a double acting drive and guiding unit in a compact housing designed for industrial automation, automotive manufacturing, pulp and paper mills, and other heavy-duty applications requiring reliable force and precise movement.

Constructed from a blend of nitrile rubber (NBR) seals, tempered steel, high alloy stainless steel, wrought aluminium alloy, and polyurethane, the device is built for strength and resistance to corrosive environments. The elastomer cushioning effectively absorbs high impacts, limiting noise and vibration, ensuring extended service life and operational stability.

The pneumatic cylinder features a through hole mount allowing installation in any position, enhancing versatility on the production floor. Its guided piston benefits from both ball bearing and plain bearing guide types for smooth and consistent motion. Operating pressure of up to 10 bar enables it to handle demanding lifting, clamping, and pushing tasks efficiently. The cylinder supports a temperature range from -20°C to 80°C, making it suitable for harsh environmental conditions.

Festo’s design includes compliance with ISO 1179-1 and ISO 228-1 standards, affirming its quality and reliability. With a gross weight of 7.2kg and dimensions of 294mm length, 148mm width, and 64mm height, this robust pneumatic guided cylinder is an ideal choice for complex industrial processes requiring precise guidance with compact form factor.

Key features include:. 50mm bore diameter and 160mm stroke length for precise, powerful output. Double acting operation for versatile pneumatic force control. Elastomer cushioning for quiet, safe operation under shock loads.

Flexible through hole mounting for easy integration. Durable materials combining metals and polymers for corrosion and wear resistance. Wide operating temperature range (-20°C to 80°C) suitable for harsh environments. Ball and plain bearing guidance ensuring stable, smooth piston motion.

Single ended rod for strong support and load handling. Manufactured in Germany adhering to recognized ISO standards.

Choose this Festo pneumatic guided cylinder for rigorous industrial automation tasks requiring compact design, high durability, and reliable pneumatic actuation. Explore similar Pneumatic Guided Cylinder products to find the right fit for your specific application demands.
