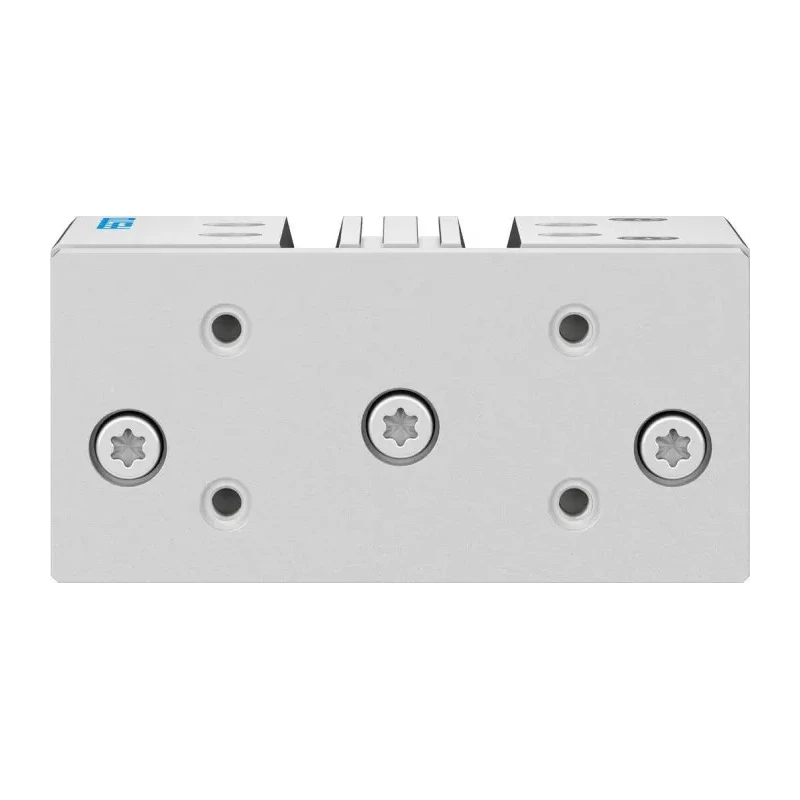

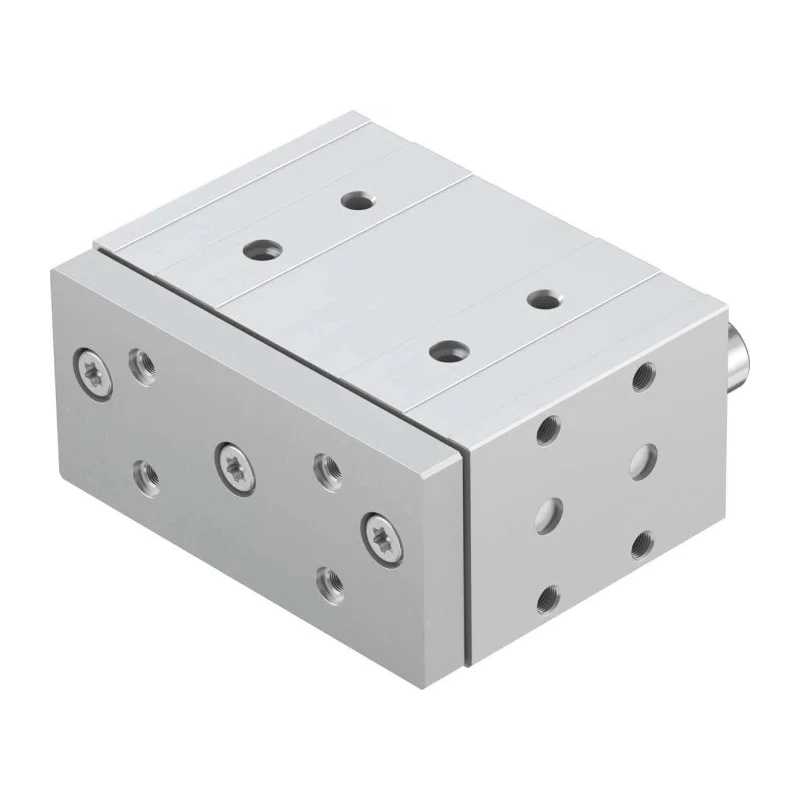

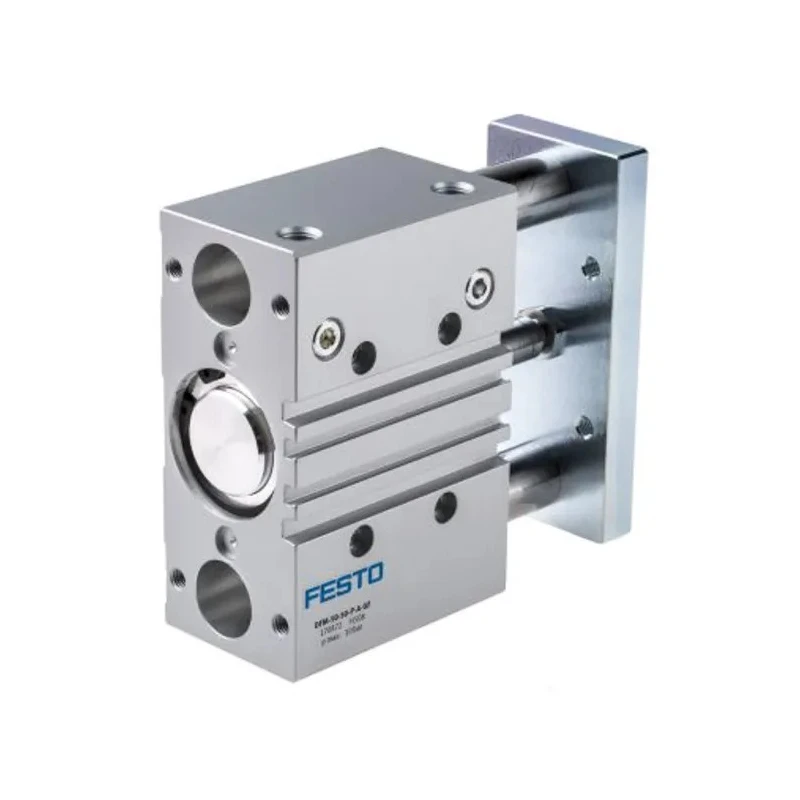

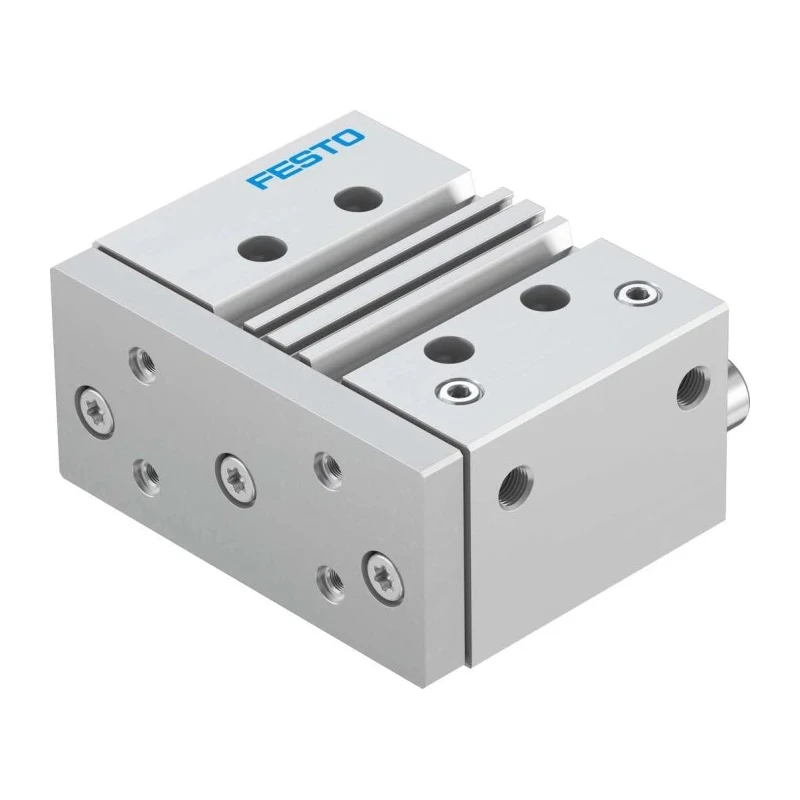

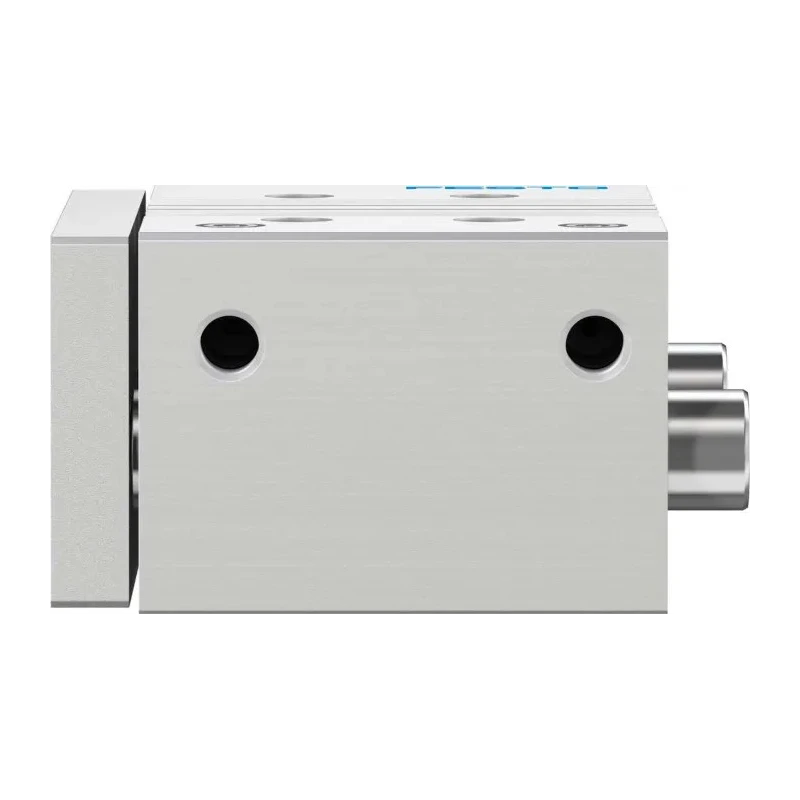

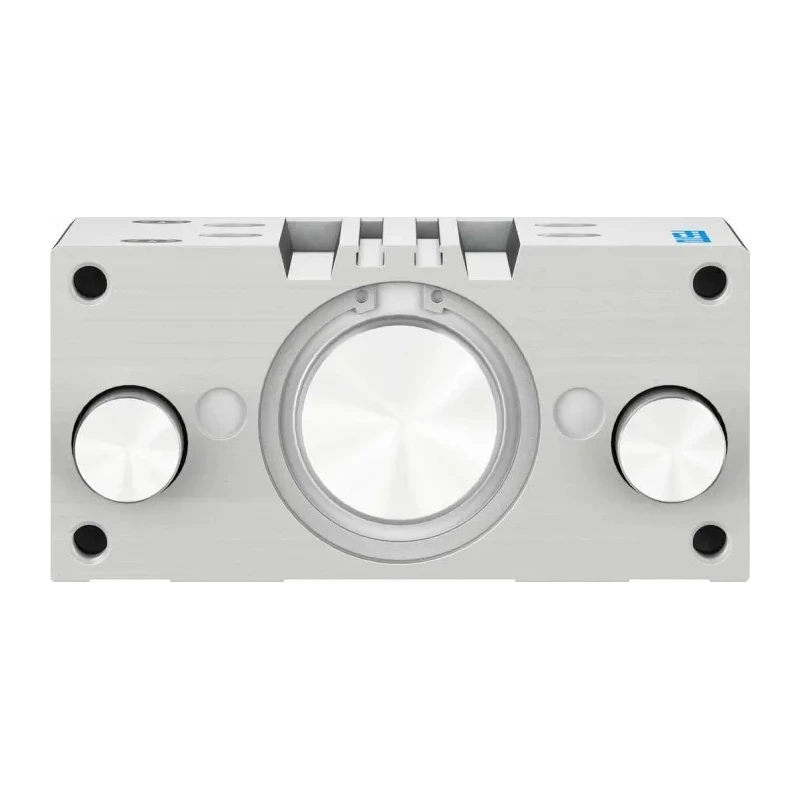

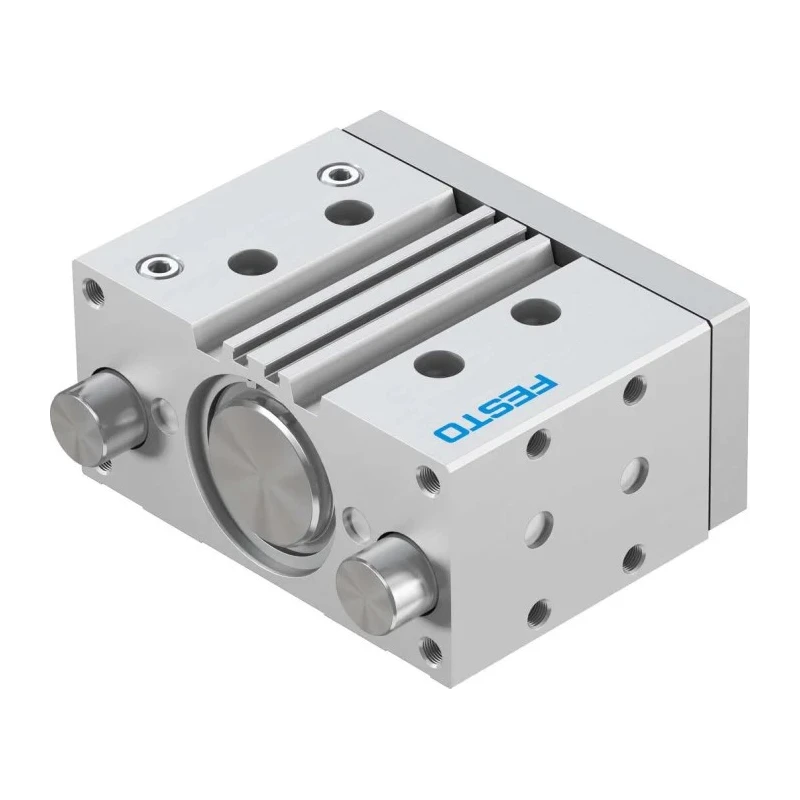

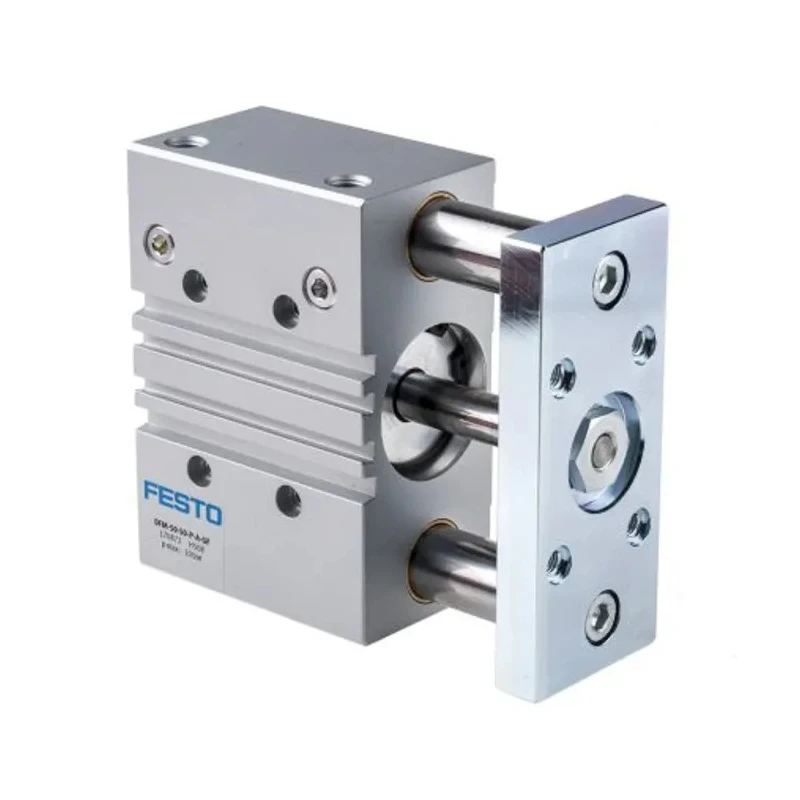

Festo Pneumatic Guided Cylinder DFM Series 63mm Bore, 50mm Stroke, Double Acting, Through Hole Mount DFM-63-50-P-A-GF

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Guided Cylinder DFM Series 63mm Bore, 50mm Stroke, Double Acting, Through Hole Mount DFM-63-50-P-A-GF

Name: Festo Pneumatic Guided Cylinder DFM Series 63mm Bore, 50mm Stroke, Double Acting, Through Hole Mount DFM-63-50-P-A-GF
Brand: FESTO
SKU: 145416
Price: 658.25 USD
Availability: InStock



Category Pneumatic Guided Cylinder Brand FESTO Condition New

Specifications

Country of Origin	Germany
Brand	Festo
Maximum Operating Pressure	10 bar
Height	78mm
Length	143mm
Model	DFM-63-50-P-A-GF
Gross Weight	5.2kg
Width	162mm
Mount Type	Through Hole
Series	DFM
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Stroke Length	50mm
Bore Diameter	63mm
Action Type	Double Acting
Standards/Approvals	ISO 1179-1, ISO 228-1, RoHS
Better World Claim	Repairable by the End User
Cushioning Type	Elastomer
Guide Type	Ball Bearing
Piston Rod Thread Size	1/4 in G

Key Features

This cylinder features elastomer cushioning to reduce noise and prolong service life.
Constructed with maintenance-free aluminium for durability and light weight.
Operates at a maximum pressure of up to 10 bar for handling heavy industrial loads.
Ball bearing guide type ensures smooth and precise movement.
Compact dimensions (162mm width x 143mm length x 78mm height) enable use in space-constrained applications.
Wide operational temperature range from -20°C to +80°C allows use in harsh environments.
Fitted with a standard G1/4 port connection for broad compatibility.
Compliant with ISO 1179-1, ISO 228-1, and RoHS standards.

Product Description

Festo DFM-63-50-P-A-GF Pneumatic Guided Cylinder combines robust pneumatic actuation with integrated guiding for precise, double acting movement. With a bore diameter of 63mm and a stroke of 50mm, this model is designed to generate significant force for applications requiring lateral or two-directional motion control.

The unit features elastomer cushioning plates that effectively reduce noise levels and extend cylinder service life, making it suitable for industrial environments. Its through hole mount type facilitates flexible installation options with secure fixing.

Constructed from maintenance-free aluminium, the cylinder is lightweight yet durable, weighing 5.2 kg, and meets international standards including ISO 1179-1 and ISO 228-1, as well as RoHS compliance for environmental safety.

Operating at a maximum pressure of 10 bar, it is capable of managing heavy loads while performing reliably across a wide operating temperature range, from -20°C to 80°C, ideal for harsh and varied industrial conditions. The ball bearing guide type ensures smooth, low-friction piston movement, supported by a piston rod thread size of 1/4 inch G and a G1/4 port for pressure supply.

This Pneumatic Guided Cylinder is extensively used in robotics, automated production lines, and automotive manufacturing, where reliable, precise, and compact linear actuation is required. Its compact dimensions (162mm width, 143mm length, and 78mm height) save valuable space in machinery designs while offering strong performance.

This model offers double acting operation, enabling push and pull force movements. Its integration of guide and drive units in a single housing enhances space efficiency. Designed to be repairable by the end user, which promotes sustainability and reduces downtime.

Made in Germany, ensuring high manufacturing quality and precision engineering. Standardized fittings make it compatible with many pneumatic systems. Explore EnvMart's qualified inventory of Festo pneumatic cylinders and actuators to find precise motion control solutions for your industrial needs.
