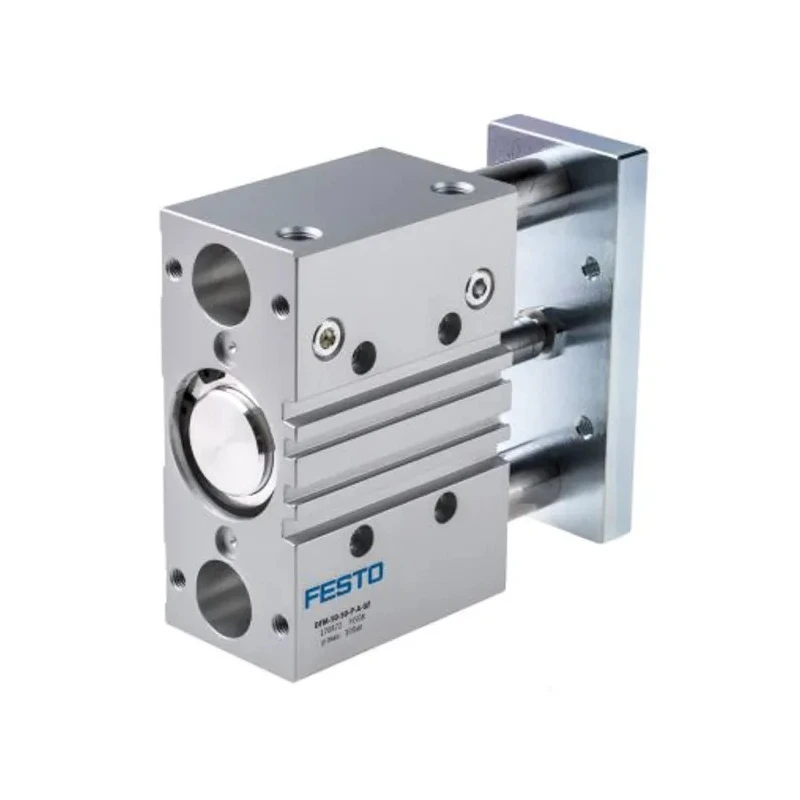

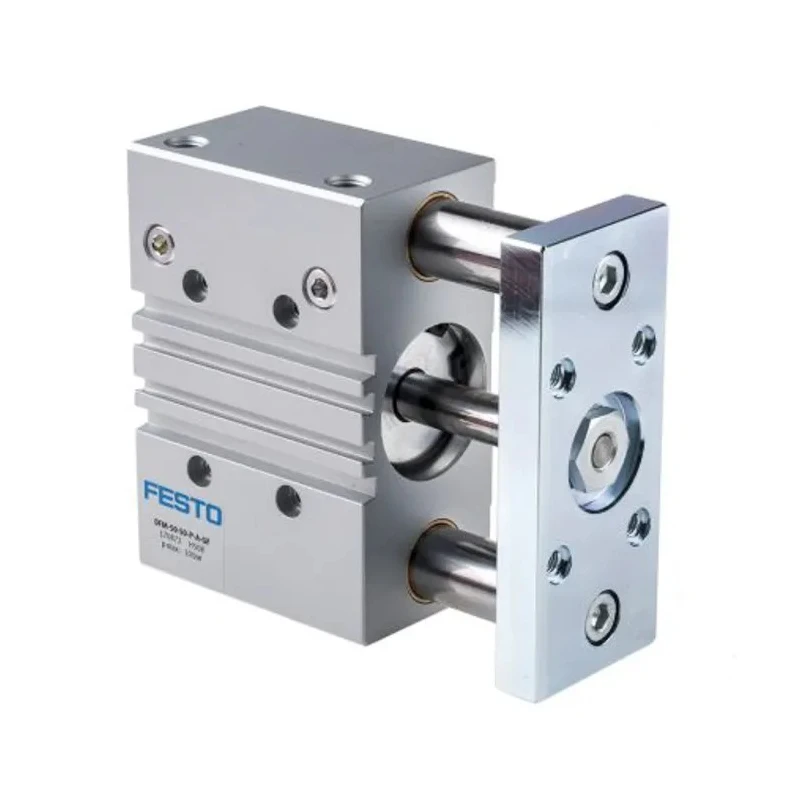

Festo Pneumatic Guided Cylinder 63mm Bore, Double Acting, 80mm Stroke, Through Hole Mount, Elastomer DFM-63-80-P-A-GF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Height | 78mm |
| Length | 194mm |
| Model | DFM-63-80-P-A-GF |
| Gross Weight | 6.3kg |
| Width | 162mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 80mm |
| Bore Diameter | 63mm |
| Action Type | Double Acting |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing, Plain Bearing |
| Piston Rod Thread Standard | ISO 228-1, ISO 1179-1 |
| Standards/ApprovalsRoHS, ISO 228-1, ISO 1179-1, ISO 8573-1 | 2010 (7:4:4) |
Key Features
- This guided cylinder integrates drive and guidance in a single compact housing.
- Equipped with four plain slide bearings offering high rigidity and resistance to lateral forces.
- Suitable for high load tasks including clamping, stopping, material handling, and lifting.
- Features elastomer cushioning plates to reduce operational noise and extend service life.
- Flexible mounting options with air supply ports on both top and side of the cylinder.
- Constructed from sturdy, maintenance-free aluminium with high torque resistance.
- Meets standards including RoHS and ISO certifications for pneumatic components.
- Operating temperature range is from -20°C to 80°C ensuring versatile environmental compatibility.
Product Description
Festo DFM-63-80-P-A-GF Pneumatic Guided Cylinder is a double acting driven actuator with integrated guide unit combining performance and durability.
It features a 63mm bore diameter and 80mm stroke length, optimized for handling high loads with superior rigidity provided by four plain slide bearings. This device excels in industrial applications such as clamping, stopping, material handling, and lifting where precise, reliable pneumatic operation is essential.
The cylinder mounts through a hole type configuration, allowing flexible installation possibilities, and is equipped with elastomer cushioning plates that minimize noise and extend the service life of the unit. The supply ports on top and side further enhance mounting flexibility to suit various industrial equipment designs.
The aluminium body construction provides excellent resistance to torque and lateral forces, ensuring robust and maintenance-free performance under continuous operation. Operating temperature ranges from -20°C to 80°C accommodate demanding environmental conditions.
This cylinder conforms to relevant standards including RoHS compliance and ISO norms such as ISO 228-1, ISO 1179-1, and ISO 8573-1:2010 for pneumatic equipment quality and safety assurance.
This guided cylinder combines drive and guide unit in one housing for high rigidity. Slide bearings effectively counteract lateral external forces. Elastomer cushions reduce noise and improve lifespan. Pressurized air connection ports on top and side allow flexible setup.
Suitable for high load pneumatic applications including clamping and lifting. Compact aluminium construction is sturdy and corrosion resistant. Meets multiple international standards and certifications. Operates reliably from -20°C to 80°C temperature range.
This Pneumatic Guided Cylinder is ideal for demanding industrial applications across mechanical, laboratory, manufacturing, HVAC, and automation sectors. Explore EnvMart for more high-quality pneumatic cylinders and related automation equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this pneumatic guided cylinder is 63mm.
This model features a stroke length of 80mm.
The maximum operating pressure for this cylinder is 10 bar.
The dimensions are as follows: height 78mm, length 194mm, and width 162mm.
It uses elastomer cushioning to reduce operational noise and extend service life.
The operating temperature range is from -20°C to 80°C.
This cylinder supports through hole mounting, allowing for flexible installation options.
It complies with RoHS and ISO standards including ISO 228-1, ISO 1179-1, and ISO 8573-1:2010.
It is suitable for high load tasks including clamping, stopping, material handling, and lifting.
It uses four plain slide bearings for high rigidity and resistance to lateral forces.
The gross weight of this model is 6.3kg.
It is constructed from sturdy, maintenance-free aluminium, providing high torque resistance.
