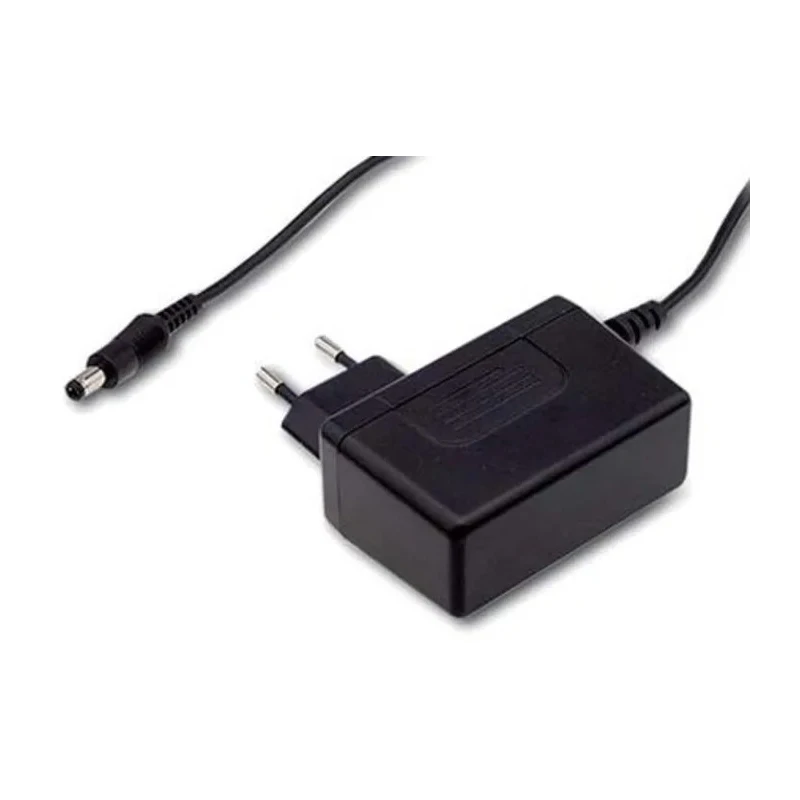

MEAN WELL AC/DC Adapter Type C Plug 264 V AC Input 3.33 A Output 12 V DC SGA40E12-P1J

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL AC/DC Adapter Type C Plug 264 V AC Input 3.33 A Output 12 V DC SGA40E12-P1J

Name: MEAN WELL AC/DC Adapter Type C Plug 264 V AC Input 3.33 A Output 12 V DC SGA40E12-P1J
Brand: MEAN WELL
SKU: 145055



Category AC/DC Adapter Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	SGA40E12-P1J
Cable Length	1m
Overall Length	75.5mm
Series	SGA40E
Overall Width	75.5mm
Maximum Operating Temperature	50°C
Plug Type	Type C
Maximum Input Voltage	264V ac
Maximum Output Current	3.33A
Standards/Approvals	IEC 60950-1, CE, UL 60950-1
Minimum Input Voltage	100V ac
Minimum Output Voltage	12V dc
Input Connector Type	EU Plug

Key Features

This adapter features a Type C plug designed for EU outlets.
The product offers a compact size with overall length and width of 75.5 mm.
The cable length is 1 meter for convenient connectivity.
It supports a wide input voltage range from 100 V AC to 264 V AC.
Maximum operating temperature is rated at 50°C for safe use in various environments.
Certified under IEC 60950-1, CE, and UL 60950-1 standards for safety and quality.
The unit features short circuit, overvoltage, and overload protection for enhanced durability.
The fully enclosed plastic case offers compact and slim design for easy transport.

Product Description

MEAN WELL SGA40E12-P1J AC/DC Adapter Type C wall-mounted power supply offers an output current of 3.33 A at 12 V DC, powered from a universal AC input range of 100 V AC to 264 V AC. This adapter is part of the SGA series, known for slim, ultra-compact designs with a 2-pole Euro plug (Type C) and high energy efficiency up to 91%, complying with EU ErP and CoC Version 5 standards.

The adapter includes short circuit, overvoltage, and overload protections to safeguard devices during operation. Its fully enclosed plastic case and Class II power classification (without earth pin) make it suitable for various industrial, consumer electronics, office facilities, and telecommunication applications.

The device's compact dimensions of 75.5 mm length and width enable easy installation in tight spaces while the 1-meter cable length provides flexibility for setup. It operates safely up to a temperature of 50°C and meets international safety standards including IEC 60950-1, CE, and UL 60950-1.

Common application areas for this power supply include powering industrial equipment, consumer electronics, and telecommunication devices where a reliable 12 V DC power source is required. The universal AC input makes this adapter compatible worldwide, supporting AC voltages from 100 V up to 264 V.

This adapter uses a Type C EU plug for connection. The maximum output current is 3.33 A at 12 V DC. The device length and width are both 75.5 mm. The operating temperature limit is 50°C. Complies with IEC 60950-1, CE, and UL 60950-1 safety standards.

Features robust protection against electrical faults. Highly efficient with low no-load power consumption. Slim, compact design suitable for space-constrained installations. Explore MEAN WELL products and related AC/DC Adapters on EnvMart for industrial and commercial power supply solutions.
