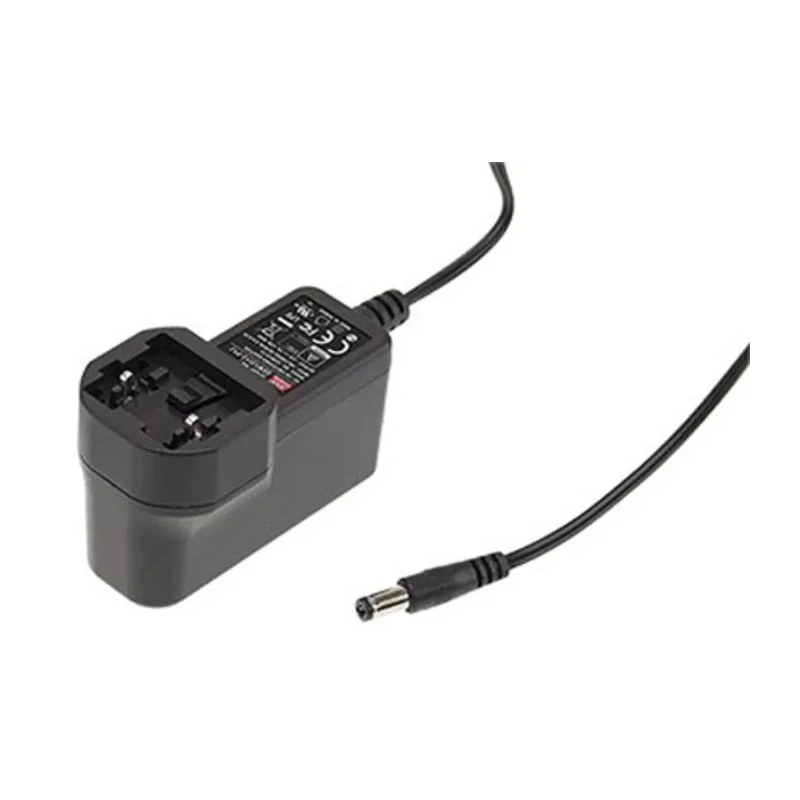

MEAN WELL AC/DC Adapter UK, Australia, US, EU 264V AC Output 660 mA 18V DC GEM12I18-P1J

MEAN WELL GEM12I18-P1J AC/DC Adapter is a high-reliability plug-in power supply designed to provide a stable 18 V DC output at 660 mA from a wide AC input range of 100 V to 264 V. The adapter supports interchangeable plug types for UK, Australia, US, and EU markets, enabling convenient global usage.

Housed in a flame-retardant 94V-0 plastic enclosure, this medical-grade adapter offers compliance with rigorous safety standards including ANSI/AAMI ES60601-1 and TUV EN60601-1, ensuring user protection in sensitive environments. The 2 x MOPP isolation rating and extremely low leakage current enhance suitability for medical devices such as blood glucose meters, blood pressure monitors, inhalers, nebulizers, sleep apnea devices, and other portable medical instruments.

Designed for energy efficiency, the GEM series adapter features efficiency ratings up to 90.5%, far surpassing regulatory requirements with Level VI certification. Its extremely low no-load consumption below 0.1 W contributes to power savings in standby and operational modes.

The adapter incorporates standard industry protection features including short circuit, overload, and over voltage protections, making it reliable for industrial, laboratory, and medical applications. It operates safely up to 70°C ambient temperature, ensuring durability in demanding conditions.

The 1.8 meter cable and universal plug input connector provide flexible and convenient installation options. Overall dimensions of 39 mm length, 73.9 mm width, and 48.5 mm depth make it compact and portable for various applications. Compliance with UL 60950-1, CE, IEC 60950-1 standards confirms the product's global safety approvals.

Compact plug-in power supply suitable for medical and industrial applications. Compatible with UK, Australia, US, and EU plug types for worldwide use. High efficiency up to 90.5% with ultra-low standby power consumption below 0.1 W.

Equipped with multiple safety protections including short circuit and overload safeguards. Operating temperature up to 70°C ensures reliable performance in harsh environments. Constructed with flame retardant 94V-0 plastic casing for user safety.

Meets medical safety standards with 2 x MOPP isolation and low leakage current. Includes universal plug input and 1.8 m cable length for convenient connection. Level VI energy efficiency certification supports energy conservation requirements.

This MEAN WELL GEM12I18-P1J AC/DC Adapter is ideal for industrial, laboratory, medical, and commercial uses requiring safe, efficient, and worldwide compatible DC power solutions. Explore more certified power supply solutions from MEAN WELL on EnvMart.
