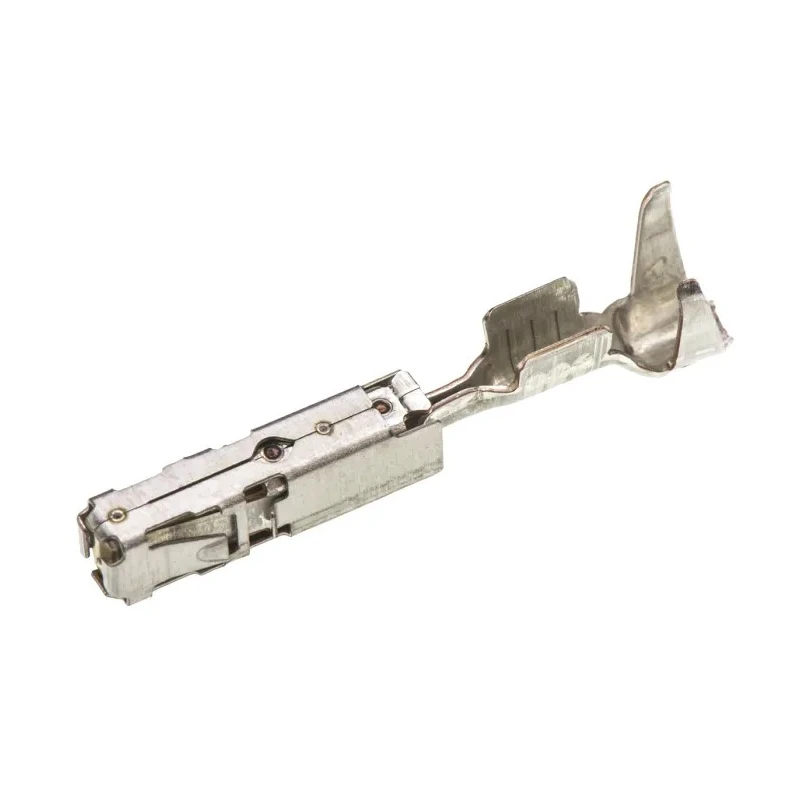

TE Connectivity AMP MCP 1.5K Series Female Crimp Terminal 12A 17 AWG to 20 AWG 19.8mm 1241380-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 12A |
| Length | 19.8mm |
| Gender | Female |
| Contact Material | Copper Nickel Silicon |
| Series | AMP MCP 1.5K |
| Termination Type | Crimp |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMP MCP 1.5K Connector Housing |
| Contact Plating | Silver |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 17AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 2mΩ |
Key Features
- Female gender crimp terminal designed for AMP MCP 1.5K connector housing.
- Constructed from copper nickel silicon with silver plating for reliable conductivity.
- Terminated by crimp with contact resistance below 2 milliohms.
- Operates reliably between -40°C and 150°C temperature range.
- Compact length of 19.8 mm suitable for PCB connector interfaces.
- 6N mating and unmating force with a mating area of 1.50 x 0.60 mm.
- Compatible with heavy-duty sealed connector systems ensuring IP67 protection.
- Ideal for automotive and industrial electronic applications requiring robust connectivity.
Product Description
TE Connectivity 1241380-3 AMP MCP 1.5K Series Female Crimp Terminal is a high-quality copper alloy contact designed for secure and reliable electrical connections in industrial and automotive environments. Rated for 12 amps, it supports wire gauges from 17 AWG to 20 AWG, terminated using a precision crimp method to ensure excellent electrical performance.
The contact features silver plating over a copper nickel silicon base material to guarantee corrosion resistance and durability. With a length of 19.8 mm, it fits AMP MCP 1.5K connector housings and offers a low maximum contact resistance of 2 milliohms, enhancing signal integrity in complex electronic assemblies.
This terminal operates within a temperature range of -40°C to 150°C, making it suitable for harsh environmental conditions. It includes a single wire sealing system (SWS) that prevents ingress of dust and moisture, enhancing connector longevity and reliability especially in automotive applications.
The product supports a 6N mating and unmating force with a precise mating area dimension of 1.50 x 0.60 mm, ensuring solid mechanical and electrical connection stability. It is also compatible with TE Connectivity's Heavy Duty Sealed Connector Series (HDSCS), which provides rugged connectors for off-road and commercial vehicle applications requiring IP67 protection against dust and water.
These female crimp terminals are essential components within industrial manufacturing, automotive wiring harnesses, and electrical distribution systems where secure wire termination and environmental resistance are critical.
Female gender crimp terminal designed for AMP MCP 1.5K connector housing. Constructed from copper nickel silicon with silver plating for reliable conductivity. Terminated by crimp with contact resistance below 2 milliohms.
Operates reliably between -40°C and 150°C temperature range. Compact length of 19.8 mm suitable for PCB connector interfaces. 6N mating and unmating force with a mating area of 1.50 x 0.60 mm. Compatible with heavy-duty sealed connector systems ensuring IP67 protection.
Ideal for automotive and industrial electronic applications requiring robust connectivity.
EnvMart offers a comprehensive range of TE Connectivity electrical components, including this AMP MCP 1.5K series contact, supporting professional industrial, automotive, and manufacturing sectors with quality connector solutions.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal is rated for a maximum current of 12A.
It operates reliably within a temperature range of -40°C to 150°C.
This terminal is compatible with wire sizes from 17 AWG to 20 AWG, which corresponds to a minimum of 0.5 mm² and a maximum of 1 mm².
The terminal is constructed from copper nickel silicon and features silver plating for reliable conductivity.
The length of this crimp terminal is 19.8 mm.
The maximum contact resistance for this terminal is below 2 milliohms.
This model employs a crimp termination method for secure electrical connections.
It is designed for use with the AMP MCP 1.5K connector housing.
The terminal requires a mating and unmating force of 6N.
Yes, it is compatible with heavy-duty sealed connector systems, ensuring IP67 protection against dust and water.
This crimp terminal is ideal for automotive and industrial electronic applications requiring robust connectivity.
The country of origin for this terminal is India.
