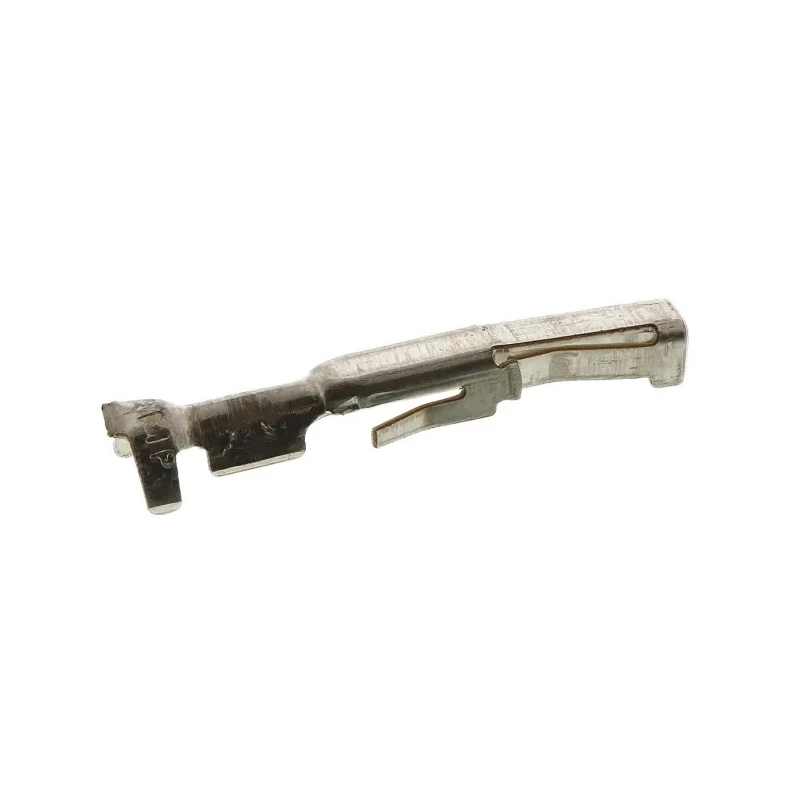

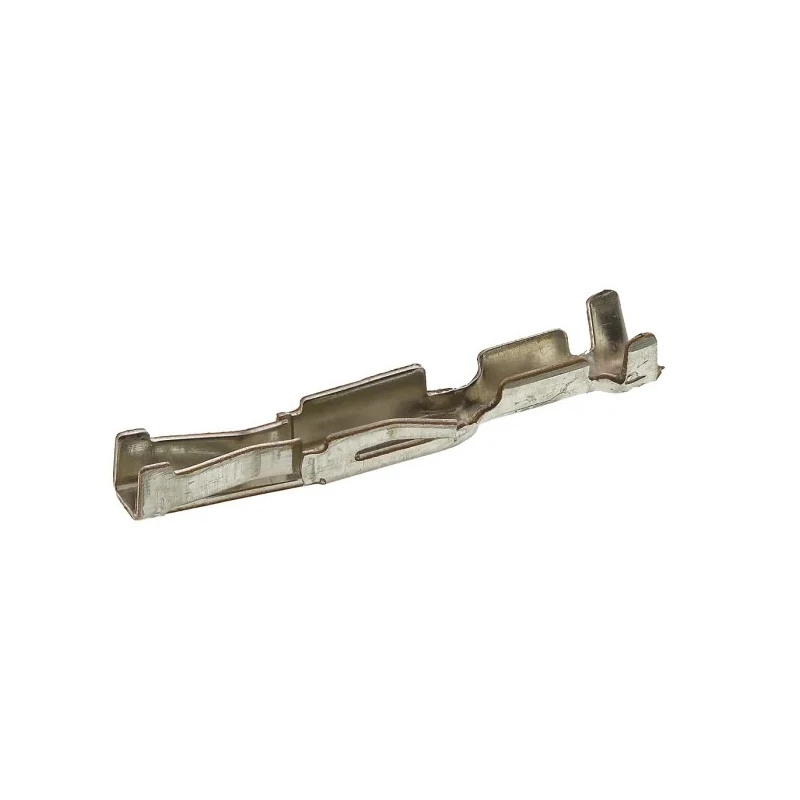

TE Connectivity AMPMODU HE14 Series Female Crimp Terminal 3A 28 AWG Min, 24 AWG Max HE14
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 17.4mm |
| Model | HE14 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU HE14 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 15mΩ |
Key Features
- The terminal is made from tin-plated phosphor bronze for durability and conductivity.
- It supports wire sizes from 28 AWG to 24 AWG with a 3A current rating.
- Recommended wire strip length is 3.25mm for optimal crimping.
- Operating temperature ranges from -65°C to 105°C allowing wide environmental use.
- Maximum contact resistance is 15 milliohms ensuring reliable connection.
- Termination type is crimp, suitable for industrial connector housings.
Product Description
TE Connectivity HE14 Series Female Crimp Terminal offers a reliable and durable solution for electrical connections in industrial, automation, and control systems. This terminal supports wire sizes from 28 AWG to 24 AWG and is rated for a current of 3A, making it suitable for signal and low power applications.
The crimp terminal is constructed from phosphor bronze with a tin plating that ensures excellent conductivity and resistance to corrosion. It is specifically designed to be used with AMPMODU HE14 connector housings, part of a standardized interconnect system featuring a 2.54mm centreline pitch. This system includes IDC receptacle assemblies, shrouded headers, and Crimp Contacts for versatile industrial applications.
Key technical features include a maximum operating temperature of 105°C and a minimum operating temperature of -65°C, supporting a broad range of environmental conditions. The crimp termination requires a recommended wire strip length of 3.25mm for secure and reliable electrical contact. With a length of 17.4mm, these terminals provide a compact and efficient design to fit into dense PCB connector layouts.
The maximum contact resistance of 15 milliohms ensures minimal voltage drop and reliable signal integrity. These terminals are tin plated to enhance durability and reduce chances of oxidation.
TE Connectivity's AMPMODU HE14 interconnect system is widely used in industrial automation, manufacturing equipment, process control, and instrumentation applications requiring standardized and dependable wiring solutions.
The terminal is made from tin-plated phosphor bronze for durability and conductivity. Supports wire sizes from 28 AWG to 24 AWG with 3A current rating. Recommended wire strip length is 3.25mm for optimal crimping. Operating temperature range from -65°C to 105°C allows wide environmental use.
Maximum contact resistance of 15 milliohms ensures reliable connection. Length 17.4mm enables compact and space-saving terminal design. Termination type is standard crimp ideal for industrial connector housings. This product is manufactured in the United Kingdom and is provided in new condition, suitable for industrial, laboratory, and manufacturing utilization.
Discover more electronic components and crimp contact solutions on EnvMart to enhance your industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HE14 series female crimp terminal has a current rating of 3A.
This crimp terminal supports wire sizes from 28 AWG to 24 AWG.
The recommended wire strip length for optimal crimping is 3.25mm.
The operating temperature range for this terminal is from -65°C to 105°C.
The maximum contact resistance of this terminal is 15 milliohms.
The terminal is made from tin-plated phosphor bronze, which enhances durability and conductivity.
The length of this terminal is 17.4mm.
This terminal is designed for use with AMPMODU HE14 connector housings.
This terminal uses a crimp termination type.
This product is manufactured in the United Kingdom.
It is suitable for signal and low power applications in industrial, automation, and control systems.
The tin plating on the terminal enhances durability and reduces the chances of oxidation, ensuring reliable connections.
