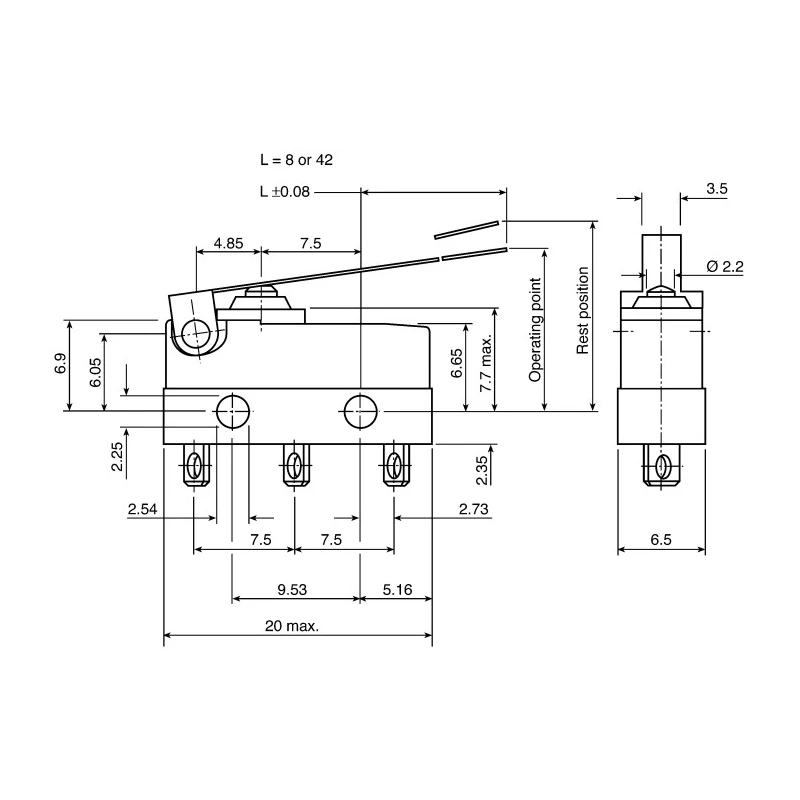

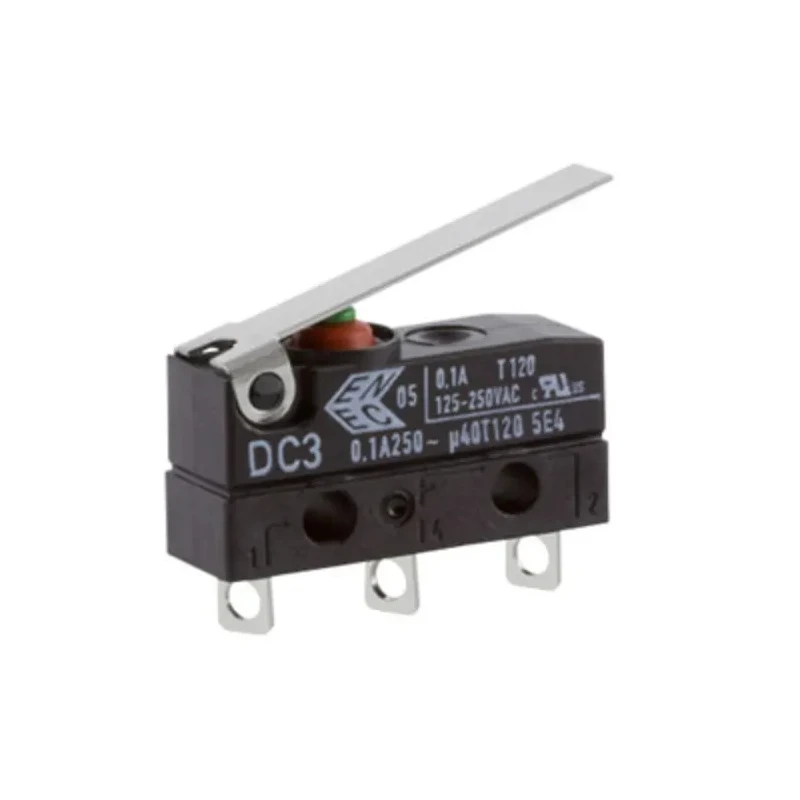

ZF Hinge Lever Micro Switch Solder Terminal 100mA 250 V ac SPDT IP6K7 DC3C-A1LC
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ZF |
| Model | DC3C-A1LC |
| IP Rating | IP6K7 |
| Housing Material | Polybutylene Terephthalate, Polyethylene Terephthalate |
| Series | DC |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Contact Current | 100mA |
| Operating Force | 0.69N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DC Subminiature |
| ZF Hinge Lever Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP6K7Brand | ZF |
Key Features
- The switch features a durable hinge lever actuator for reliable operation.
- It is designed with solder terminals for secure and easy connectivity.
- The contact current rating is 100mA suitable for low power applications.
- Housing is made of high-grade Polybutylene Terephthalate and Polyethylene Terephthalate materials.
- This switch offers an IP6K7 rating, making it resistant to water ingress and dust.
- Operating force is low at 0.69N, ensuring smooth actuation.
- Operational temperature ranges from -40°C to a maximum of 120°C.
- Mechanical life expectancy is rated for 1,000,000 operations ensuring longevity.
Product Description
The ZF DC3C-A1LC is a hinge lever micro switch designed for industrial and commercial electrical applications requiring precise, reliable switching at low current levels.
This micro switch operates with a solder terminal connection type and supports a maximum contact current of 100mA at 250 V ac, making it ideal for signal-level switching and control circuits.
The actuator utilizes a robust hinge lever, providing dependable mechanical operation with an operating force of just 0.69N to ensure effective tactile feedback. The housing is constructed from Polybutylene Terephthalate (PBT) and Polyethylene Terephthalate (PET), materials approved for electrical durability and flame resistance (UL 94V-0), ensuring operational safety and longevity in demanding environments.
This device boasts an IP6K7 ingress protection rating, granting high resistance against dust and temporary water immersion, suitable for outdoor or harsh environment installations.
The microswitch supports an operating temperature range from -40°C to 120°C, with a mechanical life rated for one million operations, underscoring robust design for extended duty cycles.
Its Single Pole Double Throw (SPDT) contact configuration allows for versatile switching applications, including industrial automation, HVAC systems, and control panels, where precise limit or detector switching is essential.
Durable hinge lever actuator for stable mechanical switching. Solder terminals ensure secure electrical connections. Low operational force of 0.69N for responsive actuation. Polybutylene Terephthalate and Polyethylene Terephthalate housing materials for durability and flame resistance.
IP6K7 rating provides dust and water ingress protection. Wide operating temperature range from -40°C to 120°C suitable for varied environments. Mechanical life span of one million operations supports long-term usage. Single Pole Double Throw (SPDT) configuration for flexible switching.
Manufactured in Germany, ensuring compliance with high-quality standards.
This micro switch is ideal for use in industrial automation systems, electrical control machinery, HVAC units, and other applications where precise, reliable switching is critical.
Explore EnvMart’s range of ZF Micro Switches for quality electrical components designed to meet rigorous industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current rating for this micro switch is 100mA, making it suitable for low power applications.
This micro switch can operate at a contact AC voltage of 250V.
It features a hinge lever actuator, which provides reliable mechanical operation and tactile feedback.
The operating temperature range for this model is from -40°C to a maximum of 120°C.
This device has an IP6K7 rating, indicating high resistance to dust and temporary water immersion.
The housing is made from Polybutylene Terephthalate (PBT) and Polyethylene Terephthalate (PET), which are known for their electrical durability.
The mechanical life expectancy of this switch is rated for 1,000,000 operations, ensuring longevity in use.
The operating force required for actuation is low at 0.69N, allowing for smooth and responsive operation.
This model uses solder terminals for secure and easy connectivity.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
This device complies with RoHS standards, ensuring it meets environmental regulations.
This micro switch is manufactured in Germany, ensuring compliance with high-quality standards.
