| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 16.74mm |
| Model | 770904-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |

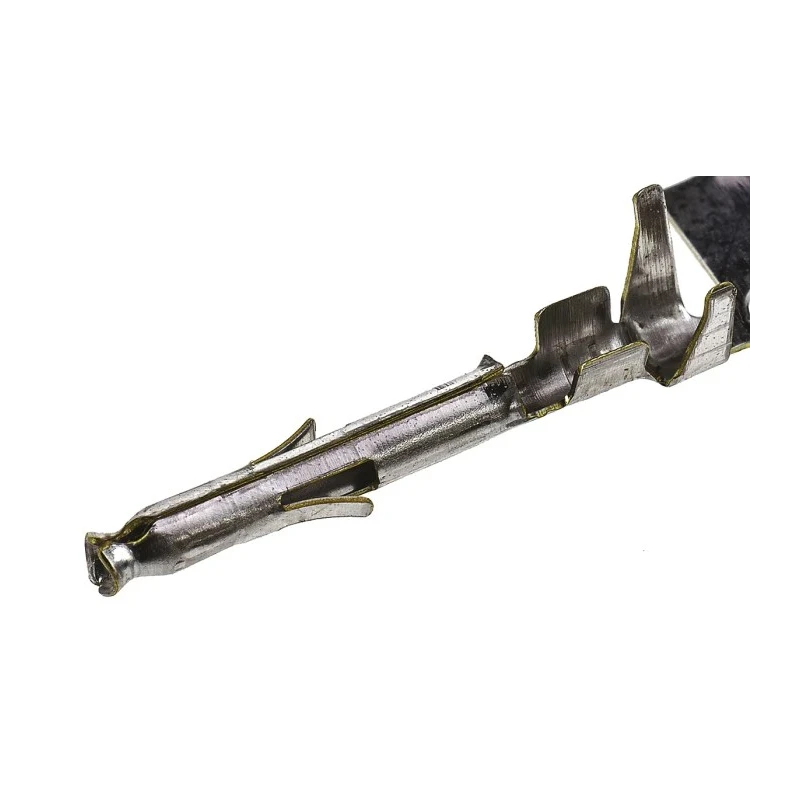

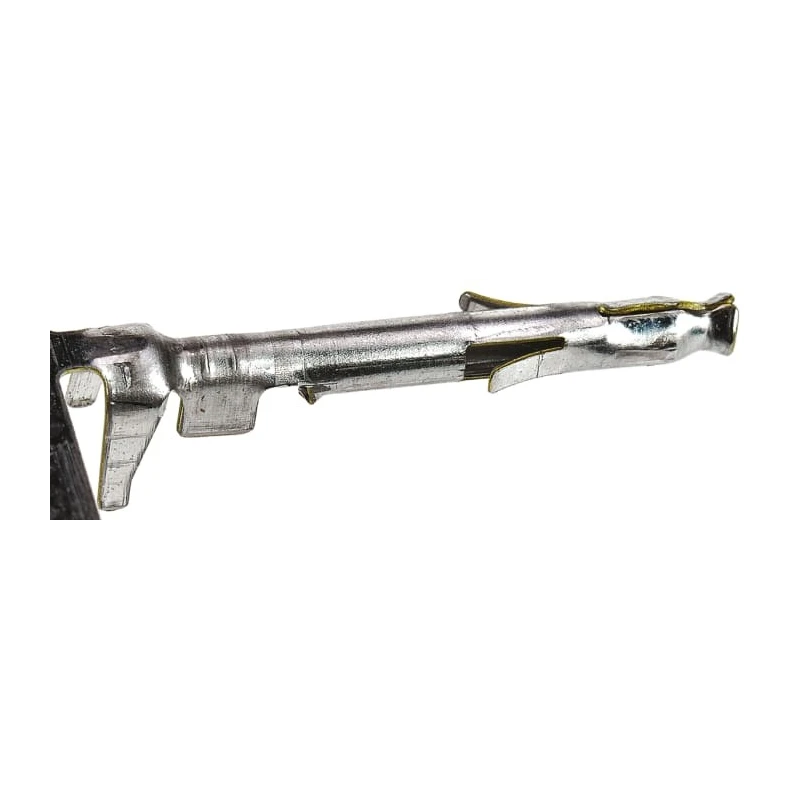

TE Connectivity 770904-1 Female Crimp Terminal from the Mini-Universal MATE-N-LOK Series is engineered to provide dependable electrical connections for a wide range of industrial, electronic, and manufacturing applications. Designed for Mini-Universal MATE-N-LOK Connector Housing, this crimp terminal supports a maximum current rating of 3A, making it suitable for low-power wiring tasks in electronic components assembly and power distribution.
The terminal is crafted from brass contact material with tin plating to deliver excellent conductivity while resisting corrosion. It accommodates wire sizes ranging from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²), providing flexibility for various wiring configurations.
With an overall length of 16.74 mm and a crimp termination type, installation is straightforward, ensuring a secure and stable connection. The connector terminal operates efficiently within a broad temperature range from -30°C to 105°C, making it suitable for use in harsh industrial environments, HVAC systems, and electronic assemblies.
This component features a maximum contact resistance of 20 milliohms, which ensures signal integrity and reliable current flow. Produced in the United States, it complies with quality manufacturing standards expected in high-reliability applications.
Use cases for this crimp terminal include electronic device manufacturing, PCB assembly lines, power connectors, and industrial wiring harnesses where precision and durability are essential.
Designed for use with Mini-Universal MATE-N-LOK Connector Housing. Suitable for wire sizes from 22 AWG to 18 AWG. Manufactured with brass contact material and tin plating. Supports current up to 3A for reliable conductivity.
Wide operating temperature range from -30°C to 105°C. Compact form factor with 16.74 mm length. Crimp termination for secure and stable connections. Maximum contact resistance of 20 milliohms. Explore more Connectors and electronic components at EnvMart to suit diverse industrial and manufacturing needs.
