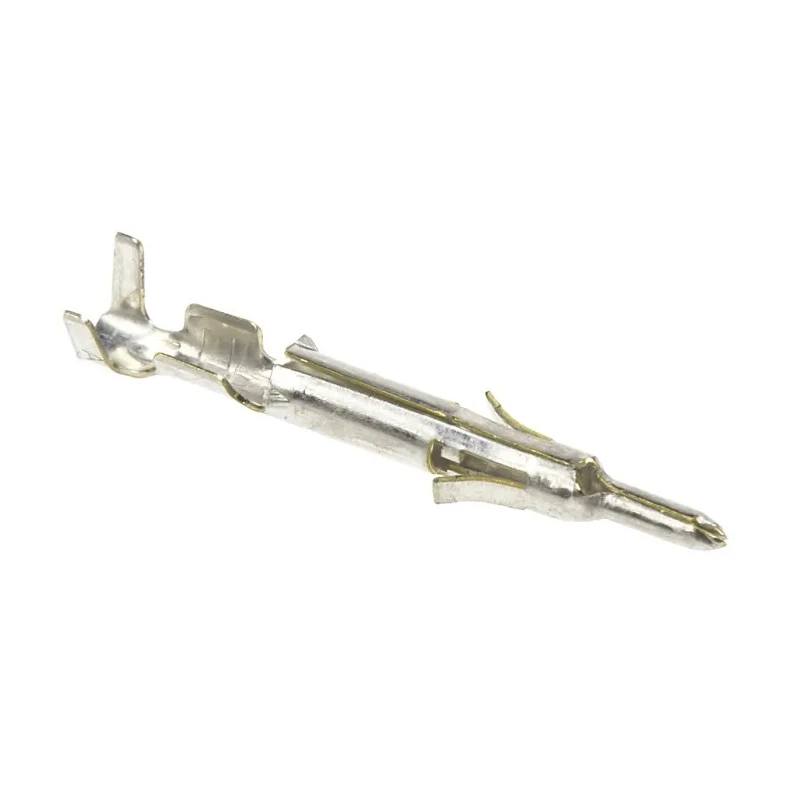

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current 26-22 AWG Wire Size 170363-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current 26-22 AWG Wire Size 170363-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current 26-22 AWG Wire Size 170363-1
Brand: TE Connectivity
SKU: 144526
Price: 0.1 USD
Availability: InStock



Category Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	7A
Model	170363-1
Gender	Male
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-20°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ

Key Features

Compatible with Mini-Universal MATE-N-LOK Connector Housing.
Supports wire sizes from 26 AWG (0.1mm²) to 22 AWG (0.35mm²).
Constructed from brass with tin plating for corrosion resistance.
Features male contact gender with crimp termination type.
Operates efficiently within a temperature range of -20°C to 105°C.
Ensures maximum contact resistance of 10 milliohms for optimal conductivity.
Suitable for consumer electronics, HVAC, power supplies, lighting, medical, and security applications.
Offers durability and reliable electrical performance in various environments.

Product Description

TE Connectivity 170363-1 Mini-Universal MATE-N-LOK Series Male Crimp Terminal provides high-quality, reliable electrical connection solutions for industrial and commercial use.

Designed specifically for Mini-Universal MATE-N-LOK Connector Housing, this male crimp terminal accommodates wire sizes from 26 AWG (minimum 0.1mm²) up to 22 AWG (maximum 0.35mm²). The terminal is crafted from brass material with tin plating that enhances corrosion resistance and durability.

Rated for a current of 7A and capable of handling operating voltages up to 600 Vac/dc, it efficiently performs in demanding electrical environments. Its termination is by crimping, allowing secure mechanical and electrical connection. Operating temperatures range from -20°C to 105°C, making it suitable for applications in HVAC, power supplies, lighting, medical devices, consumer electronics, and security systems.

The maximum contact resistance is limited to 10 milliohms ensuring minimal voltage drop and stable connectivity. This product is ideal for industrial, commercial, and manufacturing sectors requiring precision and dependable Connectors.

Compatible with Mini-Universal MATE-N-LOK Connector Housing. Supports wire sizes from 26 AWG (0.1mm²) to 22 AWG (0.35mm²). Brass construction with tin plating for corrosion resistance. Male contact gender for various wiring configurations.

7A current rating and 600 Vac/dc operating voltage. Terminated by crimp for secure connections. Operating temperature range from -20°C to 105°C. Ideal for use in consumer electronics, HVAC, lighting, medical, and security applications.
