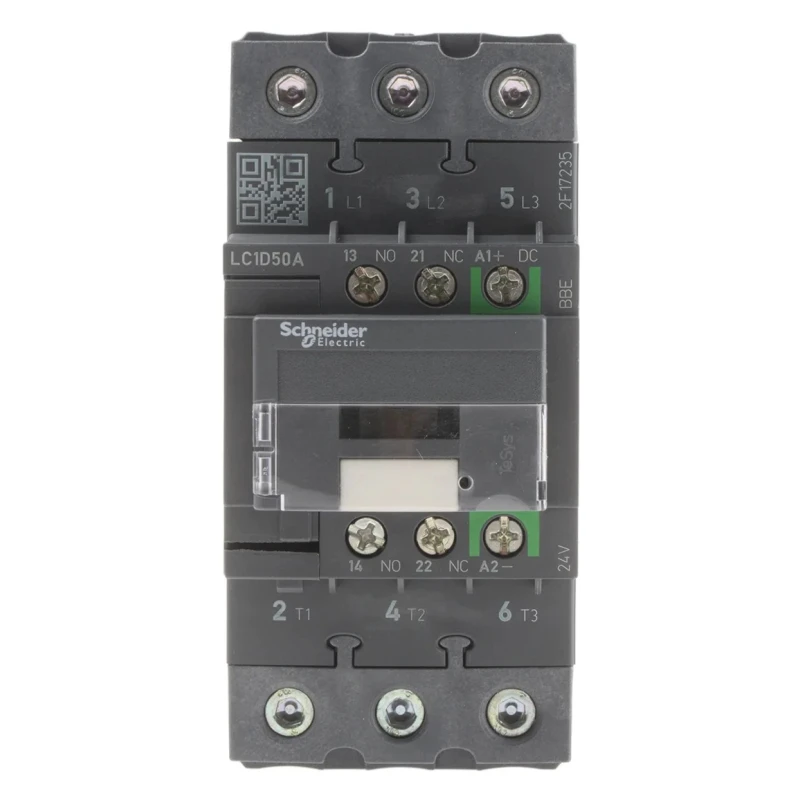

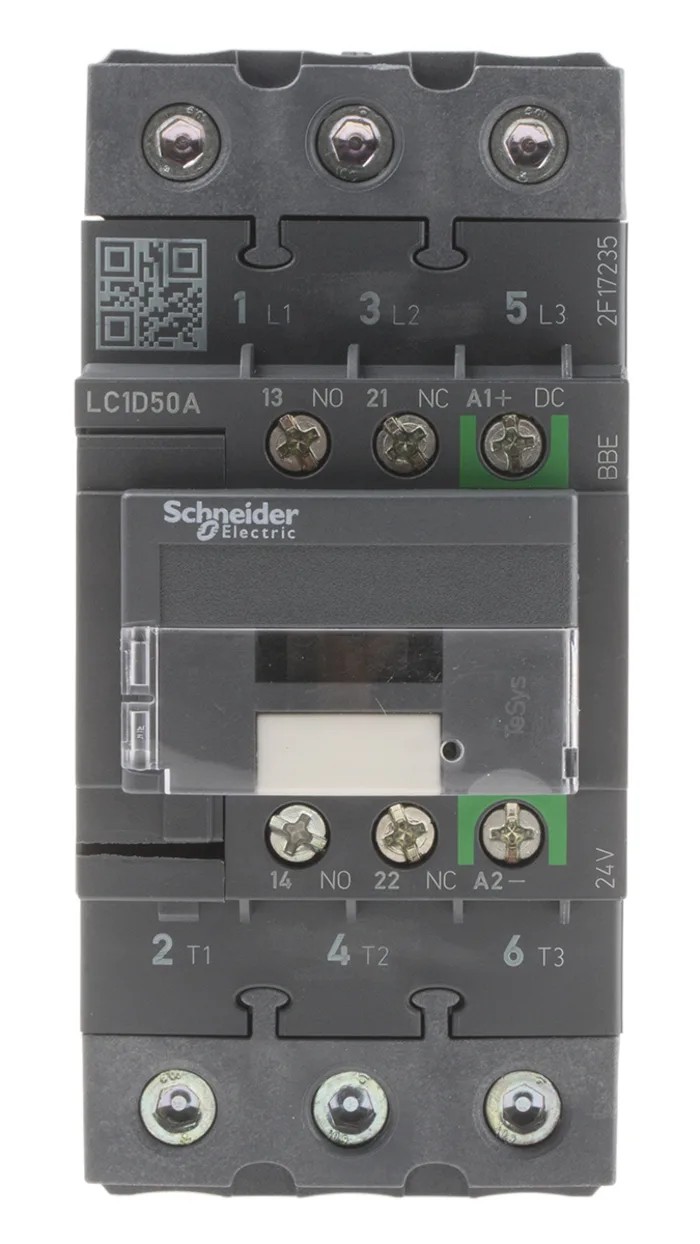

Schneider Electric TeSyS D Contactor, 24V DC Coil, 3-Pole, 50 A, 22 kW, 3 NO, 690V AC LC1D50ABBE
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 55mm |
| Model | LC1D50ABBE |
| Depth | 122mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 50A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 50A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 24V DC coil suitable for efficient motor control.
- Features three poles with 3 NO (Normally Open) contacts for secure switching.
- Rated contact current of 50 A and power rating of 22 kW for robust operation.
- Supports contact voltage up to 690V AC ensuring broad electrical compatibility.
- Mountable on DIN Rail with durable screw terminals for vibration resistance.
- Flame-retardant body design for safety in demanding industrial environments.
- Mechanical durability rated for 6 million cycles ensuring extended service life.
- Operational temperature range from -25°C to 60°C for varied applications.
Product Description
Schneider Electric LC1D50ABBE TeSyS D Contactor is engineered for motor control and resistive loads featuring a 24V DC coil, 3 poles, and a contact current rating of 50 A with a power rating of 22 kW. This contactor operates reliably up to 690V AC and is suitable for various industrial applications including lighting installations, refrigeration units, medical facilities, and food and beverage manufacturing.
The contactor offers DIN rail mounting and is equipped with screw-type terminals designed to withstand vibration and shock. Its flame-retardant body ensures safety by limiting burn duration to a maximum of 30 seconds in case of fire. Mechanical durability is rated at 6 million cycles, delivering extended operational life.
With an operational temperature range from -25°C to 60°C, the LC1D50ABBE functions effectively in demanding environments. It incorporates 2 auxiliary contacts configured as 1 NO and 1 NC, providing versatile control circuit options. Additionally, it features Everlink terminals to facilitate circuit breaker connections without accessories.
This contactor is constructed with sustainability in mind, being 65% recyclable to reduce industrial waste. It complies with international standards such as CCC, CSA, EAC, IEC, RoHS, and UL, ensuring quality and safety for industrial, laboratory, electrical automation, and manufacturing applications.
Equipped with 24V DC coil voltage for effective motor control. 3 poles with 3 Normally Open contacts for reliable switching. Rated for 50 A contact current and 22 kW power rating. Mount type: DIN Rail with screw terminals for robust installation.
Mechanically durable for 6 million cycles to provide longevity. Flame-retardant body for enhanced safety performance. Operational temperature range from -25°C to 60°C. Includes 2 auxiliary contacts, 1 NO and 1 NC. Supports control circuit voltage of 24V DC for enhanced reliability.
Designed as a Better World Product with recyclable materials.
Ideal for industrial automation, HVAC, manufacturing plants, and commercial electrical systems, this Schneider Electric contactor combines safety, durability, and high performance. Browse the collection of Contactors and control gear to find components tailored to your industrial needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor has a rated contact current of 50 A, suitable for robust operation in various applications.
It has a power rating of 22 kW, making it effective for motor control and resistive loads.
The operational temperature range is from -25°C to 60°C, allowing it to function effectively in varied environments.
This model supports DIN rail mounting, which facilitates secure installation in electrical panels.
It features three poles with a configuration of 3 Normally Open (NO) contacts for reliable switching.
The maximum contact voltage supported by this unit is 690V AC, ensuring broad electrical compatibility.
It includes 2 auxiliary contacts configured as 1 Normally Open (NO) and 1 Normally Closed (NC).
This contactor complies with several international standards, including CCC, CSA, EAC, IEC, RoHS, and UL.
It is equipped with screw-type terminals, designed for vibration resistance and secure connections.
The mechanical durability is rated for 6 million cycles, ensuring an extended service life in operational settings.
The coil voltage is 24V DC, which is suitable for effective motor control.
This contactor is designed for motor control and resistive loads, making it suitable for various industrial applications.
