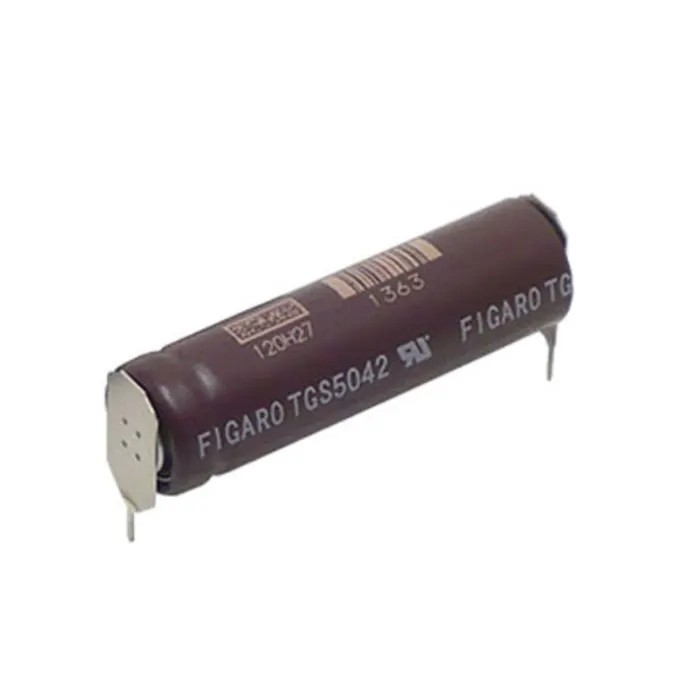

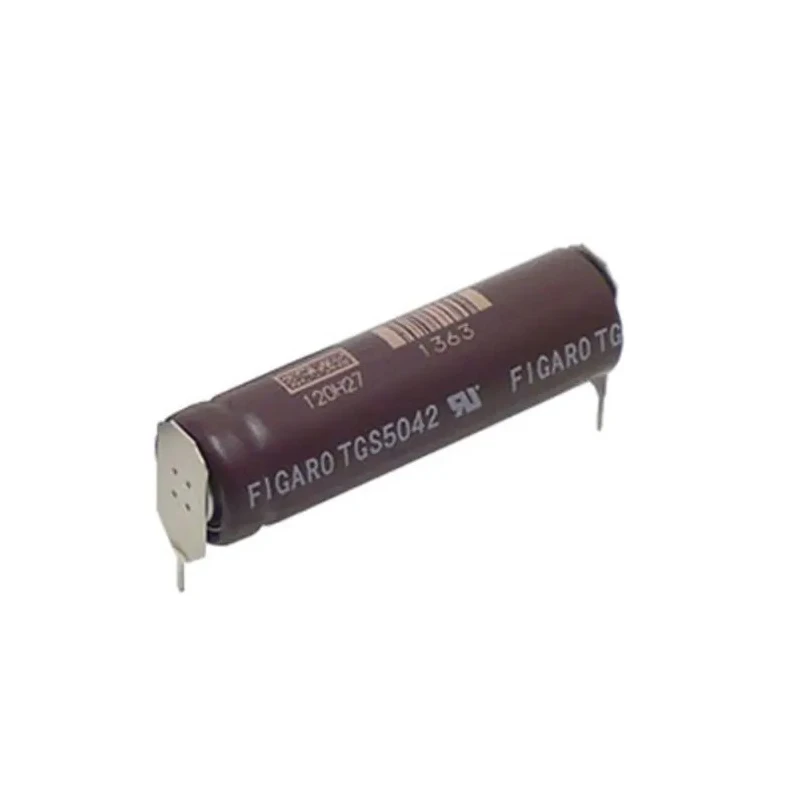

Figaro Carbon Monoxide Air Quality Sensor Battery Operable Electrochemical Sensor TGS5042-A00

Free Delivery in India | Lowest Global Shipping Charges

Figaro Carbon Monoxide Air Quality Sensor Battery Operable Electrochemical Sensor TGS5042-A00

Name: Figaro Carbon Monoxide Air Quality Sensor Battery Operable Electrochemical Sensor TGS5042-A00
Brand: Figaro
SKU: 144026
Price: 46.76 USD
Availability: InStock



Category Sensor ICs Brand Figaro Condition New

Specifications

Country of Origin	India
Accuracy	5 %FS
Brand	Figaro
Response time	60s
Height	14.6mm
Length	49.7mm
Model	TGS5042-A00
Gross Weight	12g
Width	14.1mm
Series	TGS5042
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-5°C
Gases Detected	Carbon Monoxide
Standards/Approvals	and RoHS, EN50291, Meets UL2034, UL Component
Pin Count	4
Maximum Supply Voltage	10mV

Key Features

The sensor detects carbon monoxide gas with 5% full scale accuracy.
It features a response time of 60 seconds ensuring timely detection.
Rated for operation between -5°C and 55°C temperature range.
Operates at a maximum supply voltage of 10mV with a 4-pin configuration.
Compact sensor dimensions are 49.7mm length, 14.6mm height, and 14.1mm width.
Designed to meet safety standards including RoHS, EN50291, and UL2034 compliance.
High repeatability and selectivity to carbon monoxide for reliable air quality monitoring.
Simple calibration and low power consumption optimize ease of integration.

Product Description

Figaro TGS5042-A00 is a battery-powered electrochemical carbon monoxide air quality sensor designed for precise detection and monitoring of CO gas levels. It is ideally suited for applications such as CO monitoring, fire detection, residential and commercial ventilation, and HVAC systems. The sensor utilizes environmentally friendly electrolytes and offers reduced sensitivity to interference gases, providing accurate and reliable performance.

The TGS5042 sensor operates with a maximum supply voltage of 10mV and incorporates a 4-pin interface in a compact form factor measuring 49.7mm in length, 14.6mm in height, and 14.1mm in width. It operates effectively within a temperature range from -5°C to 55°C. Its 5% full scale accuracy and a 60-second response time enable timely and accurate gas detection critical for safety and environmental monitoring.

This sensor is noted for its high repeatability, selectivity to carbon monoxide, and simple calibration procedure, making it suitable for integration into gas detection and air quality control systems. Its low power consumption and long operating life reduce maintenance requirements and ensure continuous, reliable operation over extended periods.

The sensor detects carbon monoxide with high precision and stability. Battery operable design allows for portable or remote deployment. Environmentally friendly electrolyte used for sensor operation. Meets critical safety and performance standards including UL2034 and EN50291.

Compact size enables PCB mounting and integration into various devices. Designed for use in industrial, laboratory, HVAC, residential, and commercial air quality applications.

Figaro’s TGS5042-A00 Carbon Monoxide Sensor provides a trusted component for systems requiring accurate monitoring of hazardous CO levels, enhancing safety and environmental quality management. Explore our extensive selection of Sensor ICs for diverse industrial and electronic applications on EnvMart.
