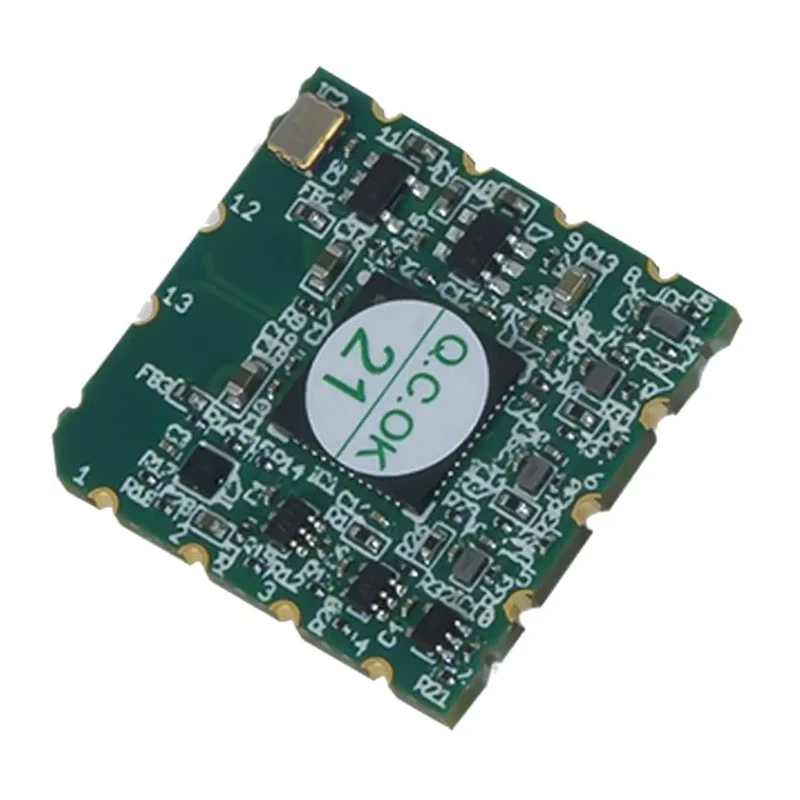

Digilent Programming Module for Use with FPGA Devices 22.75 x 21.5mm 410-308

Digilent 410-308 is a programming module designed for high-speed programming of Xilinx FPGA devices. This surface-mount JTAG-SMT2 module integrates seamlessly onto target boards as a component, enabling development and testing with efficient signal interfacing. With dimensions measuring 22.75 x 21.5mm, this compact module is suitable for embedded applications requiring direct FPGA configuration access.

The module is compatible with all Xilinx tools, supporting the IEEE 1149.7-2009 Class T0 through Class T4 standards, including 2-Wire JTAG extensions. It features an on-board ADP123AUJZ 300mA voltage regulator, providing stable power, and includes a separate voltage reference line that can drive JTAG and SPI signal voltages between +1.8V and +5V to accommodate different target board operating voltages.

Connectivity is provided through a USB 2.0 High-Speed micro USB port, enabling bus speeds up to 30Mbit/sec, making programming faster and efficient. The GPIO pin supports processor reset functionality for Xilinx Zynq platforms, enhancing integration in advanced system designs. SPI programming modes include mode 0 and 2 at up to 30Mbit/sec and modes 1 and 3 at up to 2Mbit/sec, suitable for various FPGA configurations.

The Digilent Adept software and Adept SDK fully support this module, facilitating seamless programming and debugging workflows in industrial, research, educational, and manufacturing environments involving FPGA-based systems. This module is ideal for electronics manufacturers and developers requiring embedded system FPGA programming support.

Note that the 410-308 model corresponds to the JTAG-SMT2 version with USB connector fitted. A variant without the USB connector is also available (JTAG-SMT2-NC). Set contains 1 Programming Module. Explore more FPGA development accessories and modules at EnvMart for enhanced embedded system design and testing solutions.

Compatible with all Xilinx tools providing broad support. Supports IEEE 1149.7-2009 Class T0 to Class T4 standards including 2-Wire JTAG. On-board ADP123AUJZ 300mA voltage regulator for stable power supply. Separate Vref line allowing JTAG and SPI signal voltages between +1.8V and +5V.

USB 2.0 High-Speed port enables JTAG/SPI bus at speeds up to 30Mbit/sec. MicroUSB PC connector on JTAG-SMT2 version for easy host connection. GPIO pin available for processor reset on Xilinx Zynq platforms. SPI programming modes 0/2 up to 30Mbit/sec and modes 1/3 up to 2Mbit/sec.

Fully supported by Digilent Adept software and Adept SDK for development ease.
