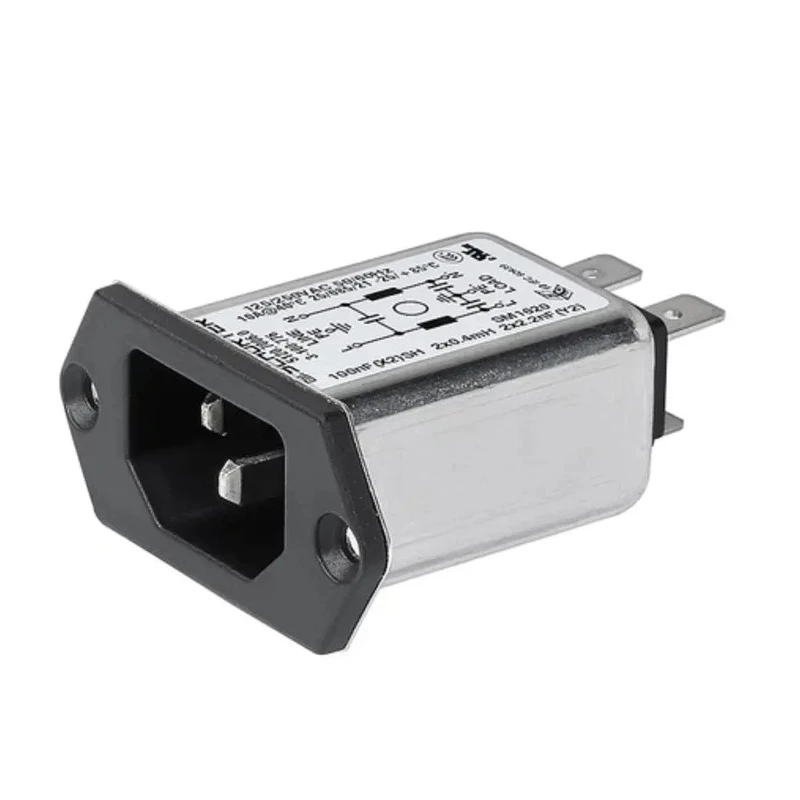

Schurter 5120 Series IEC Filter 4A 250V Line Filter Quick Connect 3-101-144

Schurter 3-101-144 IEC Filter is a compact line filter from the 5120 series rated at 250V and 4A with quick connect termination. This IEC filter features a plastic flange designed to eliminate bevel edges, providing a sleek, flat design that covers the metal flange surface of the filter case.

The filter supports mounting from the front, rear, and side, including screw-on and snap-in versions, as well as PCB mounting with an earth terminal. It is engineered to offer optimal electromagnetic shielding, making it ideal for electronic devices with transient load conditions.

This filter is particularly suited for use in compact, high density switching power supplies, medical equipment compliant with IEC 60601-1 standards, datacom devices, and industrial appliances. Protection class II variants are also suited for medical devices used in home environments per IEC 60601-1-11.

Operating within a temperature range of -25°C to 85°C and frequency of 60Hz, the filter features IEC connector types C14 and C18. Note that the fuse drawer compatible with 5 x 20 mm fuses is not included and must be ordered separately.

Compact 5120 series design with plastic flange. Quick connect termination type for easy installation. Supports IEC connector types C14 and C18. Suitable for standard and medical applications. Operating temperature range from -25°C to 85°C.

Designed for high transient load switching power supplies. Protection class II versions suited for home medical devices. Fuse drawer sold separately for 5 x 20 mm fuses.

Applications include use in industrial, laboratory, construction, HVAC, manufacturing, and medical devices requiring high performance power line filtering. Schurter products provide reliable and compact solutions for electrical noise suppression in demanding environments.
