Cosel Switching Power Supply 100.5W, 15V DC Output, 264V AC Input, Chassis Mount PJA100F-15

Free Delivery in India | Lowest Global Shipping Charges

Cosel Switching Power Supply 100.5W, 15V DC Output, 264V AC Input, Chassis Mount PJA100F-15

Name: Cosel Switching Power Supply 100.5W, 15V DC Output, 264V AC Input, Chassis Mount PJA100F-15
Brand: Cosel
SKU: 143775



Category Switching Power Supplies Brand Cosel Condition New

Specifications

Country of Origin	China
Brand	Cosel
Power	100.5W
Efficiency	86%
Length	41mm
Model	PJA100F-15
Depth	97mm
Gross Weight	500g
Width	109mm
Mount Type	Chassis
Series	PJA100F
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	CE, cURus, RoHS, UL
Maximum Output Voltage	15V dc
SMPS Output Current	6.7A
Minimum Input Voltage	85V ac

Key Features

Single output with a current of 6.7A for reliable performance.
Wide input voltage range from 85V AC to 264V AC suitable for universal use.
Operating temperature range from -20°C to 70°C with derating required.
Compact chassis size with dimensions 109mm width, 41mm length, and 97mm depth.
Efficiency of 86% ensures optimized power consumption.
Complies with CE, cURus, RoHS, and UL standards for safety and quality.
Includes harmonic attenuator complying with IEC61000-3-2 Class A for power quality.
Low standby power consumption typical 1.5W at AC240V no load condition.

Product Description

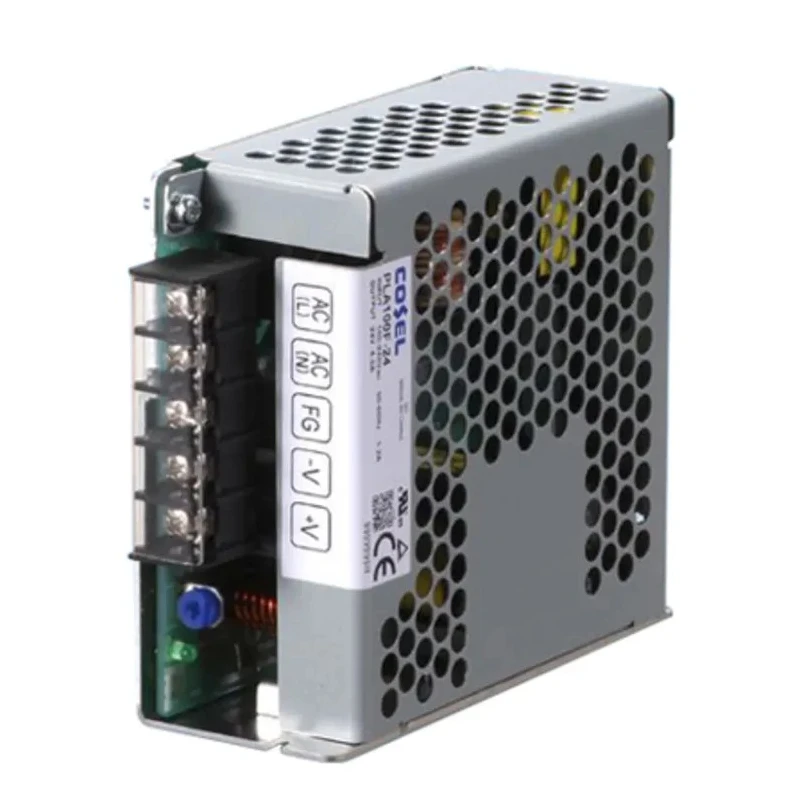

Cosel PJA100F-15 is a closed-frame switching power supply designed for industrial and electronic applications requiring stable 15V DC output at 100.5W power rating. The chassis mount design and compact dimensions make it suitable for space-constrained installations and robust industrial environments.

The power supply operates efficiently with an 86% efficiency rating and supports a universal AC input voltage ranging from 85V to 264V, enabling worldwide compatibility. It offers a single output channel delivering up to 6.7A current and meets critical certifications including CE, cURus, RoHS, and UL, ensuring adherence to safety and environmental standards.

Designed to operate in a wide temperature range from -20°C to 70°C (with derating) the unit includes a harmonic attenuator complying with IEC61000-3-2 Class A to reduce electrical noise and improve power quality. The PJA100F series emphasizes compactness; this unit is 25% smaller than the previous PBA series, providing a low profile solution.

This power supply features low power consumption at no load conditions (1.5W typical) improving energy efficiency. It is engineered for high reliability with a 5-year warranty from Cosel, suitable for applications in industrial machinery, electronic instruments, and control panels.

Single 15V DC output with 6.7A current capability. Universal AC input 85 - 264V AC with derating for operation. High efficiency of 86%, reducing power loss. Compact chassis mounting size: 109mm x 41mm x 97mm (W×L×D). Wide operating temperature range from -20°C to 70°C.

Compliance with CE, cURus, RoHS, UL standards for safety. Harmonic attenuator reduces electrical interference per IEC61000-3-2 Class A. Low no-load power consumption of 1.5W typical at 240V AC input. 5-year Cosel warranty for long-term reliability.

This switching power supply is ideal for industrial automation, instrumentation, manufacturing equipment, and other commercial electronics requiring reliable DC power with universal AC input and compact form factor. Explore more quality power supplies at EnvMart for compatible industrial and electronic applications.
