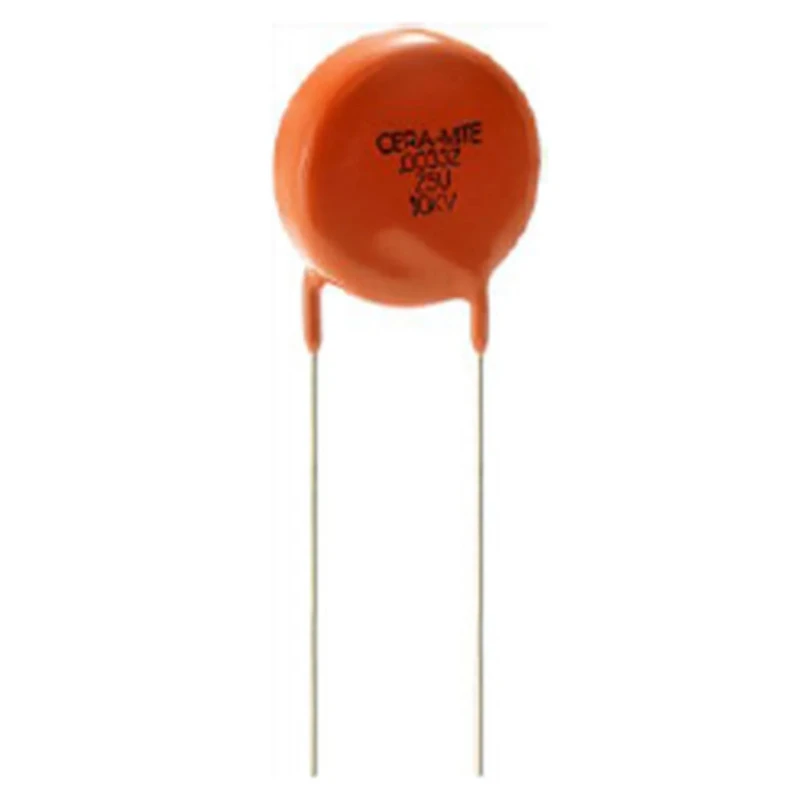

Vishay Single Layer Ceramic Capacitor 4.7 nF 10 kV dc Z5U Dielectric Through Hole Radial Terminal 105°C Max Op. 615R100GAD47

Vishay 615R100GAD47 is a Single Layer Ceramic Capacitor featuring a capacitance of 4.7 nF and rated at 10 kV dc with a Z5U dielectric type.

This through hole mounted capacitor has radial terminals and is designed for operation within a temperature range from -25°C minimum to a maximum of 105°C, making it suitable for demanding environments.

Compliant with RoHS and EC standards, it ensures environmental safety and quality assurance. The component boasts a diameter of 24.9 mm and a dissipation factor of 2%, indicating efficient performance with low energy loss.

The 615R series capacitors are constructed with a silver-plated ceramic disc, coated with flame retardant epoxy resin, enhancing reliability and safety.

These capacitors are particularly suited for applications such as television and monitor circuits, high voltage DC and pulse power supplies, X-ray equipment, and switched mode power supplies (SMPS).

Features a through hole mount and radial terminal type. Operating temperature range from -25°C to 105°C maximum. Complies with RoHS and EC standards ensuring quality and environmental safety. Diameter measured at 24.9 mm suitable for various high voltage applications.

Designed with a dissipation factor of 2% for reduced energy loss. Offers suppression class II reliability for electronic circuits. Constructed with silver plated ceramic disc and flame retardant epoxy coating. Ideal for TV, monitor, X-ray equipment, and SMPS high voltage applications.
