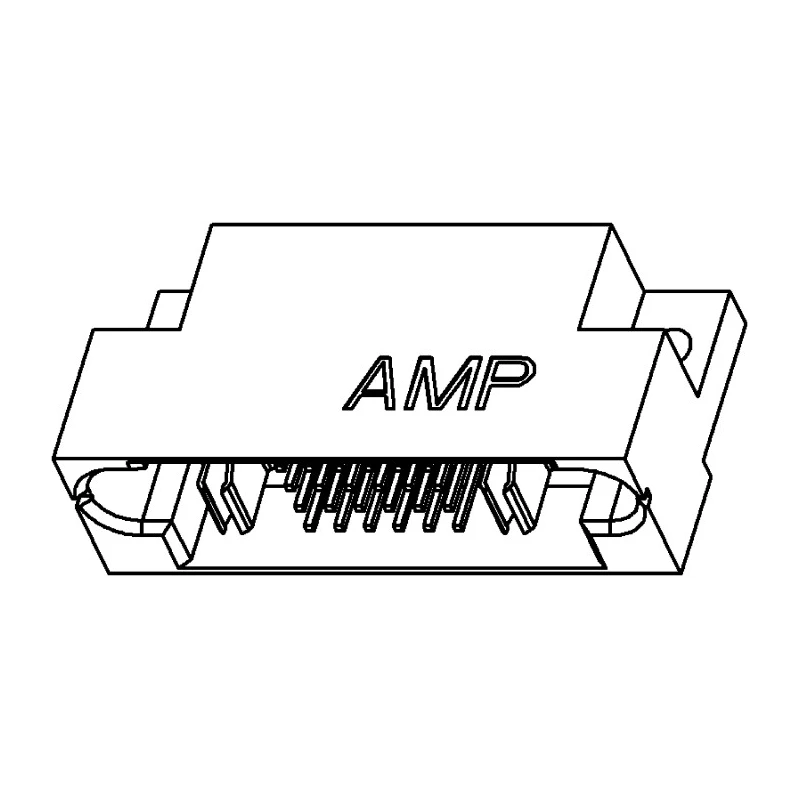

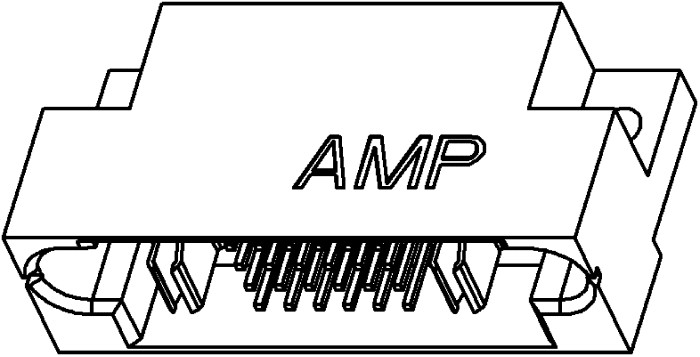

TE Connectivity MULTI-BEAM XL Series Right Angle Through Hole Heavy Duty Power Connector 26-Contact 1 Row 2.54 mm 6450330-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 200V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Copper |
| Series | MULTI-BEAM XL |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Power |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
Key Features
- The connector features 26 contacts arranged in a single row for optimal connectivity.
- It offers a 2.54 mm pitch and a right angle orientation for board mounting.
- Constructed with nylon housing and copper contacts plated with tin for durability.
- Designed for through-hole solder mounting to ensure secure attachment.
- Operating voltage rating of 200V suitable for AC and DC power applications.
- Operates reliably from -55°C up to 105°C environmental temperatures.
- Meets RoHS standards for environmental compliance.
- Compact design supports blind-mateable board-to-board power distribution.
Product Description
TE Connectivity 6450330-1 is a MULTI-BEAM XL Series Right Angle Through Hole Heavy Duty Power Connector designed with 26 female contacts in a single row and 2.54 mm pitch. It supports reliable power distribution for industrial, electronic components, and electrical assemblies operating up to 200 volts.
The connector housing is molded from high-quality nylon and includes molded-in guide pins to enhance blind-mate capabilities while maintaining compact dimensions, suitable for distributed DC power systems. Its contacts are made of copper with tin plating to lower contact resistance and extend operational life.
The product is suited for harsh operating conditions with a temperature range from -55°C to 105°C, and complies with RoHS safety and environmental standards. It supports both AC and DC power connections within the same system and features low mating/unmating forces for ease of assembly and maintenance.
The MULTI-BEAM XL system is mass customizable, allowing exact selection of power and signal contacts. This model uses a solder termination type for through-hole mounting on PCBs, with right angle orientation to optimize board layout.
Applications include power distribution in industrial control systems, electronic instrumentation, telecommunications, and automotive electronics. It meets UL and CSA safety requirements and SSI power connector standards for DPS, MPS, and HPS uses, supporting currents up to 35 Amps.
The connector consists of 26 female contacts arranged in a single row with a pitch of 2.54 mm. Housing is durable nylon, designed for through-hole solder mounting and right angle orientation. Operating temperature range is from -55°C to 105°C suitable for harsh environments.
Contact materials are copper with tin plating to ensure electrical integrity and corrosion resistance. Complies with RoHS environmental standards for safe electronic manufacturing. Designed for AC and DC power in the same connector system, ideal for board-to-board power distribution.
Low mating and unmating force reduces wear and facilitates repeated assembly. Meets UL, CSA, and SSI safety and performance standards including support for up to 35 Amps. Discover the full range of TE Connectivity power connectors at EnvMart for advanced industrial, laboratory, electronics assembly, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this connector is 200V, suitable for both AC and DC power applications.
It operates reliably within a temperature range of -55°C to 105°C, making it suitable for harsh environments.
This connector features 26 female contacts arranged in a single row.
The pitch of the contacts is 2.54 mm, which is standard for many electronic applications.
The housing is made from nylon, while the contacts are constructed from copper and plated with tin for improved electrical integrity.
This model supports through-hole solder mounting, ensuring secure attachment to PCBs.
The connector features a right angle orientation, which optimizes board layout for various applications.
It complies with RoHS environmental standards and meets UL and CSA safety requirements.
The termination type for this connector is solder, designed for through-hole mounting.
It is suitable for power distribution in industrial control systems, electronic instrumentation, telecommunications, and automotive electronics.
The contact gender of this connector is female, designed for wire-to-board connections.
The low mating and unmating force reduces wear and facilitates repeated assembly, enhancing the ease of use during installation and maintenance.
